Warranty – Greenheck Hooded Propeller Fans (463563) User Manual

Page 4

463563 • Exhaust and Supply Hood Shipped in Halves, Rev. 2, September 2008

Greenheck warrants this equipment to be free from defects in material and workmanship for a period
of one year from the purchase date. Any units or parts which prove defective during the warranty
period will be replaced at our option when returned to our factory, transportation prepaid. Motors are
warranted by the motor manufacturer for a period of one year. Should motors furnished by Greenheck
prove defective during this period, they should be returned to the nearest authorized motor service
station. Greenheck will not be responsible for any removal or installation costs.
As a result of our commitment to continuous improvement, Greenheck reserves the right to change
specifications without notice.

Greenheck Catalog Hooded Propeller Roof Fans provides additional

information describing the equipment, fan performance, available

accessories, and specification data.

Phone: (715) 359-6171 • Fax: (715) 355-2399 • E-mail: [email protected] • Website: www.greenheck.com

Warranty

AMCA Publication 410-96, Safety Practices for Users and

Installers of Industrial and Commercial Fans, provides additional

safety information. This publication can be obtained from AMCA

International, Inc. at: www.amca.org.

Step 6: Secure Hood and Birdscreen

(sizes 54-72 only)

Hardware Required:

Hardware Package #816528

#12 x 3/4” Self-drilling Screws with Washers

Quantity: 4 pieces, (2) required per hood and (2) extras

Instructions:

A) With birdscreen and hood installed, locate

the birdscreen clips (5 per hood end panel).

Loosen the fasteners and rotate them 90° so

that they support the birdscreen. Retighten

fasteners.

B) Locate the center birdscreen clip on each

hood end panel. Push hood end panel against

birdscreen. Install the #12 x 3/4” self-drilling

screw with washer (1 per end panel) thru

birdscreen clip into birdscreen frame.

(see detail 6).

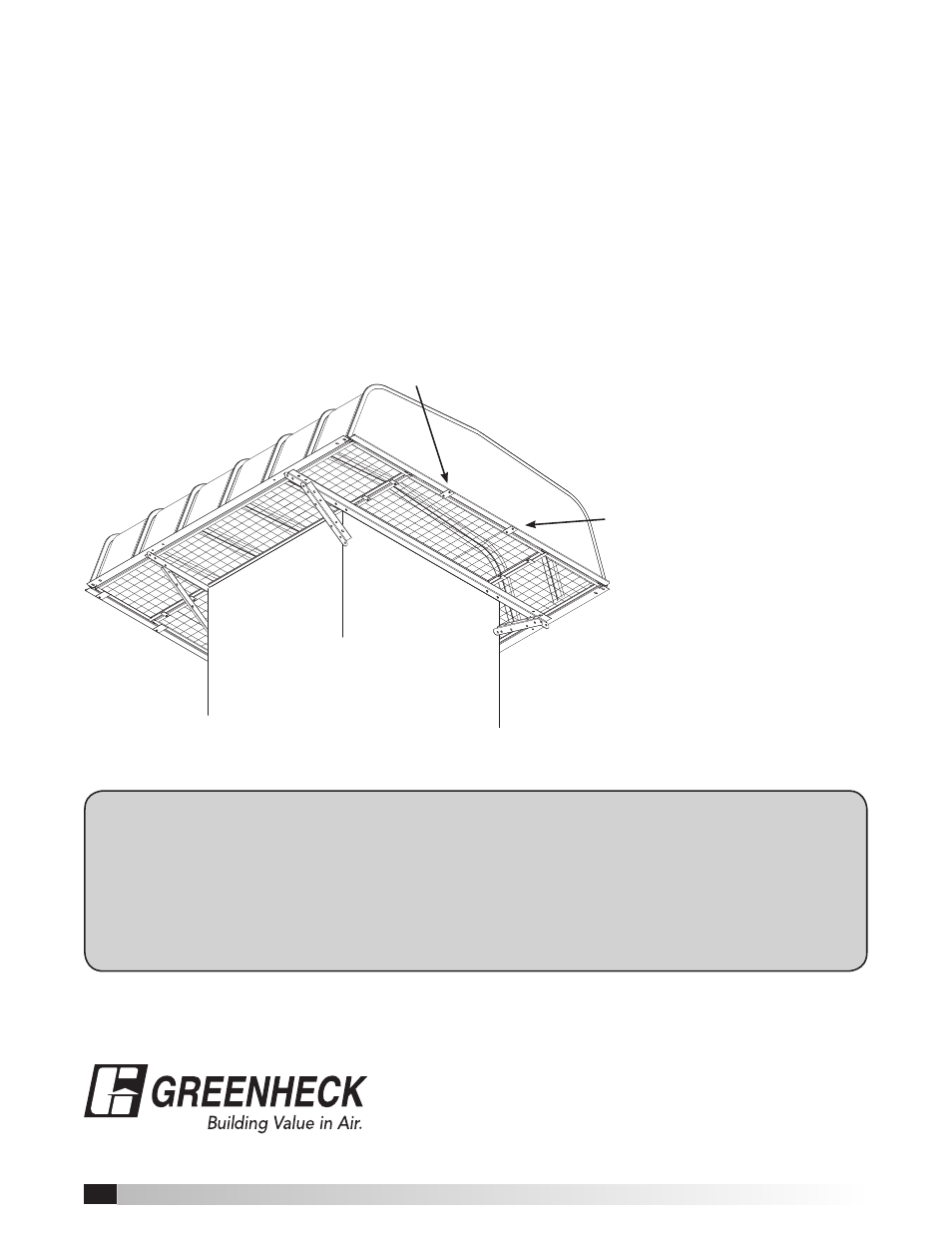

Detail 6

#12 x 3/4”

Self-drilling

Screw

Hood Clip

(5) Per End Panel

(Sizes 54 x 72)
