3
Hinge Kit

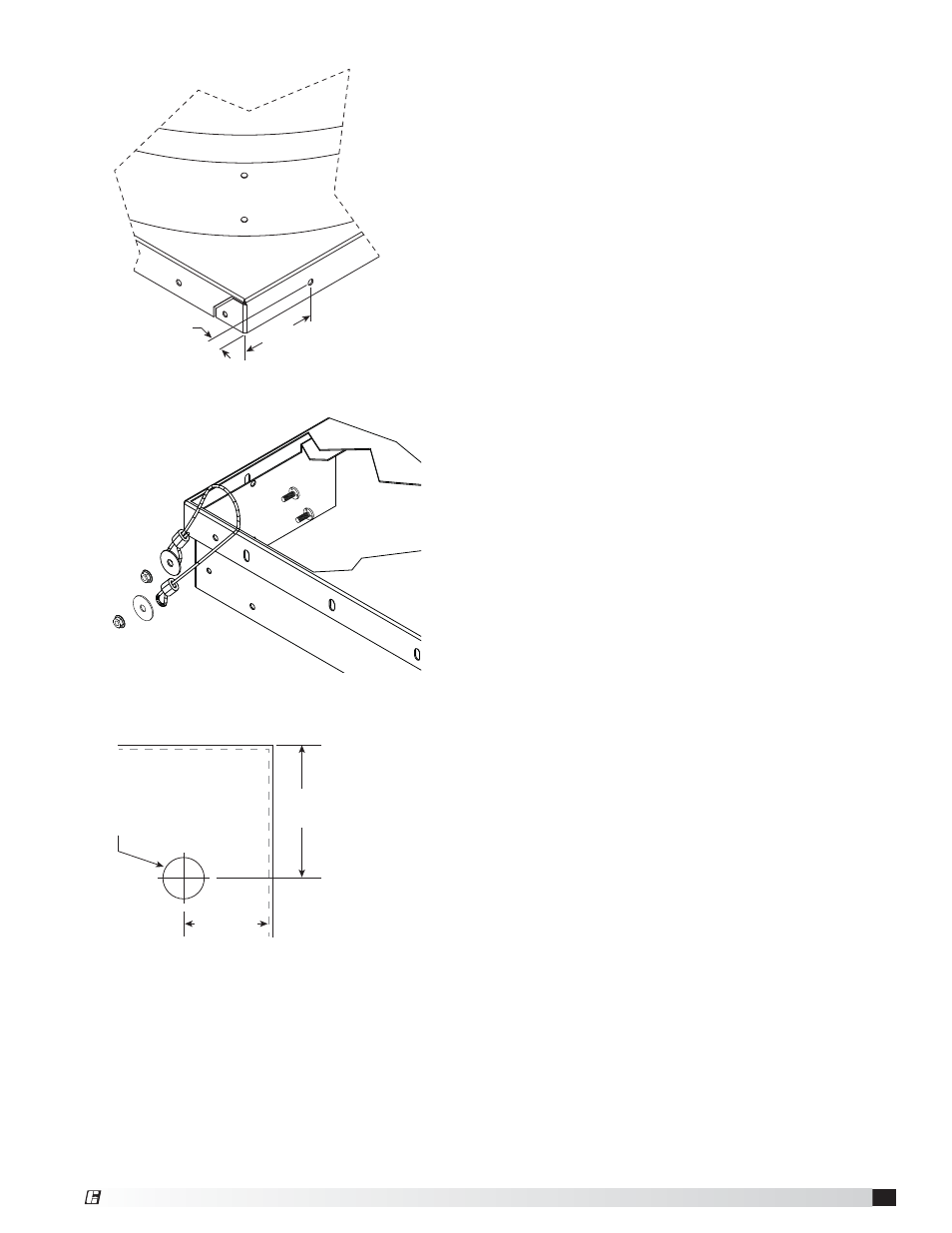

Installing the stop cable
1. Check one side of curb cap for factory-punched
hole at or near dimensions indicated by FIGURE
5. If this hole exists, it can be used as the upper
connection point for the stop cable. If not, a 5/16
inch hole needs to be drilled in the curb cap at the
dimensions indicated in FIGURE 5.
2. Attach cable to curb cap as shown in FIGURE 6.
3. Drill a 5/16 inch hole in the curb at the dimensions
indicated in FIGURE 7.
4. Attach the stop cable to curb and curb cap with
1/4 inch -20 x 3/4 inch bolts as shown in FIGURE 6.
Must include 1-1/4 inch fender washer between
bolt head and cable!
FIGURE 5
4 inches
7/8 inch
FIGURE 7
2 inches
2-3/4
inches
5/16 inch diameter
FIGURE 6
®
