Installation 5
Option 2 - Installation Without Using a PCI Slot
The Direct Motherboard Cable can be used to connect the
WebReboot to a server if no PCI slots are available. To use this
installation type, please continue to Installation Without PCI
Slot on page 8.

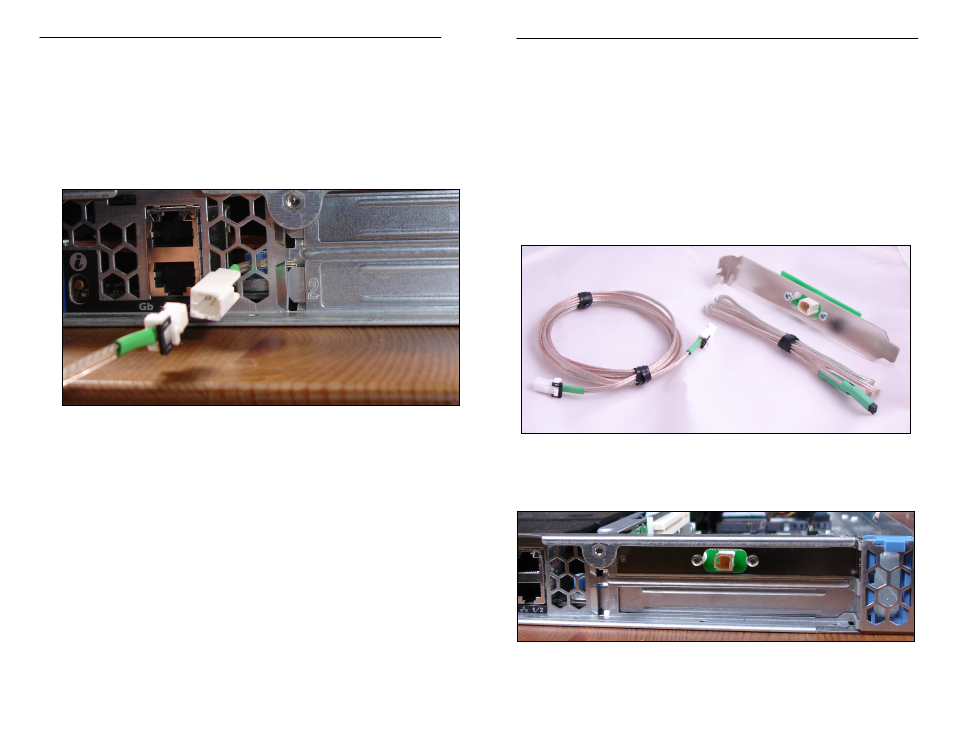

Figure 2 – Installation Without Using a PCI Slot
6 Installation
Installation With PCI Slot
1. This installation requires the following parts, as shown below in
Figure 3:
•
WebReboot Cable
•
External PCI Slot Cover Adapter
•
Motherboard Cable
Figure 3 – Parts Required for PCI Slot Installation
2. First, install the External PCI Slot Cover Adapter in an available
PCI slot in your server, as shown in Figure 4 and Figure 5.
Figure 4 – External View of PCI Slot Cover Adapter Installed
