Chapter 2 Installation Instructions

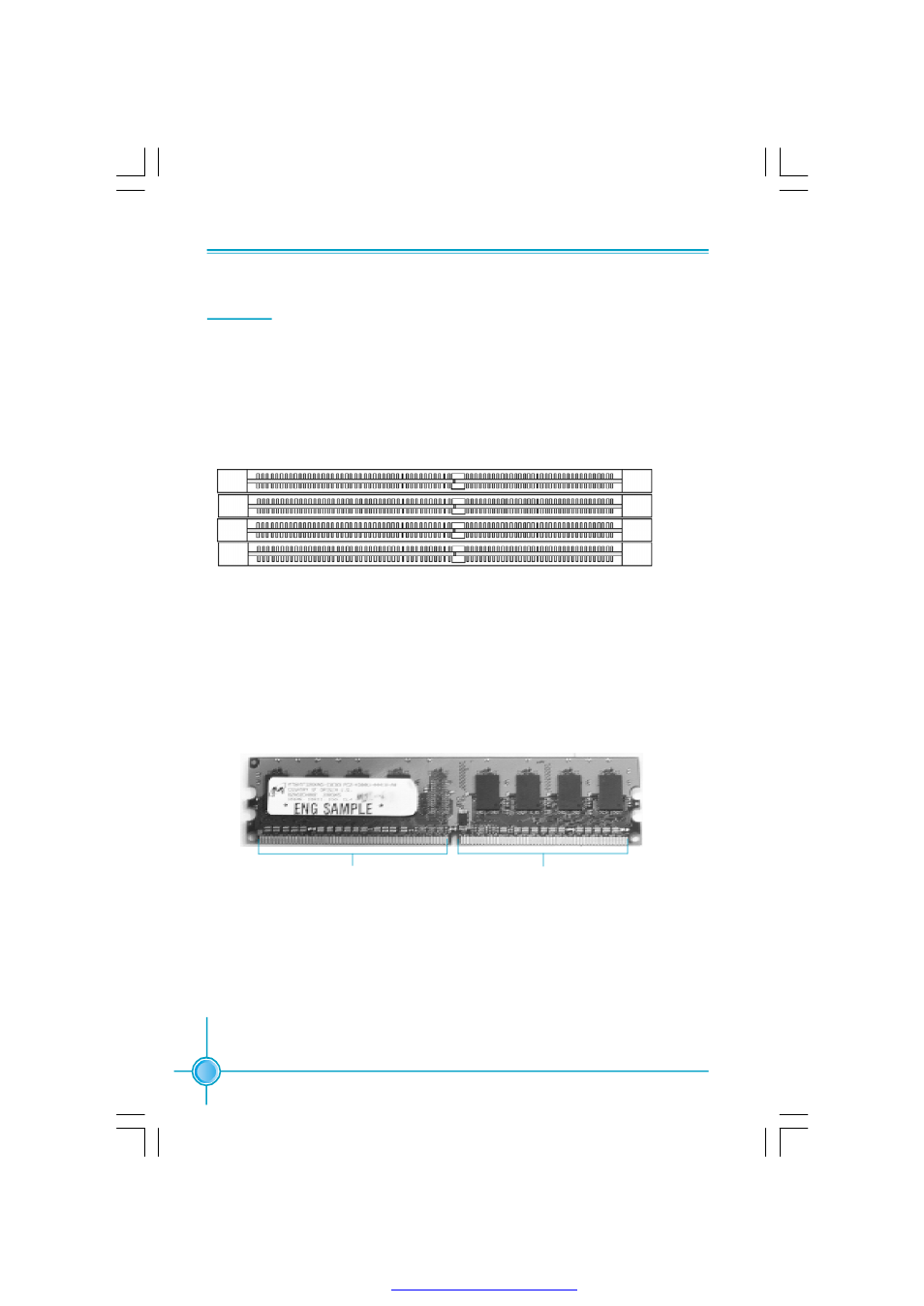

Memory

This motherboard includes four 240-pin slots with 400/533/667 MHz Dule Chan-
nel DDR2 DRAM interface. All DIMMs in a system must be of the same type.You
must install at least one memory module to ensure normal operation. If you
install two or more modules, they must be the same speed. Mixing memory
modules from different manufactures are not recommended.

Installation of DDR2 Memory

1. There is only one gap in the center of the DIMM slot, and the memory module

can be fixed in one direction only.

2. Align the memory module to the DIMM slot, and insert the module verti-

cally into the DIMM slot.

DIMM1

DIMM2

DIMM3

DIMM4

128 Pins

112 Pins
