Fireplace Installation
fasteners. attach supplied wall
cover brackets to the top and the
bottom of fireplace to cover the
gap on the dry wall (Figure 8).
⑬
Attach fireplace frame as
shown in Figure 4 .
Bathroom Installation
This firebox must be protected
by a GFI receptacle or circuit
for bathroom use. If receptacle
Fireplace
Junction
Box
White wire (n)
Black wire (L)
Green wire (G) Green wire (G)
Black wire (L)
White wire (n)
120 V Power
supply
(Breaker Panel)
is used it must be readily
accessible.
This unit is an electrical appliance
that is not watertight and must
be installed as to prevent water
from entering the unit to prevent
electrical shock. This unit must
be installed away from showers,
tubs, etc.
Never locate fireplace where it
may fall into a bathtub or other
water containers. Keep towels
and other combustible materials
three (3) feet (0.9 m) away from
the bottom of the unit.
The controls are located on the
right hand side of the fireplace
(Figure 9).
add
wood
screws
here

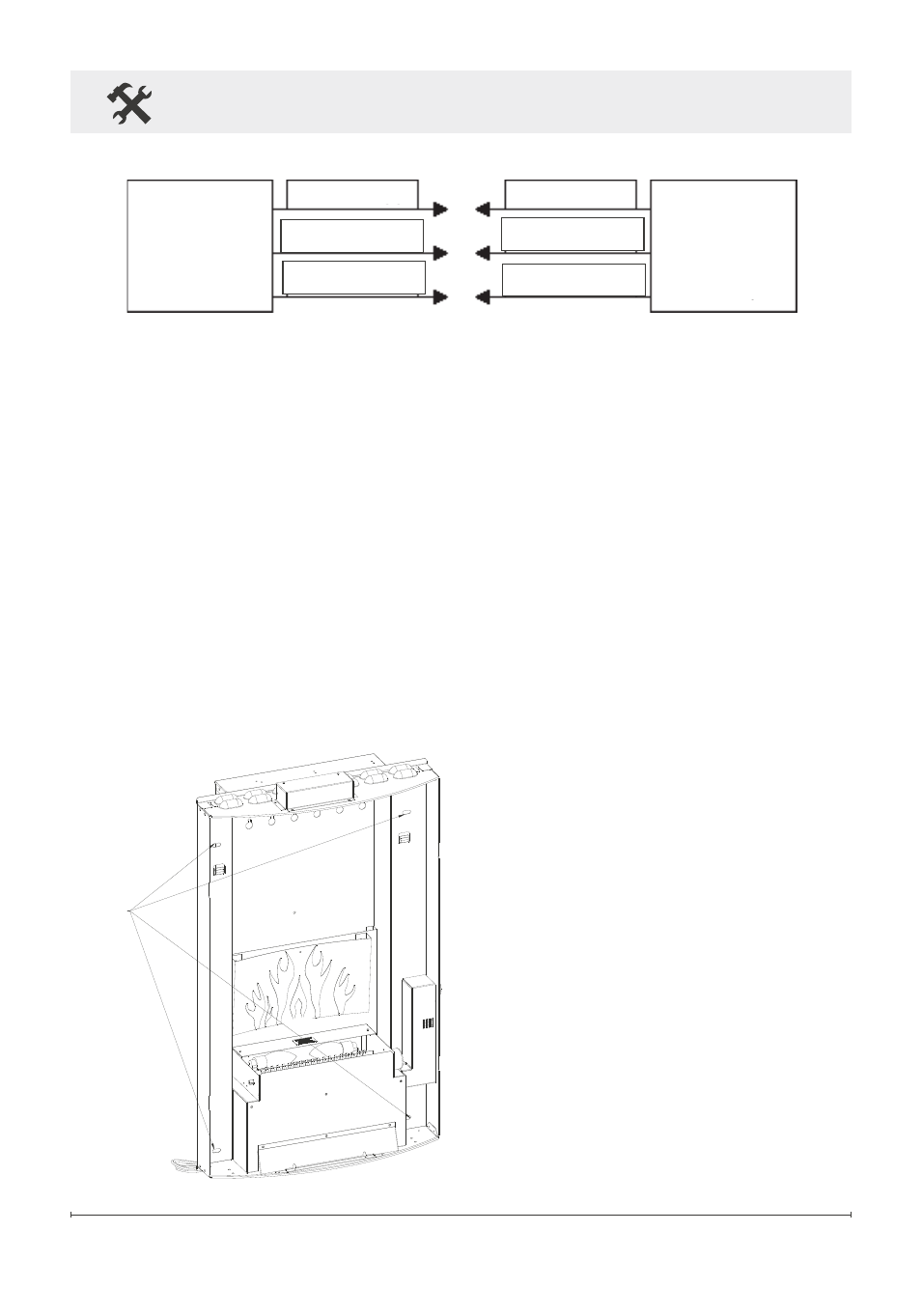

Figure 8
