12 www.dimplex.com
④
Remove the outer jacket and
strip the individual conductor from
the end.
⑤
Loosen the screw securing
the junction box cover and
remove the cover.

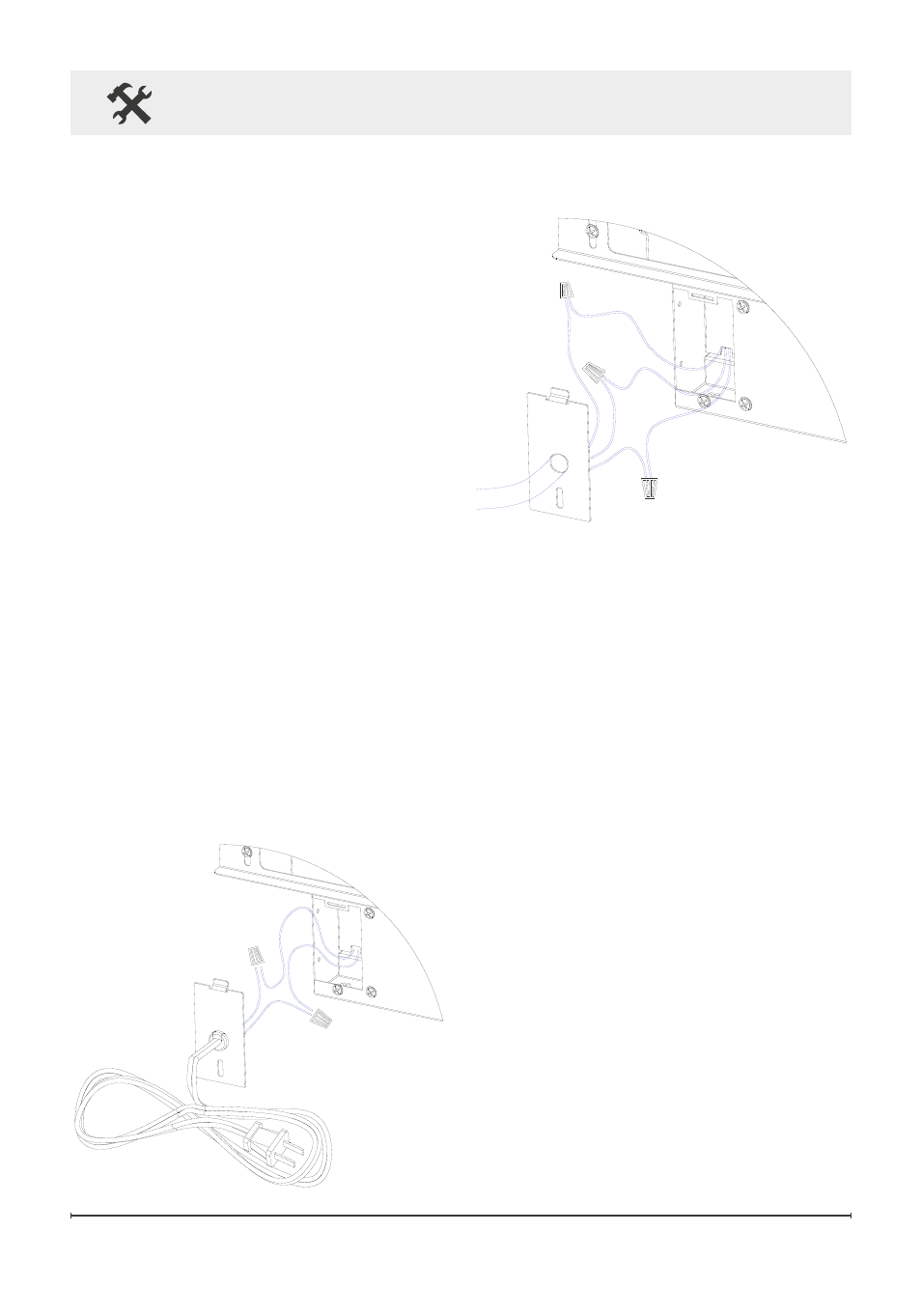

⑥
Take the cables out from the
junction box, loosen the two (2)
wire nuts and remove the cord
set (Figure 6).
⑦
Route the power supply wire
through the knockout on supplied
alternative junction box cover
and secure with a wire clamp (not
supplied) (Figure 7).
⑧
Connect the black wire (live)
from the unit to the black wire
from power supply (Figure 7).
Figure 6
Figure 7
Fireplace Installation
⑨
Connect the white wire
(neutral) from the unit to the white
wire from power supply
(Figure 7).
⑩
Connect the green wire
(ground) from the unit to the
green wire from power supply
(Figure 7).
⑪
Place all connectors inside
the unit and secure the junction
box cover to unit. Ensure that the
cable clamp grips only the jacket
of service cable.
!
NOTE: all wiring must be
completed prior to installing
the unit into the wall.
⑫
Place unit in position in the
opening, push straight in and
attach unit to studs using no. 10
