Foxconn G45M - Manual (Page 24)

17
2
17

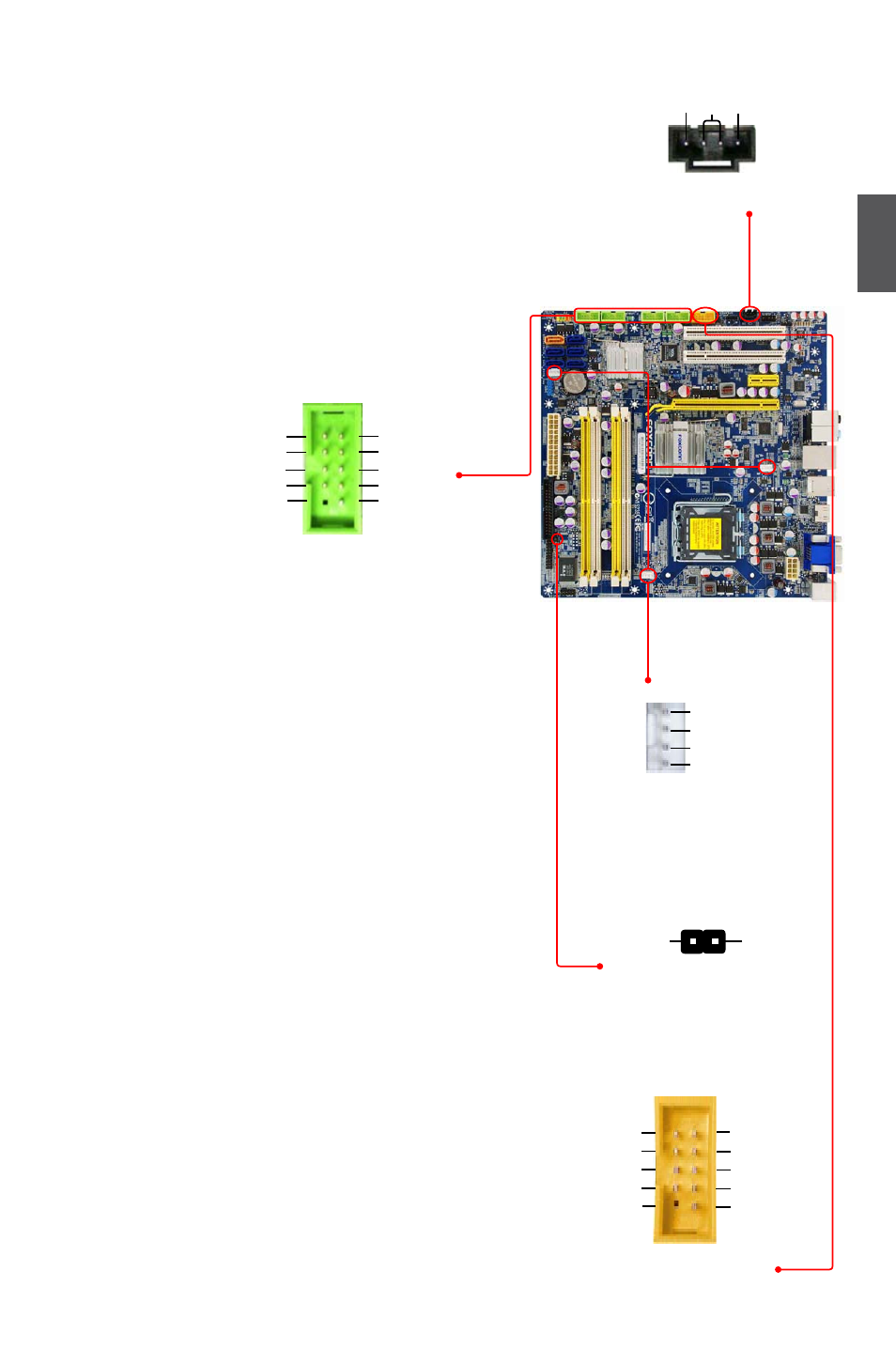

Audio Connector : CD_IN
CD_IN is a Sony standard audio connector, it can be
connected to a CD/DVD-ROM drive through a CD/DVD
audio cable.
USb Connectors : f_USb1/2/3/4
In addition to the four USB ports on the rear panel, this
product also provides four 10-pin USB headers on its
motherboard. By connecting through USB cables with
them, user can quickly expand another eight USB ports
on the front panel.
fan Connectors : CPU_fAN, SYS_fAN,
Nb_fAN
There are three main fan headers on this motherboard.
The fan speed can be controlled and monitored in “PC
Health Status” section of the BIOS Setup. These fans
can be automatically turned off after the system enters
S3, S4 and S5 sleeping states.
Chassis Intrusion Alarm Header : INTR
The connector can be connected to a security switch
on the chassis. The system can detect the chassis
intrusion through the function of this connector. If
eventually the chassis is closed, the system will send
a message out.
1394a Connector : f_1394 (only available in
G45M-S)
The 1394a expansion cable can be connected to either
the front (provided that the front panel of your chassis
is equipped with the appropriate interface) or real panel
of the chassis.
F_USB 1/2/3/4
NC
GND
VCC
D+
D-
D+
GND
D-
VCC
EMPTY
1 2
10 9
CD_IN
CD_L GND CD_R
1
CPU_FAN / SYS_FAN /
NB_FAN
GND
POWER
SENSE
CONTROL 1
INTR
GND INTRUDERJ
1
GND
+12V
TPA-
TPB-
GND
TPB+
+12V
GND
TPA+
EMPTY
1 2
10 9
F_1394
