2
15

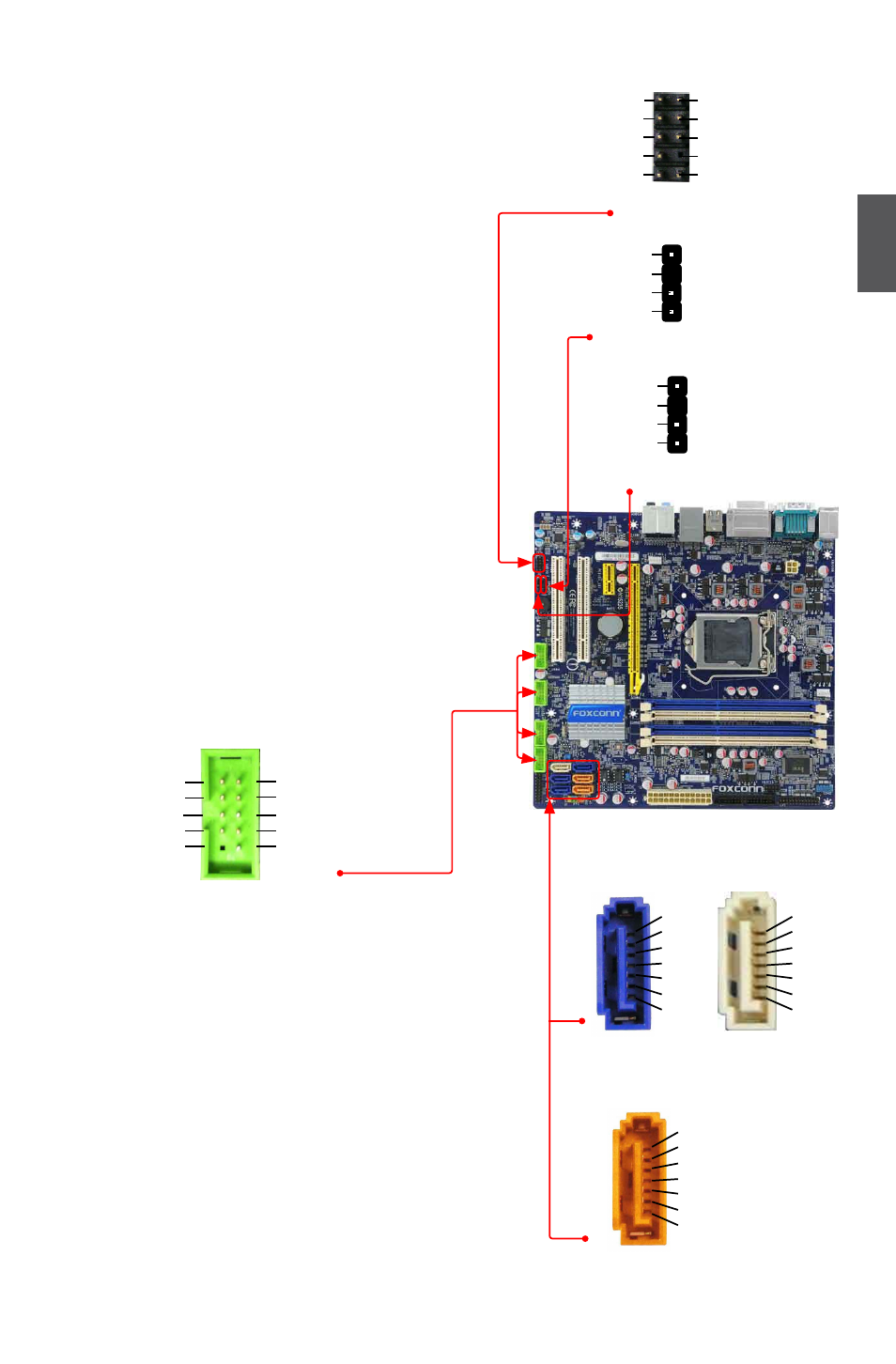

Audio Connector : f_AUDIo
The audio connector supports HD Audio standard. It
provides the Front Audio output choice.
S/PDIf oUT Connector : SPDIf_oUT
The connector is used for S/PDIF output.
Speaker Connector : SPeAKeR
The speaker connector is used to connect speaker
of the chassis.
USb Connectors : f_USb1/2/3/4
In addition to the USB ports on the rear panel, this
product also provides 10-pin USB headers on its
mother�oard. By connecting through USB ca�les
with them, user can quickly expand another USB
ports on the front panel.
Serial ATA Connectors : SATA_1/2/3/4/5/e_SATA
The Serial ATA connector is used to connect with
SATA Hard Disk or CD devices which support this
feature. The SATA_3/4/5/E_SATA allows up to
300MB/s data transfer rate, the SATA_1/2 support
SATA 3.0 specification, and allows up to 600MB/s
data transfer rate.
GND
TX+
TX-
GND
RX-
RX+
GND
1
SATA_3/4/5
A_MIC2_L
A_MIC2_R _R
A_LINE2_L
SENSE_SEND
SENSE1_RETURN
PRESENCEJ
EMPTY
SENSE2_RETURN
AUD_GND
1 2
10 9
F_AUDIO
A_LINE2_R
+5V
EMPTY
SPDIF_OUT
GND
1
2
3
4
SPDIF_OUT
NC
PWR
EMPTY
SPEAKER
SPKJ
1
2
3
4
F_USB 1/2/3/4
NC
GND
VCC
D+
D-
D+
GND
D-
VCC
EMPTY
1 2
10 9
GND
TX+
TX-
GND
RX-
RX+
GND
1
E_SATA
GND
TX+
TX-
GND
RX-
RX+
GND
1
SATA_1/2
