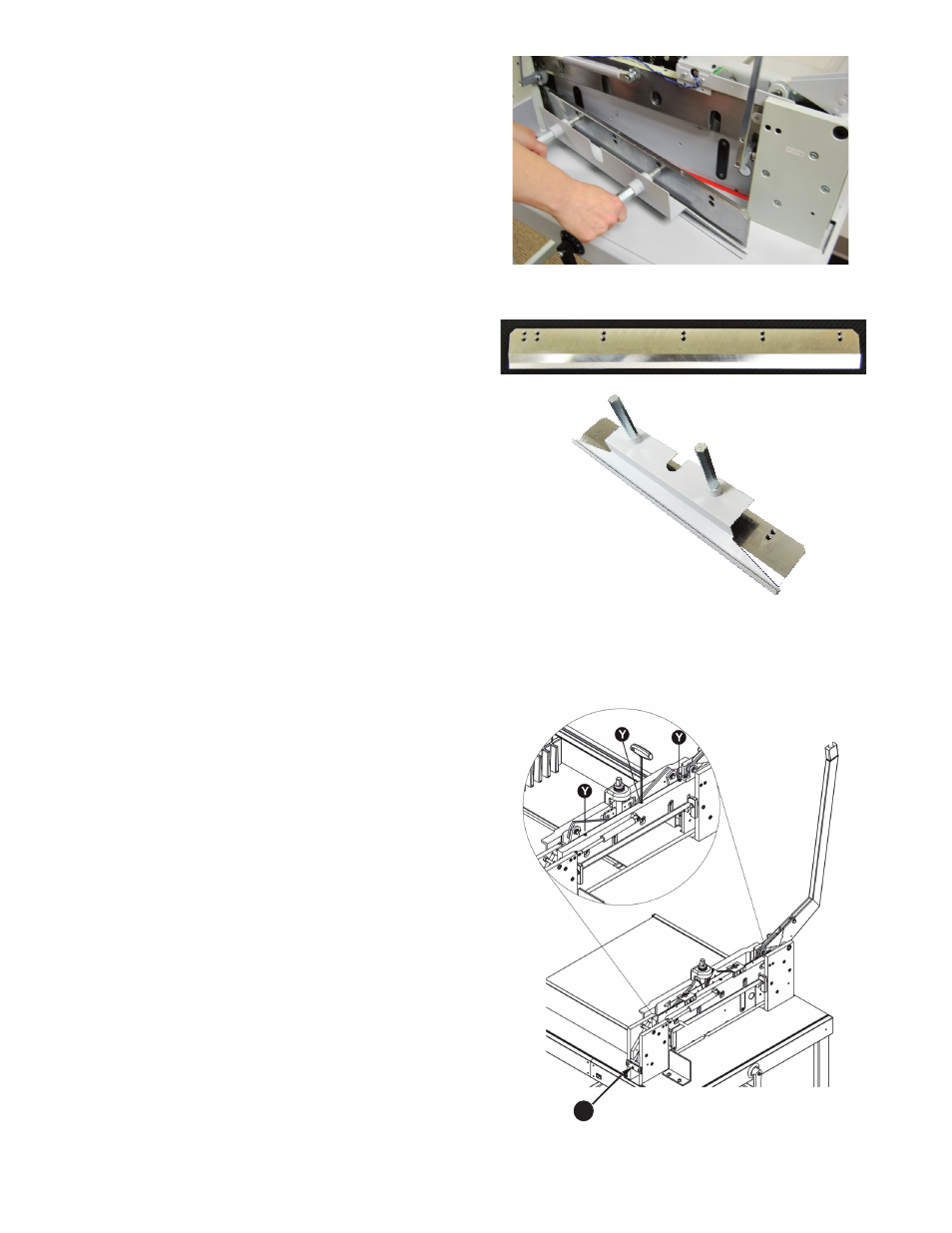

15. Slowly turn the handles of the safety tool slightly
to the left, just enough to release the blade from
the machine. NOTE: The blade and safety tool are
heavy.
16. Remove the blade and safety tool together.
17. Carefully remove the old blade from the blade
change safety tool. Set it on a flat surface and
unscrew the handles. Cap the old blade with a
protective pad to prevent injury.
18. Place the new blade with the beveled cutting edge
facing up, and the screw holes at the top, as shown
here. Remove the protective pad from the new
blade.
To attach the blade change tool, place it over the
blade and screw the handles into the lower set of
screw holes. Then reverse the procedure to install
the new blade.
19. After installing the new blade, it will need to be ad-
justed for proper positioning and cutting depth.
20. Carefully move the blade to the cutting stick by low-
ering the blade lever arm. NOTE: Keep hands and
objects out of the path of the blade.
21. Turn the blade adjustment screw (X) to the right
(-) until you have a visible ray of light between the
blade and the cutting stick.
22. Adjust the blade to touch the cutting stick evenly by
using the three screws at the top (Y).
23. Raise the blade lever arm to the top position and
lock it. Then make a trial cut with a single sheet of
paper. If the paper is not cut through completely, the
blade must be adjusted using the screws (X) and/
or (Y).
NOTE: The three (Y) screws are for horizontal
adjustment and the (X) screw is for minor up-down
adjustment.
24. Reassemble the blade housing cover, the front
safety cover, and reattach the spindle handwheel,
the lever arm handgrip and the safety gadget.
