52

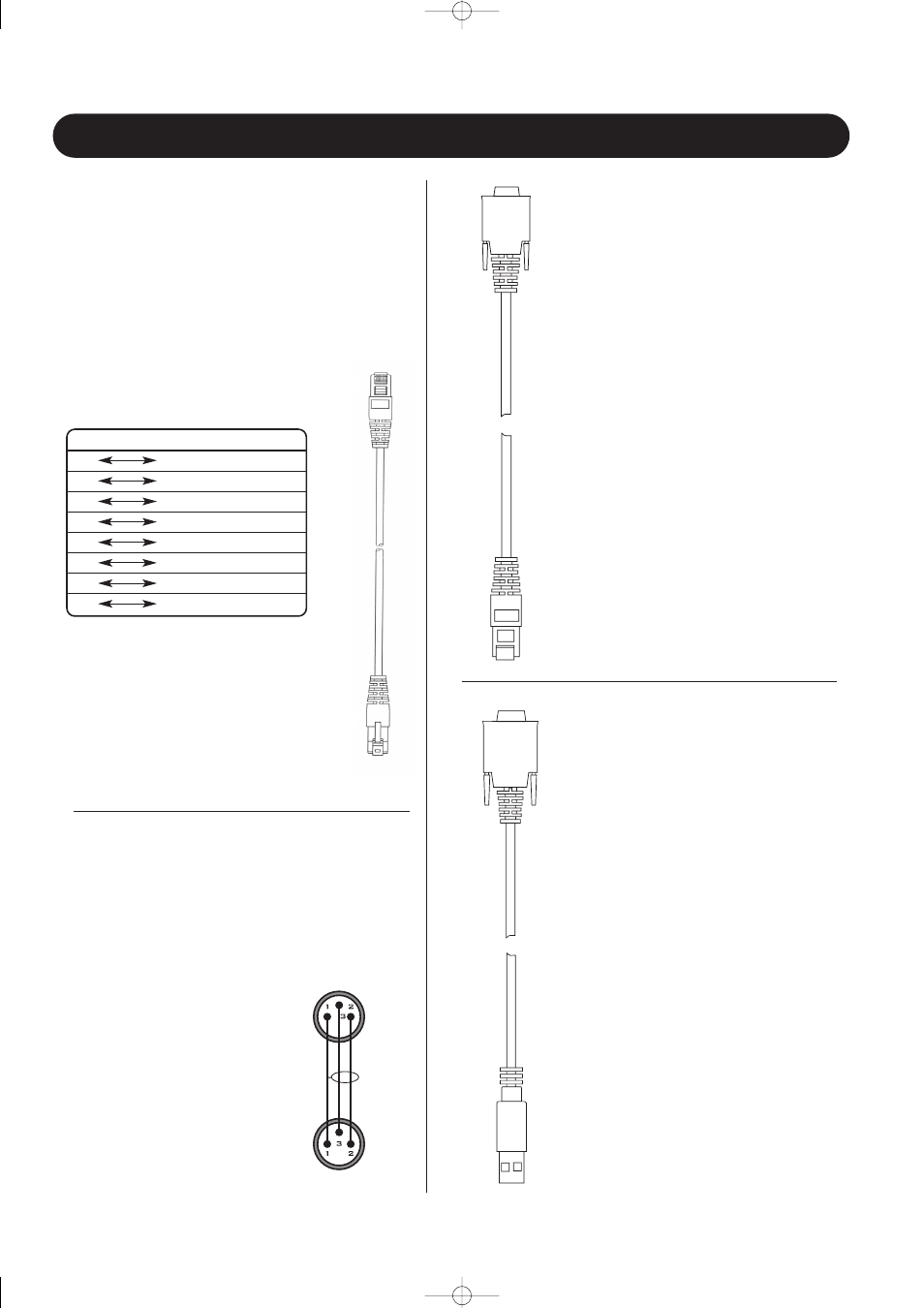

CABLES
TC LINK Standard Cat-5 cables
Maximum Cable Length : 15 meter.
Cable type
: Shielded Ethernet Cable
Category 5.
Connector type
: RJ45
This connection is carrying Digital audio (24 bit) and
network control information.
AES/EBU Standard cables
Maximum Cable Length: 100 m
Cable type:
110 Ohm
Connector type:
XLR
P1
P2
P1
P2
Color
1
1
Brown
2
2
White/Brown
3
3
Green
4
4
White/Blue
5
5
Blue
6
6
White/Green
7
7
Orange
8
8
White/Orange
Pin 1 - Pin 1 (Ground)
Pin 2 - Pin 2 (Hot)
Pin 3 - Pin 3 (Cold)
XLR - XLR
Serial to Cat-5 cable
- included with the AIR SOFT and PC-IP.
This is a proprietary cable with build in
electronics for use with AIR Systems
only !
USB to COM 9pin
- NOT included with AIR SOFT or PC-IP.
Use this type of converter in
conjunction with the Cat5 to Serial cable
described above if your computer has a
USB connection only and no serial port.
