13
SETUPS

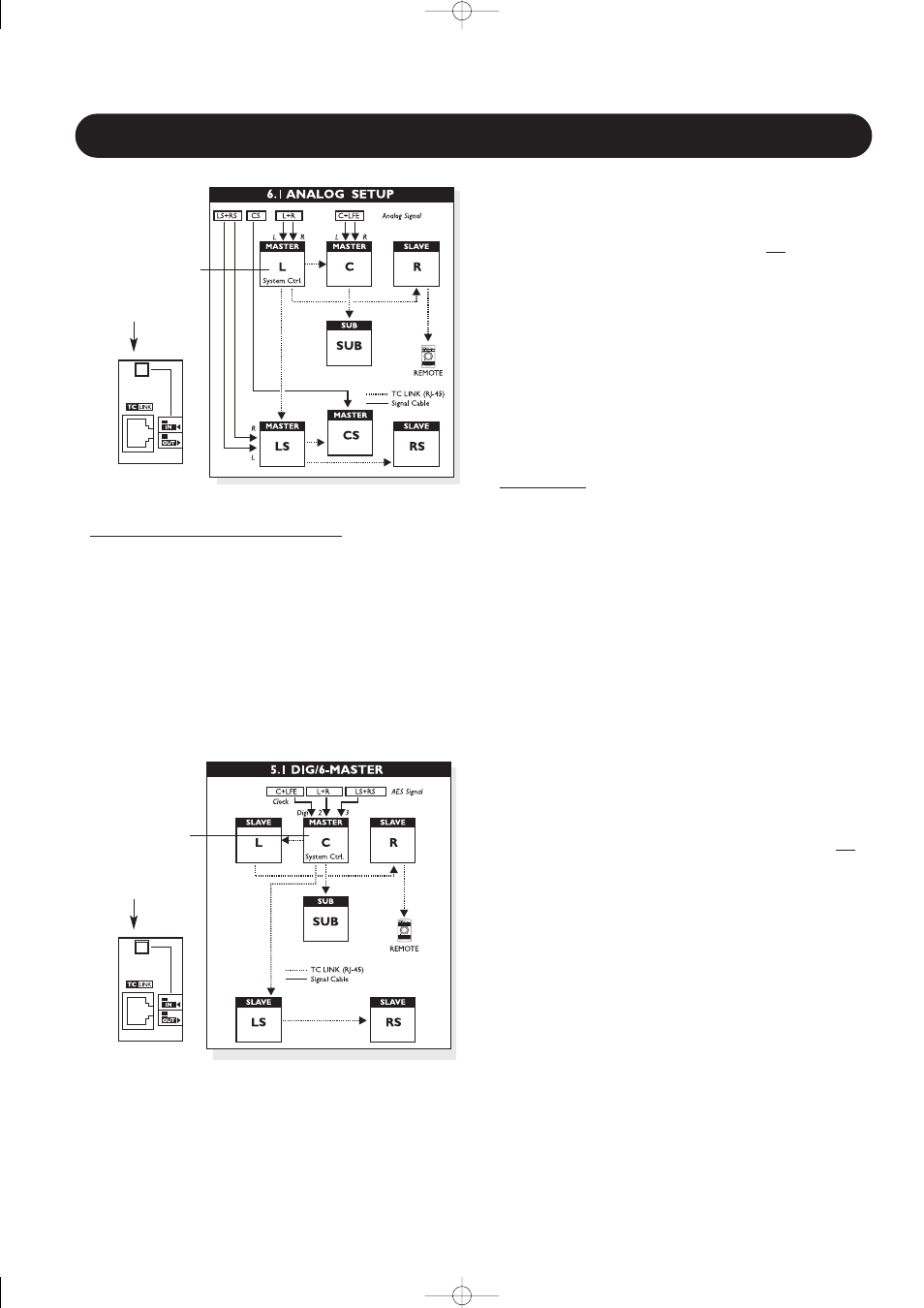

6.1 Analog Setup
This illustration shows how to connect a 6.1 Analog
setup
• Left is set as System Controller by leaving out the TC
Link button on the rear panel.
• Left monitor receives both the Left and Right signal. The
Right monitor is fed via the TC LINK RJ-45 connection
form Left to Right.
• Center monitor receives both Center and LFE signal. The
LFE monitor is fed via the TC LINK RJ-45 connection
from Center to LFE.
• Left Surround monitor receives both LS and RS signal.
The RS monitor is fed via the TC LINK RJ-45 connection
from LS to RS.
• The Center Surround monitor receives only Center
Surround signal.
• Center Chain: From software 1.10 it is possible to
connect one or more Center Chain monitors.
Channels must be connected as follows:
- Left channel to Left Input on Left monitor.
- Right channel to Right Input on Left monitor.
- Center channel to Left Input on Center monitor.
- LFE channel to Right Input on Center monitor.
- Left Surround channel to Left Input on Left Surround
monitor.
- Right Surround channel to Right Input on Left
Surround monitor.
To set a Master
monitor as
System Controller
the TC Link
button on the rear
panel MUST be in
out-position.
To set a Master
monitor as
System Controller
the TC Link
button on the rear
panel MUST be in
out-position.
5.1 Dig/6 - Master
This is a 5.1 digital setup with Bass Management as an
option. The setup requires one Master monitor with the
optional Digital AES/EBU Input Card installed, four
Slave monitors (or Masters set as Slave) and one Sub.
• Center monitor is set as System Controller by leaving out
the TC Link button on the rear panel.
• Center monitor receives all 6 channels on the three
AES/EBU connections.
- Center and LFE on the monitors Digital IN connection.
- Left and Right on the I/O cards Digital IN no. 2.
- LS and RS on the I/O cards Digital IN no. 3.
• Right, Left, Sub, LS and RS receives signal via TC LINK
RJ-45 connections from the Center Master monitor.
• Clock MUST be sent on the AES connection feeding
Center/LFE channels (or on BNC).
• With Bass-management “off” only the LFE signal is fed to
the Sub.
• With Bass-management activated, Low Frequency
information below the set Cross-over frequency from the
5 main channels is extracted and distributed to the Sub
where it is summed with the LFE channel.
• The Remote and/or AIR Soft, can be connected to any
available TC LINK Out connection.
• With Bass-management “off” only the LFE signal is fed to
the Sub.
• With Bass-management activated, Low Frequency
information below the set Cross-over frequency from the
5 main channels is extracted and distributed to the Sub
where it is summed with the LFE channel.
• The Remote and/or AIR Soft, can be connected to any
available TC LINK Out connection.
