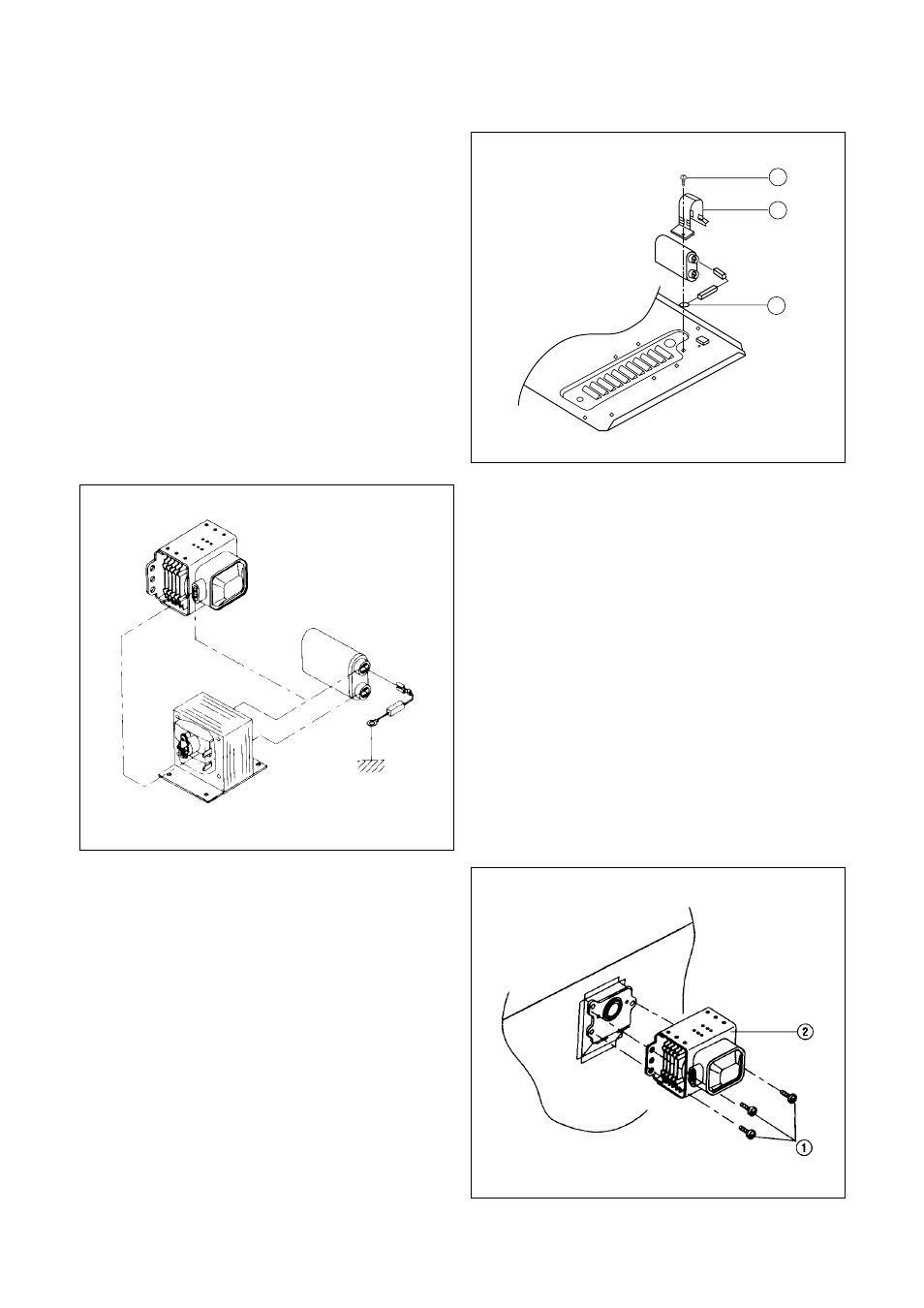

6. To remove high voltage capacitor
(1) Remove a screw ¤ which secure the grounding
ring ring terminal of the H.V. diode ¤Ł and the
capacitor holder ¤Ø .
(2) Remove the H.V. diode ¤Ł from the capacitor ¤Ø .
(4) Reverse the above steps for reassembly.
High voltage circuit wiring
7. To remove magnetron
(1) Remove four screws ¤ which secure the
magnetron ¤Ł .
(2) Remove the magnetron ¤Ł .
(3) Reverse the above steps for reassembly.
18
1
2
3
Magnetron
H.V. Capacitor
H.V. Transformer
H.V. Diode
