16
(1) Remove the gasket door ¤ from door plate ¤Œ .
(2) Remove the barrier screen inner ¤º from door plate ¤Œ .
(3) Remove the door frame ¤Ł from door plate ¤Œ .
(4) Remove the stopper hinge top ¤Ø from door plate ¤Œ .
(5) Remove the spring ¤ and the hook ¤ .
(6) Remove the barrier screen outer ¤ from door frame ¤Ł .
(7) Remove the above steps for reassembly.

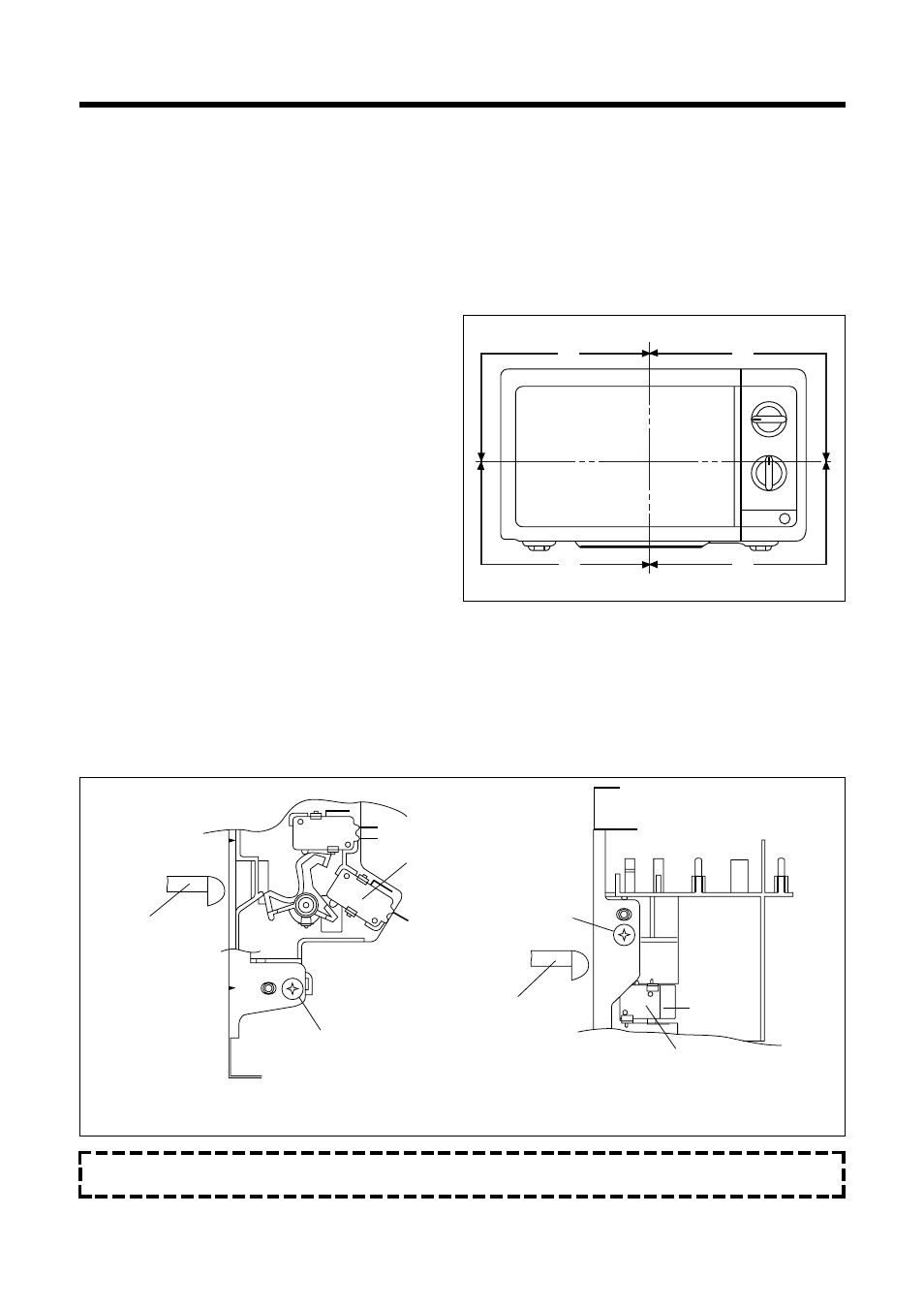

4. Method to reduce the gap between the door seal and the oven front surface.
(1) To reduce gap located on part ‘A’.
1) Loosen two screws on stopper hinge top, and
then push the door to contact the door seal to
oven front surface.
2) Tighten two screws.
(2) To reduce gap located on part ‘B’.
1) Loosen three screws on bottom hinge, and then
the door to contact the door seal to oven front
surface.
2) Tighten three screws.
(3) To reduce gap located on part ‘C’. (See Fig. A)
1) Loosen a screw on the interlock switch assembly located at the bottom of the oven body.
2) Draw the interlock switch assembly inward as possible to engage with hook on the door bottom.
3) Tighten a screw.
(4) To reduce gab located on part ‘D’.(See Fig. B)
1) Loosen a screw on the interlock switch assembly located at the top of the oven body.
2) Follow step (3) 2) and 3).
NOTE : A small gab may be acceptable if the microwave leakage does not exceed 4mW/cm 2 .
A D
C B
Hook
Secondary
Interlock
Switch
Mounting
Screw
Hook
Primary
Interlock
Switch
Fig. A Fig. B
Mounting Screw
