DURCO BX2001 USER INSTRUCTIONS ENGLISH 9-13
15
Item No. Description Qty. Carbon Steel Stainless Steel
1 Body 1 ASTM A216 Gr. WCB ASTM A351 Gr. CF-8M
2 Disc 1 ASTM A351 Gr. CF-8M (ENC) ASTM A351 Gr. CF-8M (ENC)
3 Shaft 1 ASTM A564 Type 630 17-4 SS ASTM A564 Type 630 17-4 SS
4 Pin 1 ASTM A564 Type 630 17-4 SS ASTM A564 Type 630 17-4 SS
5 Bearing * PTFE/Fiberglass to 400˚F PTFE/Fiberglass to 400˚F
316 SS Chrome Plated above 400˚F 316 SS Chrome Plated above 400˚F
6 Thrust Bearing 2
ASTM Type 630 17-4 SS to 600˚F ASTM Type 630 17-4 SS to 600˚F
ASTM A479 Type XM19 SS above 600˚F ASTM A479 Type XM19 SS above 600˚F
7 Thrust Washer 1
ASTM Type 630 17-4 SS to 600˚F ASTM Type 630 17-4 SS to 600˚F
ASTM A479 Type XM19 SS above 600˚F ASTM A479 Type XM19 SS above 600˚F
8 Packing Set 1
PTFE Cup and Cone to 400 Deg. F PTFE Cup and Cone to 400 Deg. F
Grafoil*** above 400˚F Grafoil*** above 400˚F
9 Gland 1 303 SS 303 SS
10 Adjuster 1 ASTM A351 Gr. CD4MCu ASTM A351 Gr. CD4MCu
11 Stud-Adjuster 2 B8M3 to 400˚F — Gr. B-7 above 400˚F B8M3 to 400˚F — Gr. B-7 above 400˚F
12 Nut-Adjuster 2 Gr.8 to 400˚F — Gr. 2H above 400˚F Gr.8 to 400˚F — Gr. 2H above 400˚F
13 Ground Spring 1 302 SS 302 SS
14 Retainer Ring 1 ASTM A515 Gr. 70 Carbon Steel ASTM A240 Type 316 SS
•15 Lock Ring 1 Viton A** to 400˚F — Inconel above 400˚F Viton A** to 400˚F — Inconel above 400˚F
•16 Seat 1 Inconel X750 - Others as specified Inconel X750 - Others as specified
•17 Gasket 3 Grafoil*** Grafoil***
18 Seat Ring 1 ASTM A515 Gr. 70 Carbon Steel ASTM A240 Type 316 SS
19 Jamb Nut 1 300 Series SS 300 Series SS
Apex
SECTION V

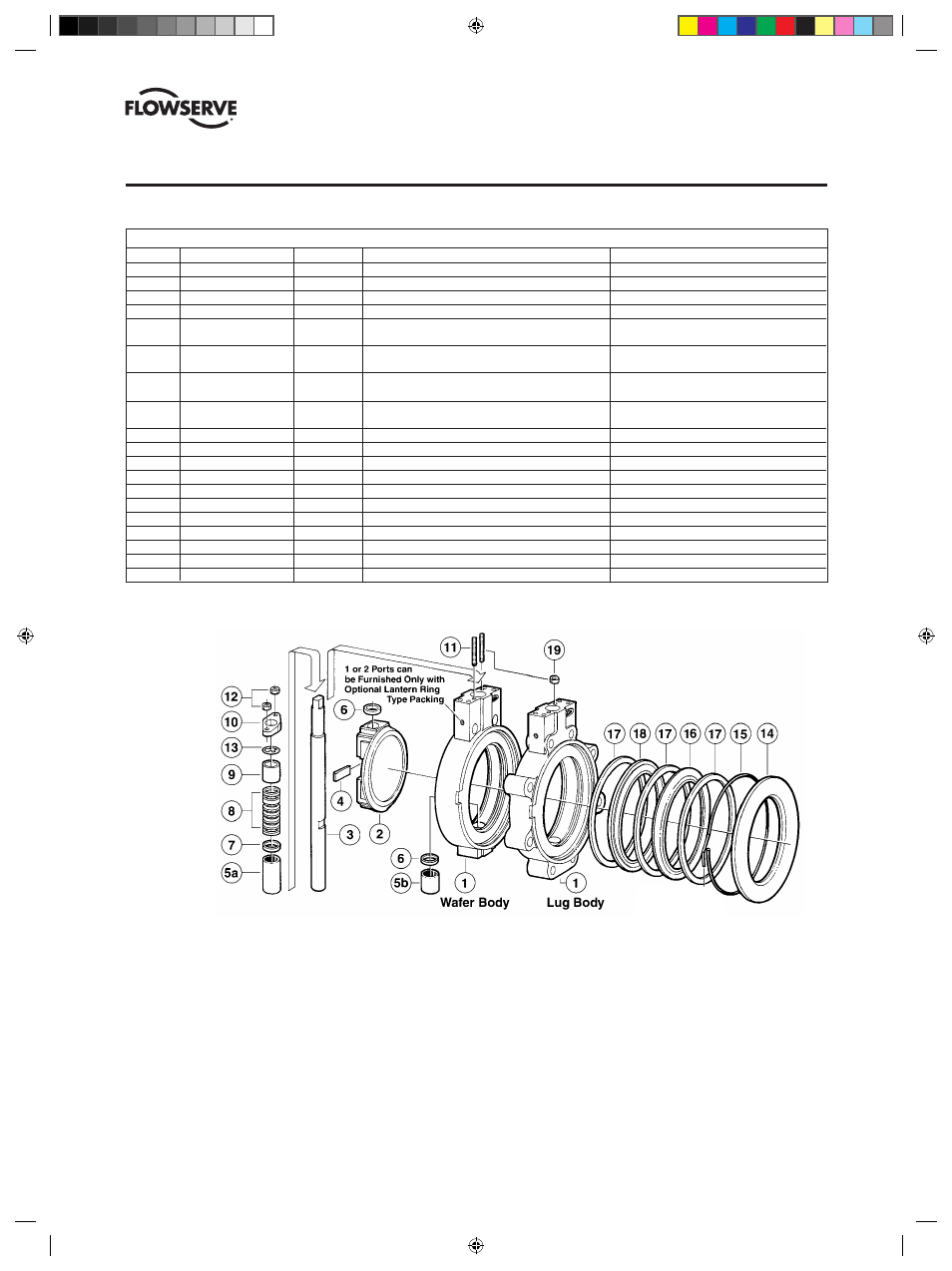

PARTS LIST 2" thru 12" – APEX Metal Seat
APEX Valve
* For quantities of PTFE/Fiberglass bearings, see Table D on page 22. ** Registered trademark of the DuPont Company.
*** Registered trademark of Union Carbide. • Recommended spare parts.
