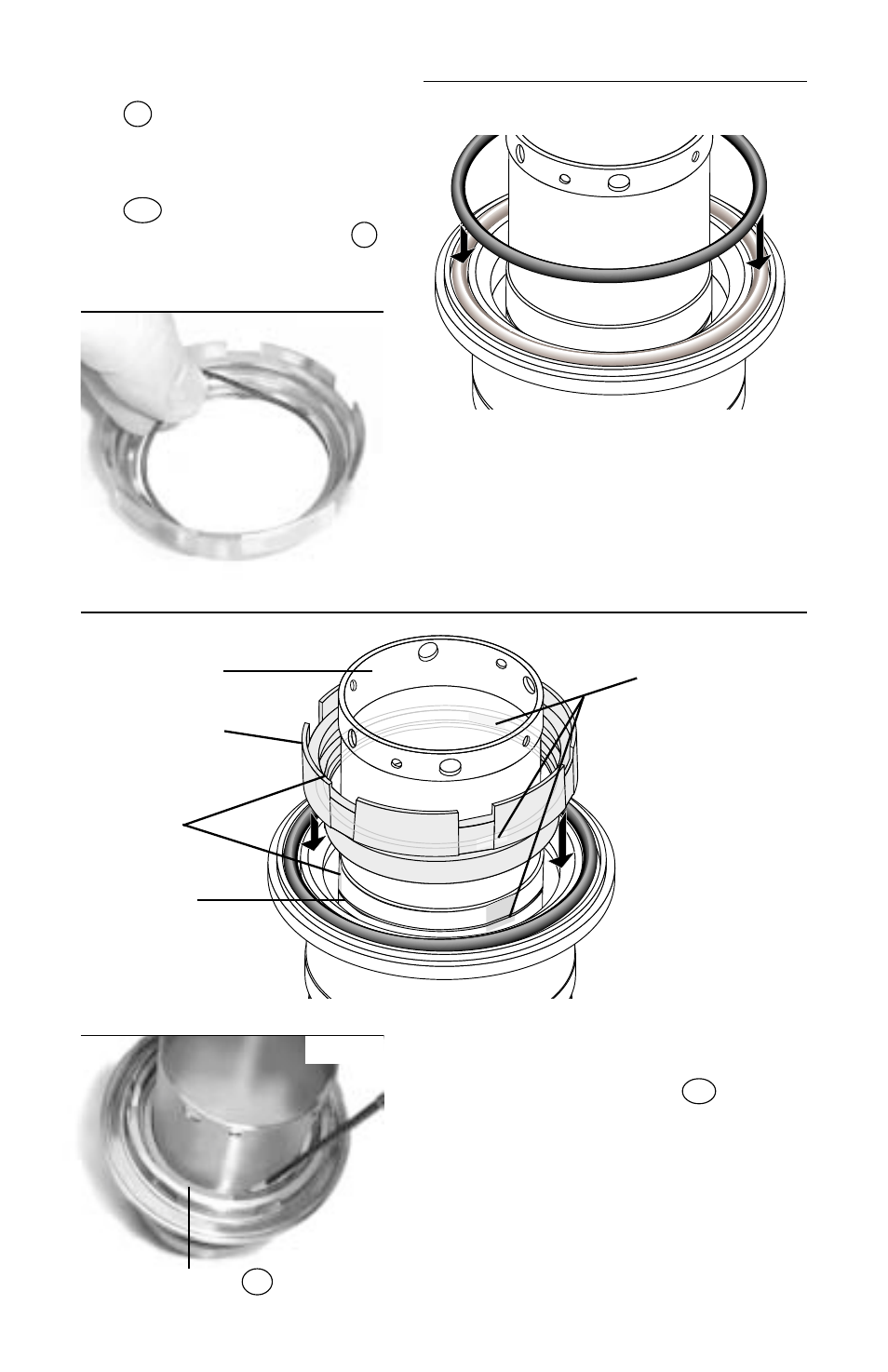

4.11 Place the inner gland O-ring
G1 into the face groove in
the inner gland. ( Figure 14 )
4.12 Place the rotor carrier O-ring
11A in the smallest diameter
groove of the rotor carrier 14
( Figure 15 )
Figure 14
4.14 Insert the retaining ring RR into the
groove in the sleeve assembly while
pressing down on the rotor carrier.
Make sure that the retaining ring
snaps completely into the groove in
the sleeve assembly. (
Figure 17 )
4.13 Align the three drive flats on the rotor
carrier with the drive flats on the
sleeve and press the rotor carrier on
the sleeve with the pumping vanes
face up. (
Figure 16 )
Figure 15
Figure 16
Drive Flats
Drive Flats
Rotor Carrier
Sleeve
Retaining
Ring
Groove
8
Figure 17
Retaining Ring RR
