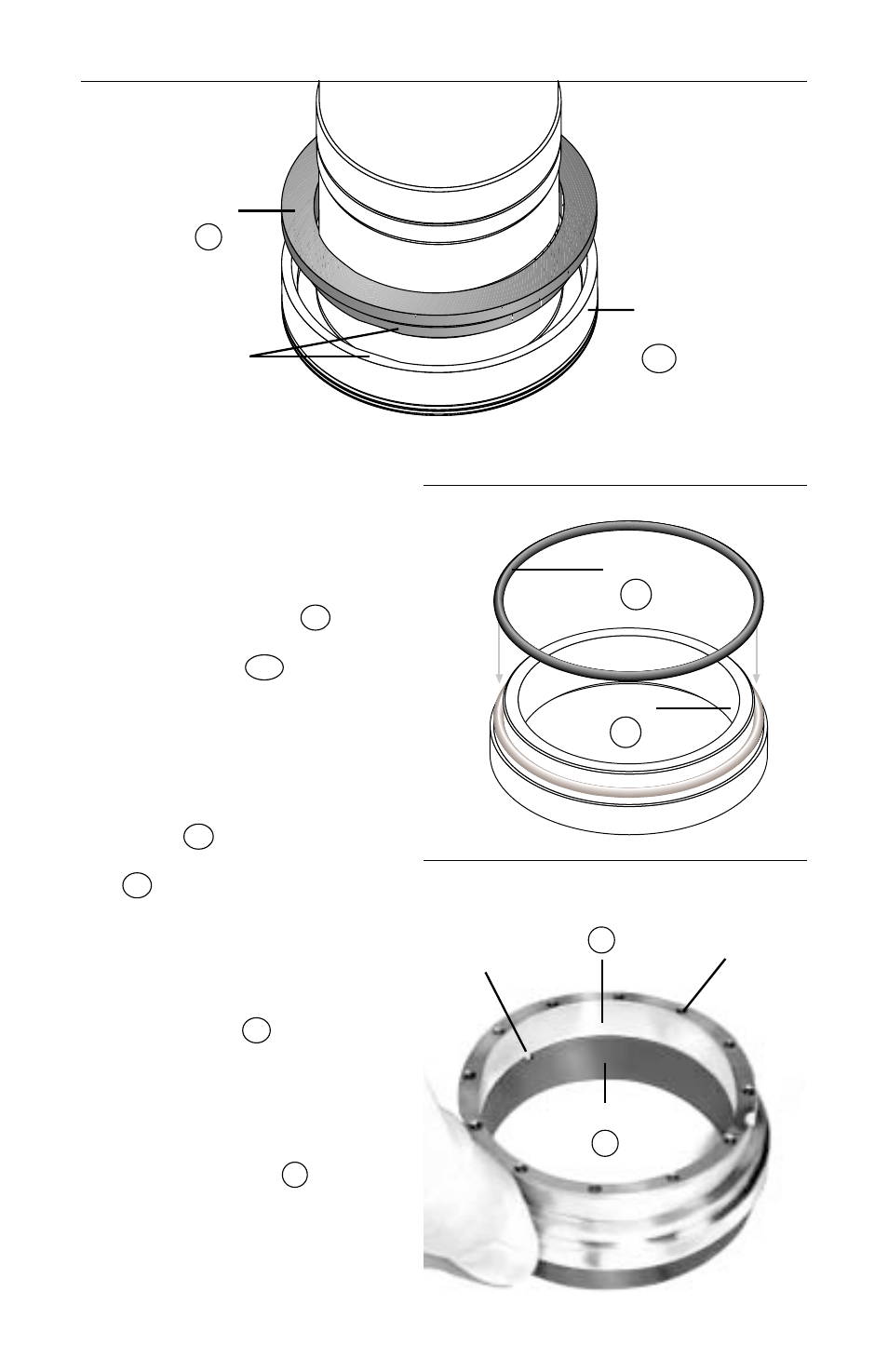

4.5 Align the two flats on the
inboard mating ring 3C with
the two flats on the inside of
the drive ring
10A in the
sleeve end housing, and
press the mating ring into
place using finger pressure
only. (
Figure 8 )
4.6 Place the inboard stator
O-ring P3 on the O-ring
surface of the inboard stator
3A , which is the smallest
outside diameter. Place
stator face down on a clean,
flat surface. (
Figure 9 )
4.7 Align the stator drive pins in
stator carrier SC with the
drive slots in the stator and
press the stator carrier in
place using finger pressure
only. (
Figure 10 )
4.8 Install the springs C in
holes of stator carrier.
3A
Mating
Ring
Drive Flats 10A
Drive
Ring
Figure 8
6
Figure 10
Stator
Carrier
Spring
Locations
Stator
3
SC
Align Pin
with Slot
Figure 9
O-ring
P3
Stator
3A
