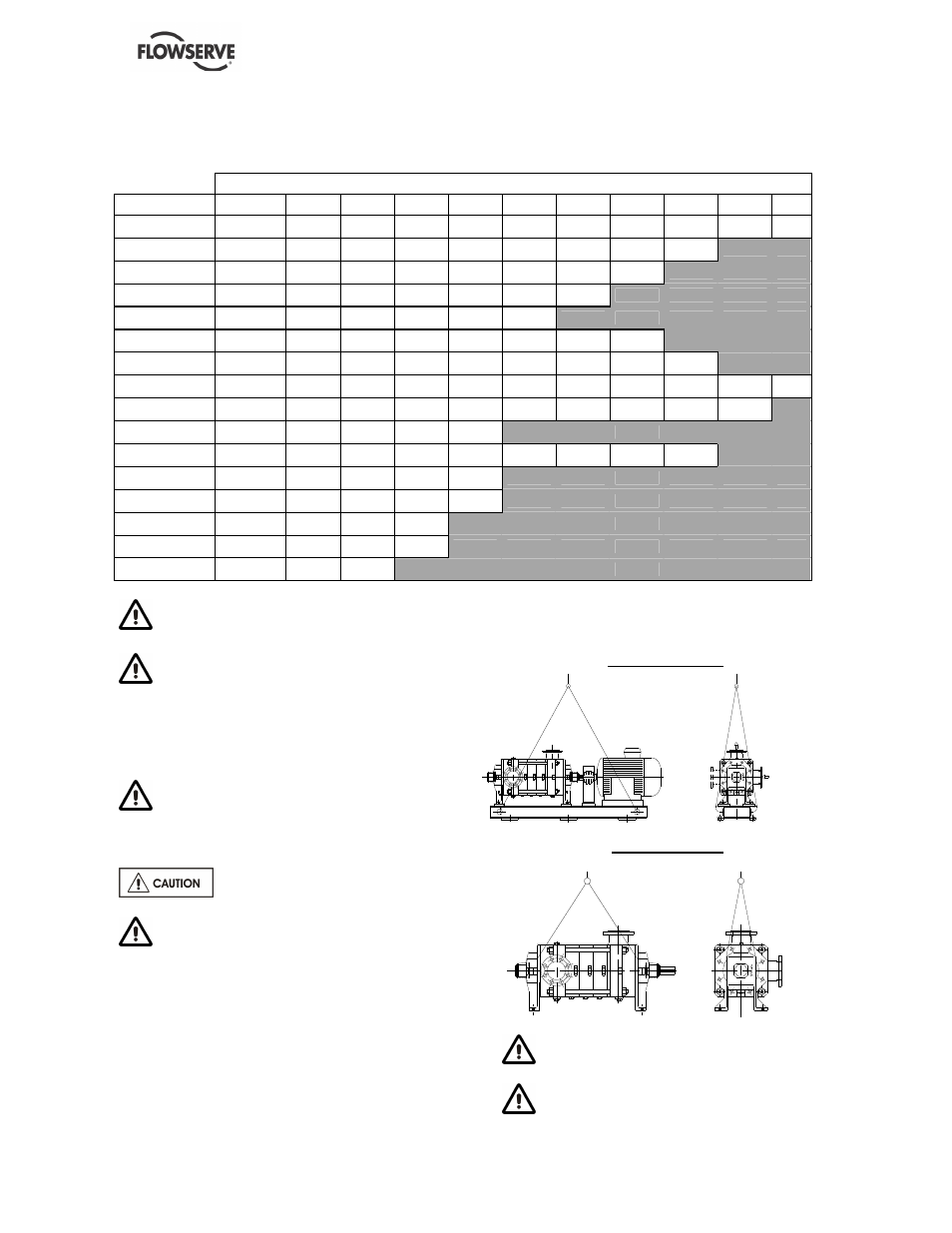

2.2.2 Pump masses
All masses are in kg:
MASS OF BARE SHAFT PUMPS ACCORDING TO STAGE NUMBER
PUMP TYPES 2 3 4 5 6 7 8 9 10 11 12
32 NM 45 50 55 60 65 70 75 80 85 90 95
40 NM 56 65 74 83 92 101 110 119 128
50 NM 82 92 102 112 122 132 142 152
65 NM 111 123 135 147 159 171 183
80 NM 146 165 184 203 222 241
100 NM 245 285 325 365 405 445 485 525
125 NM 466 509 552 595 638 681 724 767 810
150 NM 646 756 864 973 1082 1191 1300 1409 1518 1627 1736
200 NM 1048 1190 1332 1474 1616 1758 1900 2042 2184 2326
201 NM 1300 1500 1700 1900 2100
102 NM 250 289 328 367 406 445 484 523 562
122 NM 575 650 725 800 875
152 NM 820 940 1060 1180 1300
202 NM 1000 1200 1400 1600
252 NM 1800 2120 2440 2760
352 NM 3900 4475 5050
All motors (for masses see the motor
description plate) must be handled with a winch.
For masses above 25 kg (55 lb), manual
handling is forbidden.
2.3 Lifting
2.3.1 Slinging of motor pumps units
Use handling means in accordance with
motor pump unit mass mentioned on the CE plate.
For the masses of the pumps bare end of shaft
see table § 2.2.2 and nameplate.
To avoid distortion, the pump unit
should be lifted as shown.
A crane must be used for all pump sets in
excess of 25kg (55 Ib). Fully trained personnel
must carry out lifting, in accordance with local
regulations.
Motor pump unit
Bareshaft pump
When handling always wear gloves, safety
boots and an industrial safety helmet.
For masses above 25 kg (55 lb), manual
handling is forbidden.
