9
Perform the following checks before installing your
Deluxe Gourmet barbecue:
CONNECT THE GAS SUPPLY
WARNING: A rubber or plastic connector will
rupture or leak, resulting in an
explosion or serious injury if used
inside the barbecue enclosure.
1. Slide your barbecue into place, making sure not
to pinch or kink the gas connector.

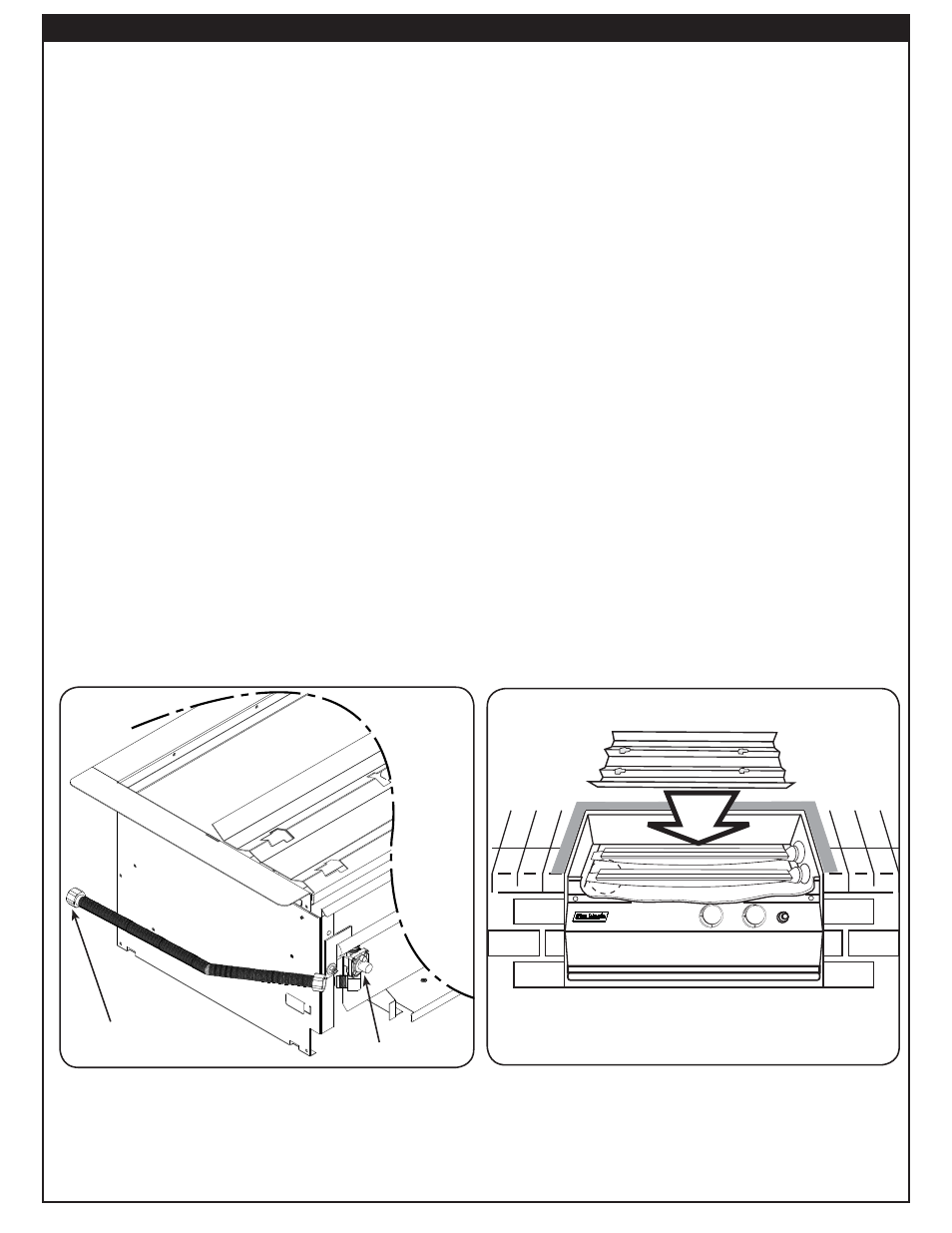

2. Bring the fl ex connector under the left-side
suppor t wall of the frame ( Fig. 9-1 ) and
through to the regulator on the valve manifold.
3. Connect the fl ex connector to the fl ared fi tting
of regulator on the valve manifold. Support the
regulator fi tting with a wrench to avoid applying
excessive torque to the regulator assembly
while tightening this connection securely. DO
NOT use pipe compound on fl are fi ttings.
4. Turn the barbecue burner valves to the OFF
position. Turn the gas supply on. Then carefully
check all gas connections for leaks with a brush
and soapy water before lighting. NEVER USE
A MATCH OR OPEN FLAME TO TEST FOR
LEAKS.
INSTALLATION
Fig. 9-2 Flavor grid diagram
5. Refer to the AIR SHUTTER ADJUSTMENT
I N S T R U C T I O N S a n d L I G H T I N G
INSTRUCTIONS of this manual before
replacing the barbecue face and knobs.
INSTALL THE FLAVOR GRID
Place the flavor grid directly on the burners.
Center the grid over the burners with the open
side up. This allows heat from burners to be evenly
distributed through cooking area. The fl avor grid
heats and cools quickly, making your Fire Magic
barbecue very responsive to the changes you
specify in grill temperature.
The fl avor grid is made of stainless steel or coated
with high temperature porcelain. Either fi nish is
rust resistant and may be cleaned with standard
oven cleaners.
DRIP COLLECTION SYSTEM
The drip collector in this Fire Magic barbecue
is part of the unit’s main frame, and is located
below the burners. The drip collector has one
hole that allows excess drippings to fall through
during cooking. The drip collector is also useful as
it allows you to brush or scrape off excess dried
residue inside the barbecue directly into the drip
tray.
Flex connector
from gas supply
Regulator
Fig. 9-1
Flavor grid
