Fire Magic Deluxe Gourmet Unibody Slide-In 11 Series - Manual (Page 5)

5

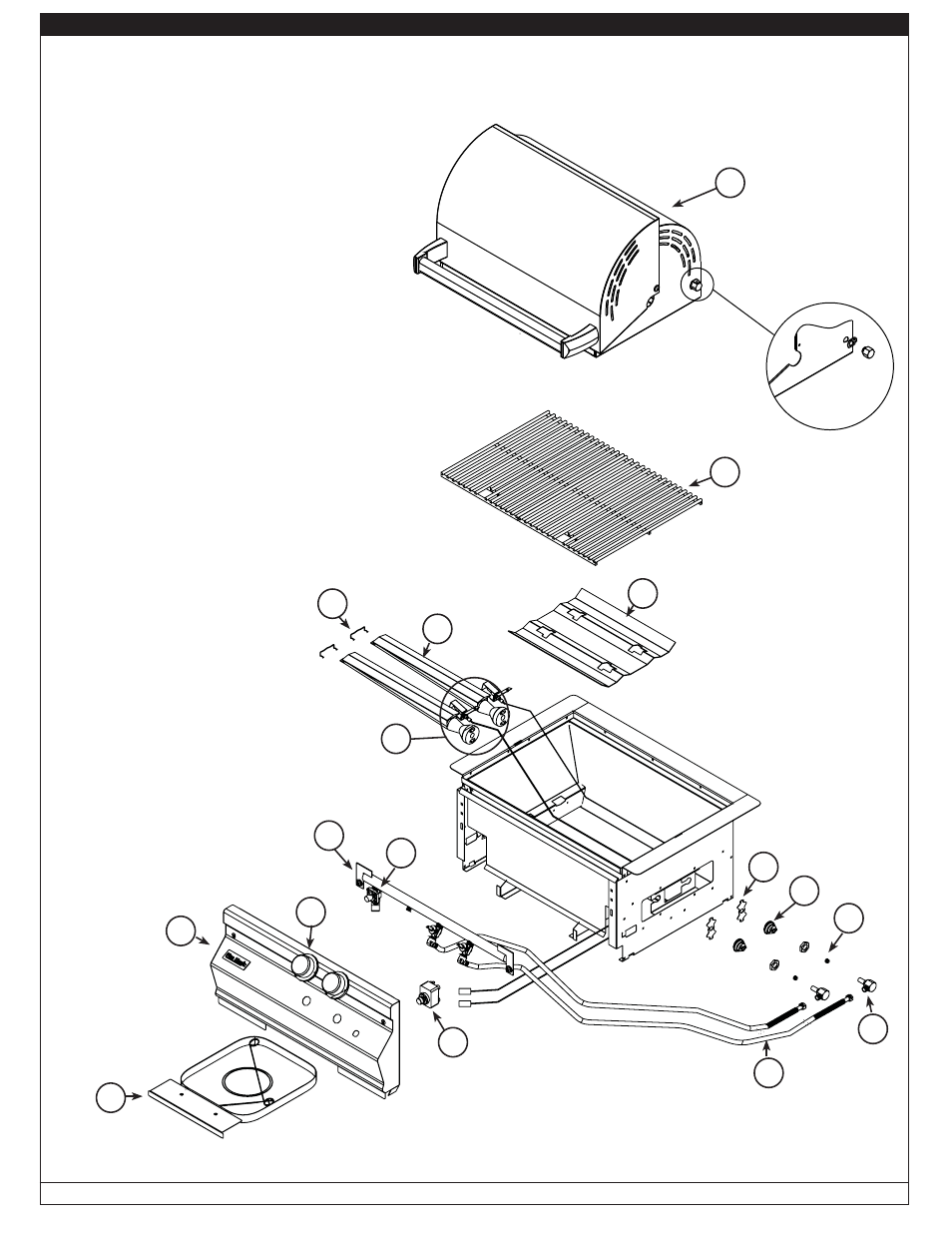

PARTS LIST
Item Description
1. Grill, 16" x 11 1 /
2
" stainless steel
or Grill, 16" x 11 1 /
2
" porcelainized steel
or Grill, 16" x 11 1 /
2
" porcelainized cast iron
2. Flavor grid 10" x 17"
3. Orifi ce, natural gas (2)
or Orifi ce, propane gas (2)
4. Pair of springs, air shutter
5. Pair of air shutters, gas barbecue
6. Valve manifold assembly
7. Control panel (stainless steel)
or Control panel (porcelain)
8. Fire Magic barbecue knobs (2)
9. Drip tray assembly
10. Pair of burners, 304 CST S.S.
11. Pair of burner clips
12. Ignitor assembly
13. Gas line w/compression nuts & sleeve (2)
14. Electrode assembly w/wiring (2)
15. Elbow (2)
16. Oven assembly
17. Convertible regulator
Replacement parts can be ordered
from your local Fire Magic dealer.
2
3
7
12
14
11
10
5
9
8
6
4
13
15
1
Robert H. Peterson Co. • 14724 East Proctor Ave. • City of Industry, CA 91746
16
Fig. 5-1
17
REV 4 - 1406201510 L-C2-147
