DELL™ OPTIPLEX™ FX160 TECHNICAL GUIDEBOOK

5

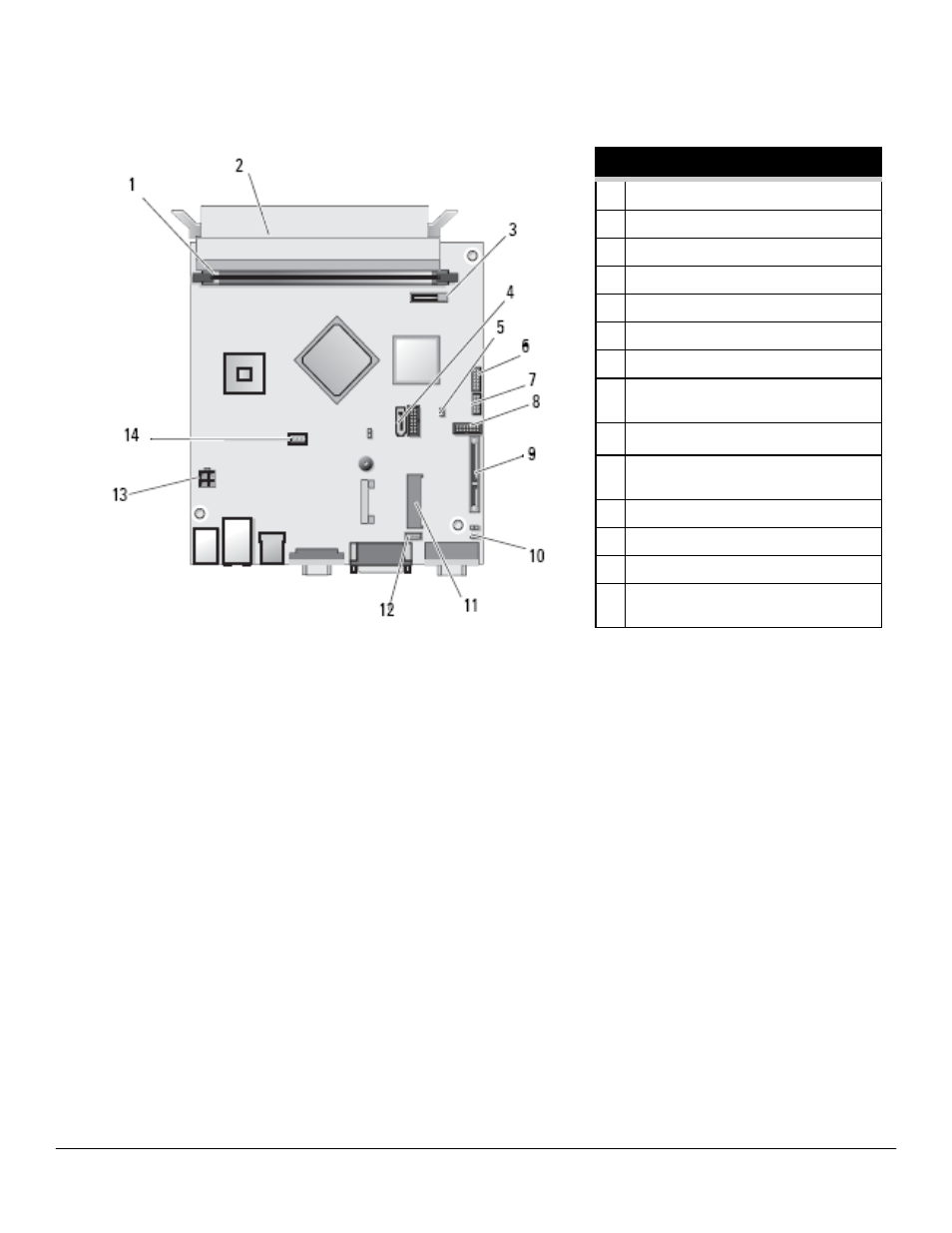

CONNECTORS

1

Memory Connector (DIMM_1)

2

Memory Connector (DIMM_2)

3

Battery (BATTERY)

4

SATA Data Cable Connector (SATA1)

5

Setup Jumper (SETUP_LOCK)

6

Audio Connector (AUDIOF1)

7

USB Connector (USBF1)

8

Front Panel Connector (FRONTPANEL)

9

NVRAM Module Connector (SATA0)

10

Clear CMOS and Password Jumpers

(RTCRST and PSWD)

11

WLAN Connector (MINIA1)

12

Fan Connector (FAN_CPU)

13

12V Power Connector (PWR1)

14

SATA Hard-Drive Power Connector

(SATA PWR1)

SYSTEM BOARD CONNECT ORS
