Delta Electronics Si-Steel Transformers EI Series User Manual

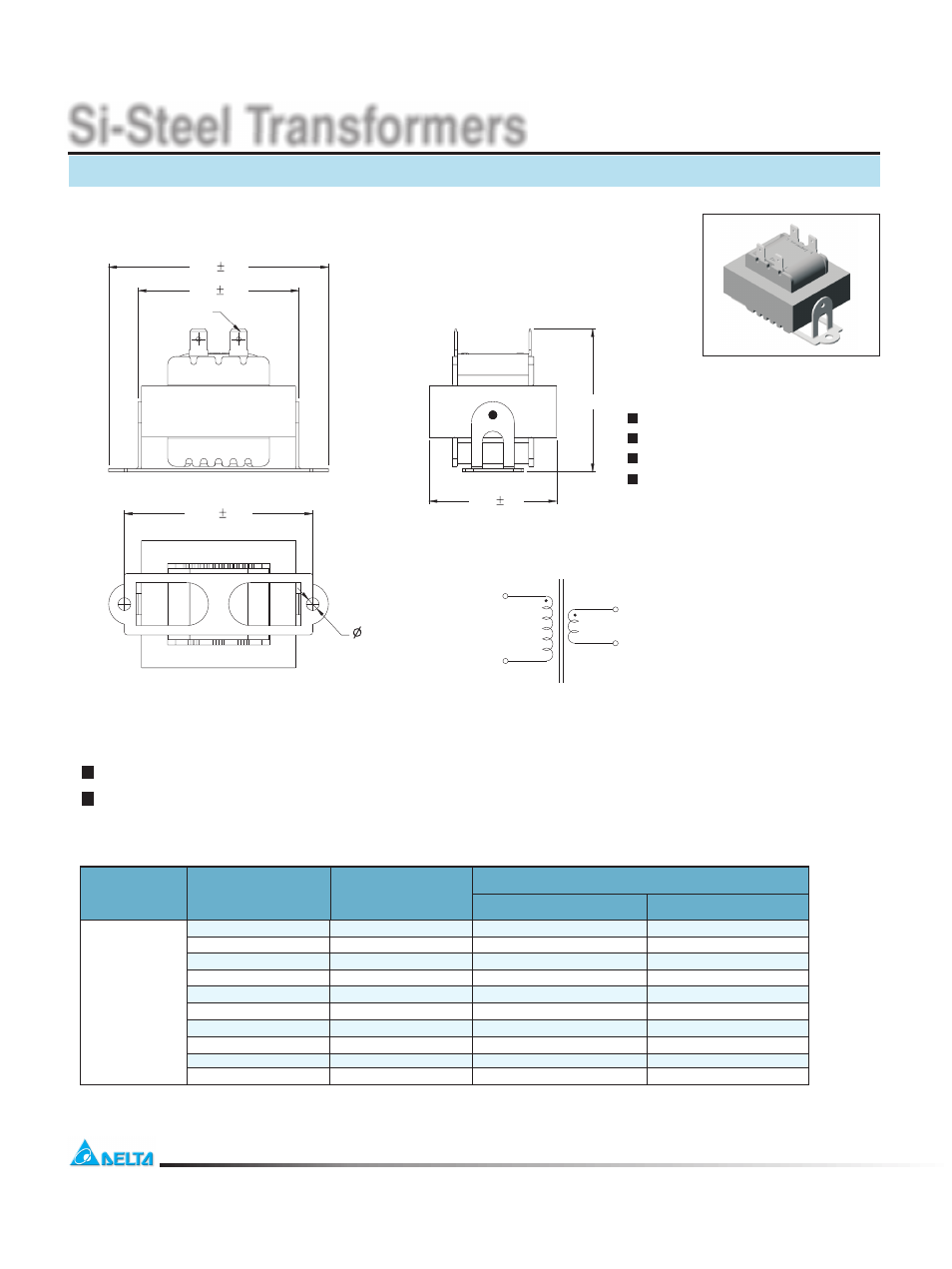

Si-steel transformers, Ei series (frame mount), Mechanical dimension : unit : mm
EI Series (Frame Mount)
Mechanical Dimension : Unit : mm
Si-Steel Transformers
Washer
HVAC
Dishwasher
Used on :
Auto Industrial control
Schematic:
1
3
2
4
Class B (MP-130) insulation system, UL File Number : E115982.
Electrical Characteristics :
VA SIZE
VA SIZE
PRIMARY VOLTAGGE
PRIMARY VOLTAGGE
SECONDARY RMS RATINGE
SECONDARY RMS RATINGE
SECONDARY CURRENT(A)
SECONDARY CURRENT(A)
20.0
20.0
ORDER NUMBER
ORDER NUMBER
SECONDARY VOLTAGE
SECONDARY VOLTAGE
DHT-5701
120V 60Hz
6
3.33
DHT-5702
120V 60Hz
9
2.22
DHT-5704
120V 60Hz
12
1.67
DHT-5706
120V 60Hz
18
1.11
DHT-5707
120V 60Hz
24
0.83
DHT-5708
240V 50Hz
6
3.33
DHT-5709
240V 50Hz
9
2.22
DHT-5711
240V 50Hz
12
1.67
DHT-5713
240V 50Hz
18
1.11
DHT-5714
240V 50Hz
24
0.83
Compliance with UL / CSA / CE Safety Standard.
DELTA ELECTRONICS, INC.
(TAOYUAN PLANT CPBG)
51
252, SAN YING ROAD, KUEISAN INDUSTRIAL ZONE, TAOYUAN SHIEN, 333, TAIWAN, R.O.C.
TEL: 886-3-3591968; FAX: 886-3-3591991
http://www.deltaww.com
PRI
SEC
60.5 1.0
82.0 1.0
70.25 0.5
48.0 1.0
55.0 Max
4.75
6.35*0.8
