www.desatech.com

107882-01K

11

Installing Bottom Mounting Screws
1. Locate two bottom mounting holes. These

holes are near bottom on back panel of heater

(see Figure 12).

2. Mark screw locations on wall.
3. Remove heater from mounting bracket.
4. If installing bottom mounting screws into

hollow or solid wall, install wall anchors.

Follow steps 1 through 4 under Attaching To

Wall Anchor Method, page 10.

If installing bottom mounting screw into

wall stud, drill holes at marked locations

using 9/64” drill bit.

5. Replace heater onto mounting bracket.
6. Place spacers between bottom mounting holes

and wall anchor or drilled hole.

7. Hold spacer in place with one hand. With other

hand, insert mounting screw through bottom

mounting hole and spacer. Place tip of screw

in opening of wall anchor or drilled hole.

8. Tighten both screws until heater is firmly

secured to wall. Do not over tighten.

Note:

Do not replace front panel at this time.

Replace front panel after making gas connec-

tions and checking for leaks (see pages 11

through 13).

INSTALLATION

Continued

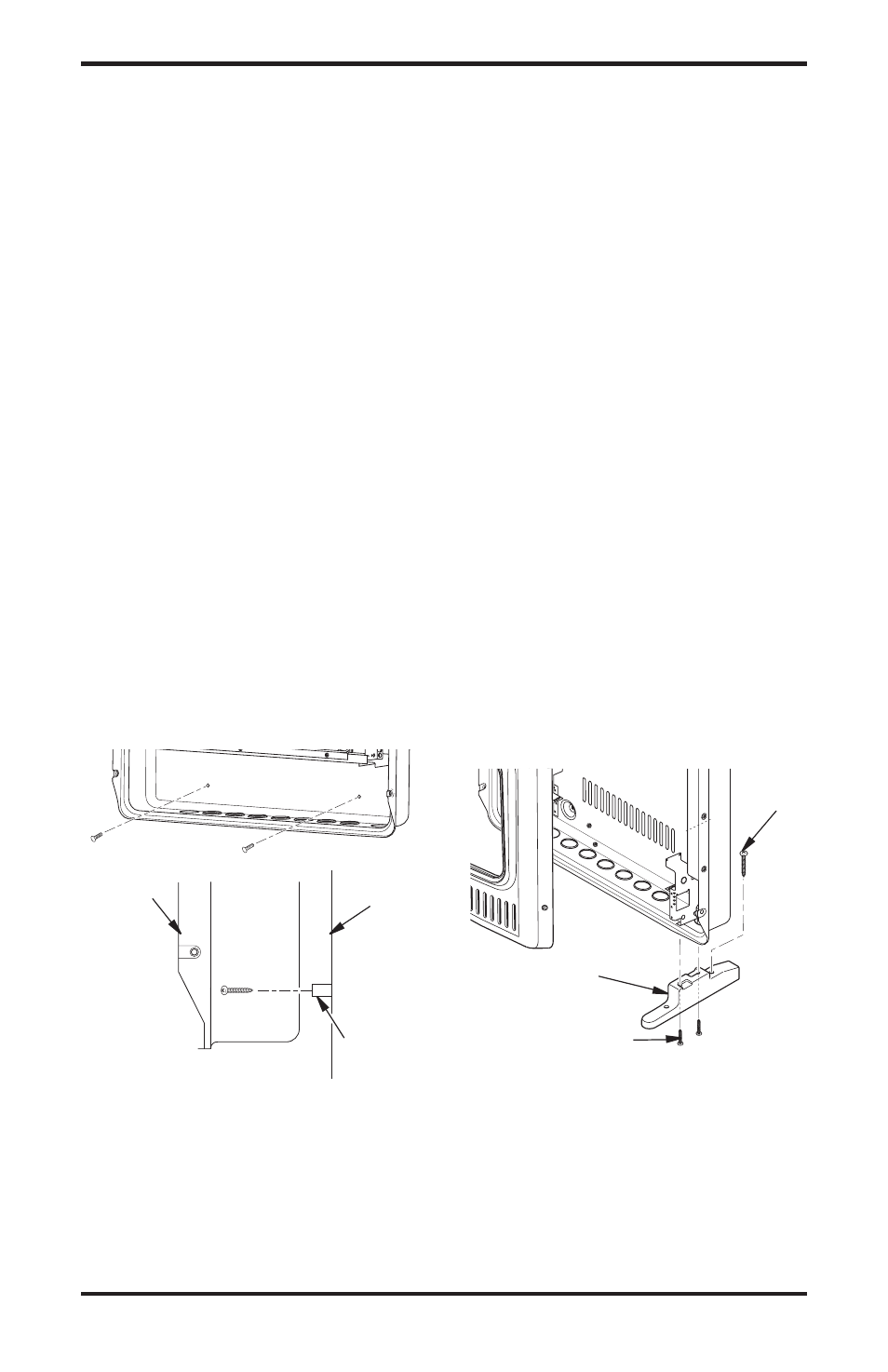

Figure 12 - Installing Bottom Mounting

Screws

Side View

Front View

Wall

Spacer

Heater

MOUNTING HEATER TO FLOOR
(OPTIONAL)

Mounting Base Feet to Heater
1. Lay heater cabinet on its back on a table

with the heater bottom overhanging the table

edge.

2. Align holes in base foot with mounting holes

on bottom of cabinet (see Figure 13).

3. Secure base foot to heater using sheet metal

screws.

4. Repeat for other side.
Mounting Base Feet to Floor (Where
required by local code)
1. Remove front cover (see Removing Front

Panel of Heater, page 9).

2. Position heater with base feet in desired loca-

tion. Mark holes for drilling. Remove heater

with base.

3. For carpeted floors, make a small cut with a

sharp knife at marked locations prior to drill-

ing. If mounting base to a wood floor, drill 1/8

inch diameter hole, 3/4 inch deep. (Do not use

anchors in wood floors).

If mounting base to a concrete floor, drill

with 1/4 inch diameter concrete drill bit, 1

3

/

8

inches into floor. Insert anchors completely

into holes.

4. Reposition heater with base feet over holes.

Secure base to floor with wood screws. See

Figure 13 - Installing Base Feet

Wood
Screw

Sheet Metal Screw

Base Foot
