10

DR

®

REDI-PLOW™ ATV

Chapter 4: Parts Lists and Schematic Diagrams

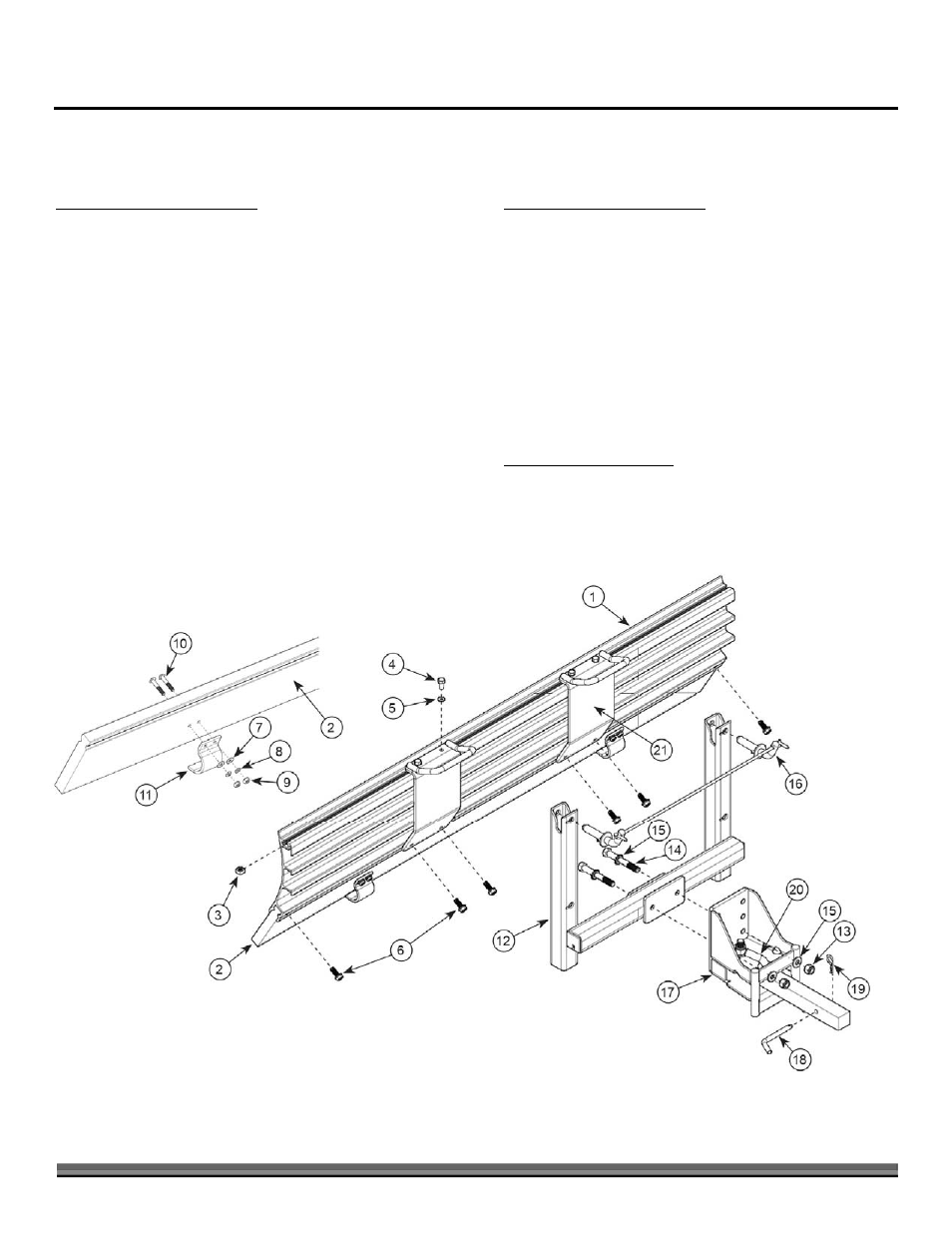

Parts List and Schematic – DR

®

REDI-PLOW™ ATV

Note: Part numbers listed are available through DR Power Equipment.

Ref# Part#

Description

1

33641

Aluminum Blade, 60"

2

33642

Rubber Cutting Edge, 60"

33637

Hardware Kit, Blade, RDP & ATV

3

33618

Nut, Square, 3/8'' ZP

4

33608

Bolt, Hex Head, 3/8" x 3/4", ZP

5

33609

Washer, Flat 3/8", ZP

6

33607

Bolt, Self Threading, 3/8" x 1", ZP

7

33631

Washer, Flat, 1/4" ZP

8

33632

Washer, Lock, 1/4" ZP

9

33633

Nut, Hex, 1/4" ZP

10

33634

Bolt, Carriage, 1/4" x 1- 1/2", GR5, ZP

11

33635

Skid Bracket

12

33643

Push Frame Kit

Ref# Part#

Description

33644

Hardware Kit, Push Frame

13

33616

Nut, Lock, 1/2'', ZP

14

33615

Bolt, Hex, 1/2" x 4", GR8, ZP

15

33617

Washer, Flat, 1/2", ZP

16 33612

Keyhole

Pin

17

33645

Angle Interceptor w/Hardware, RDP ATV

18 33646

Hitch

Pin

19 33630

Hair

Pin

20

33625

Swivel Pin

21 33636

Slide

Hinge

Not shown on Illustration:

34008

Label, RDP ATV Logo

33648

Label, Operation & S/N, RDP ATV
