DR Power LT 1 (1/2-ton) (March 2012 - Present) User Manual
Page 8

8
DR
®

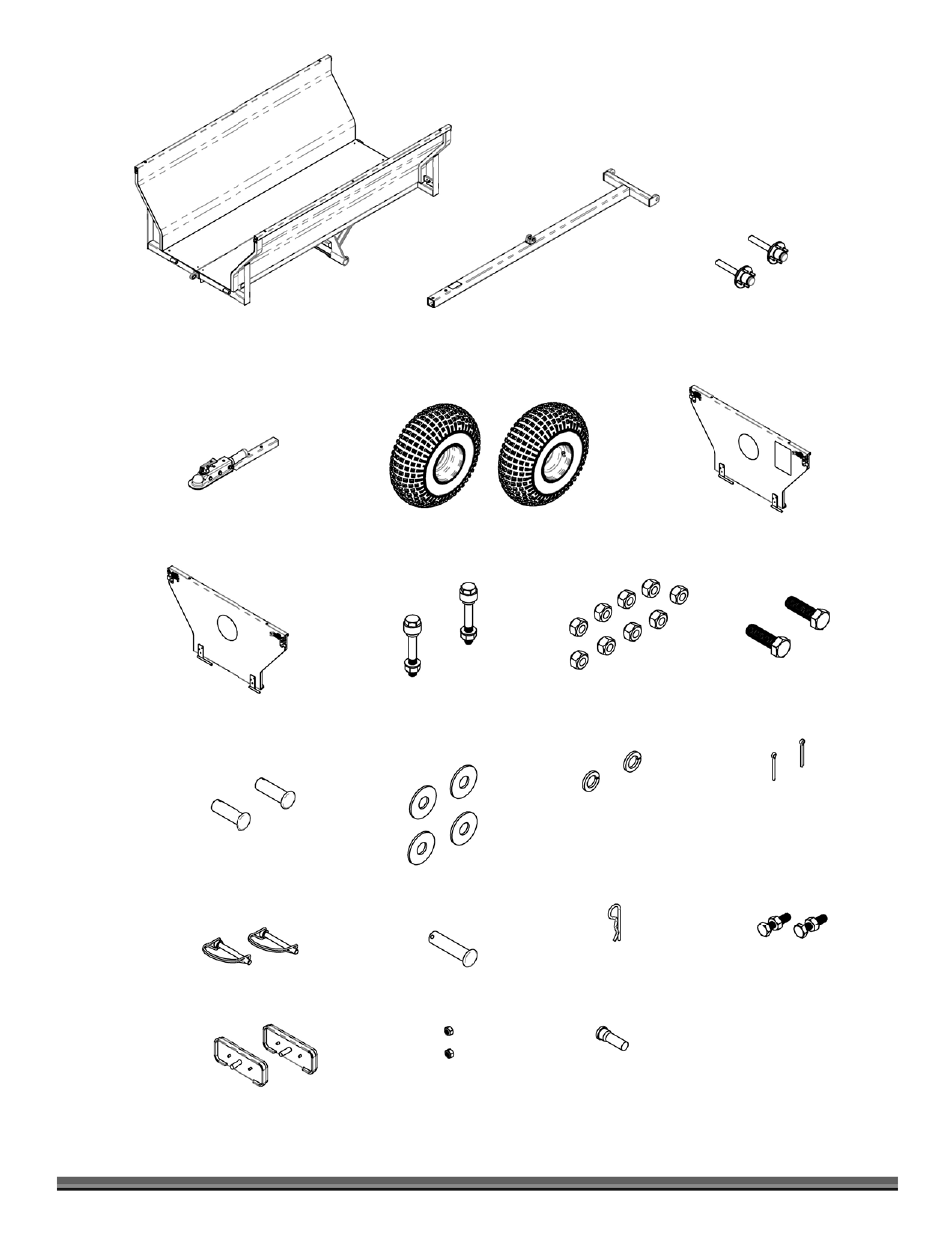

1/2 TON VERSA TRAILER
Dump Bed, 30290
Tow Bar, 30372
(2) Spindle Hub Assembly, 30355
Tow Hitch, 30386
(2) Wheel and Tire Assembly, 30385
Front Tailgate, 30353
Rear Tailgate, 30294
(2) M10-1.5 x 80mm Bolt, 30248
(2) Tow Hitch Spacer, 30284
(2) M10 Washer, 30250
(2) M10-1.5 Lock Nut, 30249
(9) Lug Nut, 29978
(2) M16-2 x 30mm Bolt, 30238
(2) Clevis Pin, 30388
(4) M16 Washer, 30361
(2) M16 Lock Washer, 30360
(2) Cotter Pin, 25547
(2) Safety Snap Pin, 30275
Dump Bed Pin, 30258
Hitch Clip Pin, 16003
(2) M10-1.5 x 40mm Bolt, 30388
(2) M10-1.5 Nut, 30359
(2) Reflector, 30285
(2) M6-1 Lock Nut, 30286
Wheel Stud, 29960
Figure 3
