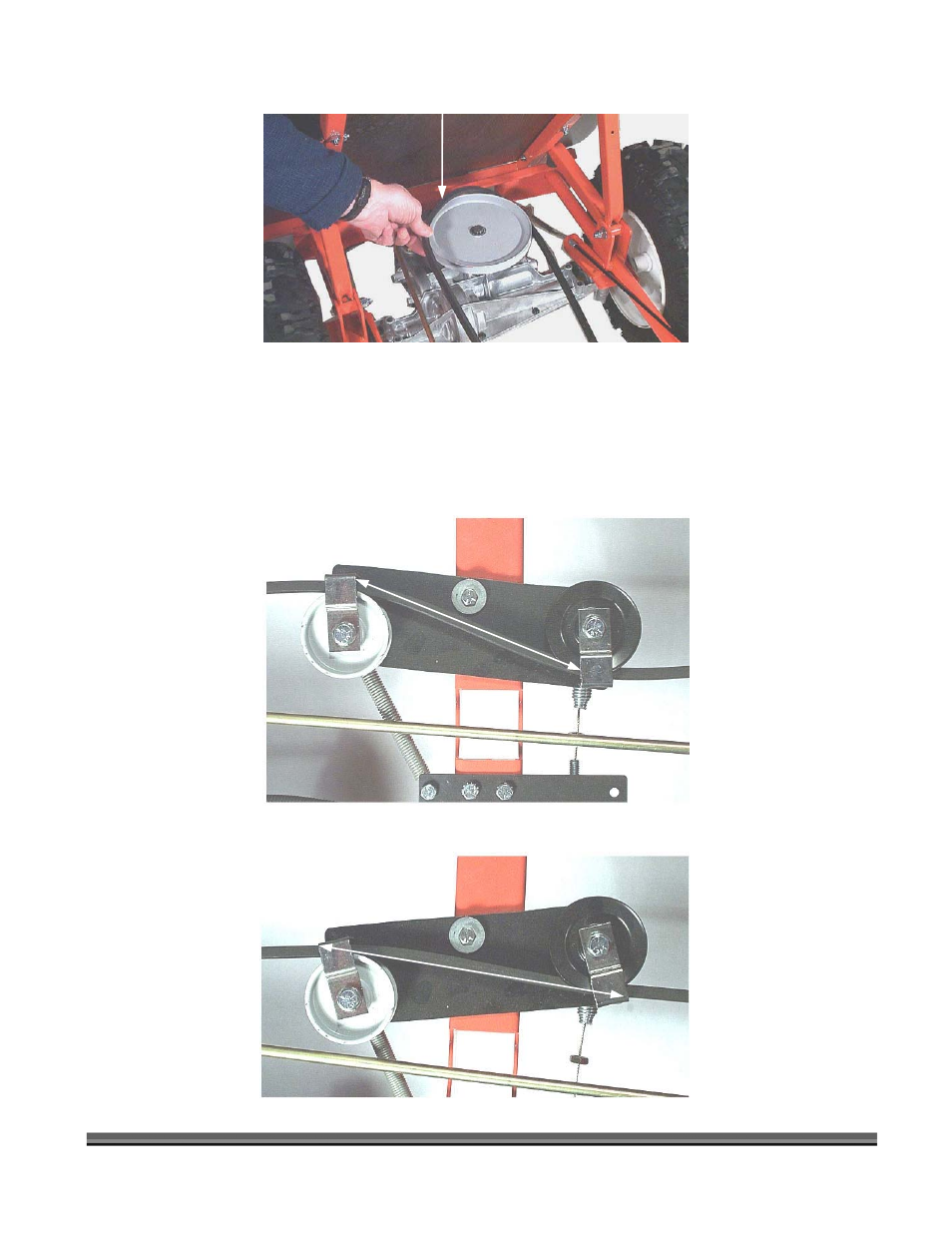

Figure 17
Remove Belt from Transmission Pulley
9. Squeeze the Wheel Clutch Lever to engage the Clutch. The Belt Guides should be perpendicular to
and not touching the Belt (Figure 18). With the Wheel Clutch engaged, adjust the Guides as
necessary and tighten the Guide Bolts (Figure 16) with the 9/16" socket.
NOTE: When the Wheel Clutch Lever is released (disengaged), the Belt Guides will just touch the Belt
(Figure 19) to prevent the DR POWERWAGON-PREMIER from “creeping”.
Guides are perpendicular to, and not touching the Belt with Clutch Engaged.
Figure 18
Figure 19
Guides are just touching the Belt with Clutch Disengaged.
