Assembling the DR POWER GRADER
Tools Needed:
•
(2) 9/16" Wrench or Socket
Installing the Battery
1. Locate the Clevis Base w/Battery Assembly
2. Using two (2) 9/16" Wrenches, bolt the Clevis Base w/Battery Assembly to the left Side Rail with the
three (3) 3/8"-16 x 1-1/2" Bolts, 3/8" Flat Washers and 3/8" Nylon Lock Nuts (Figure 3).

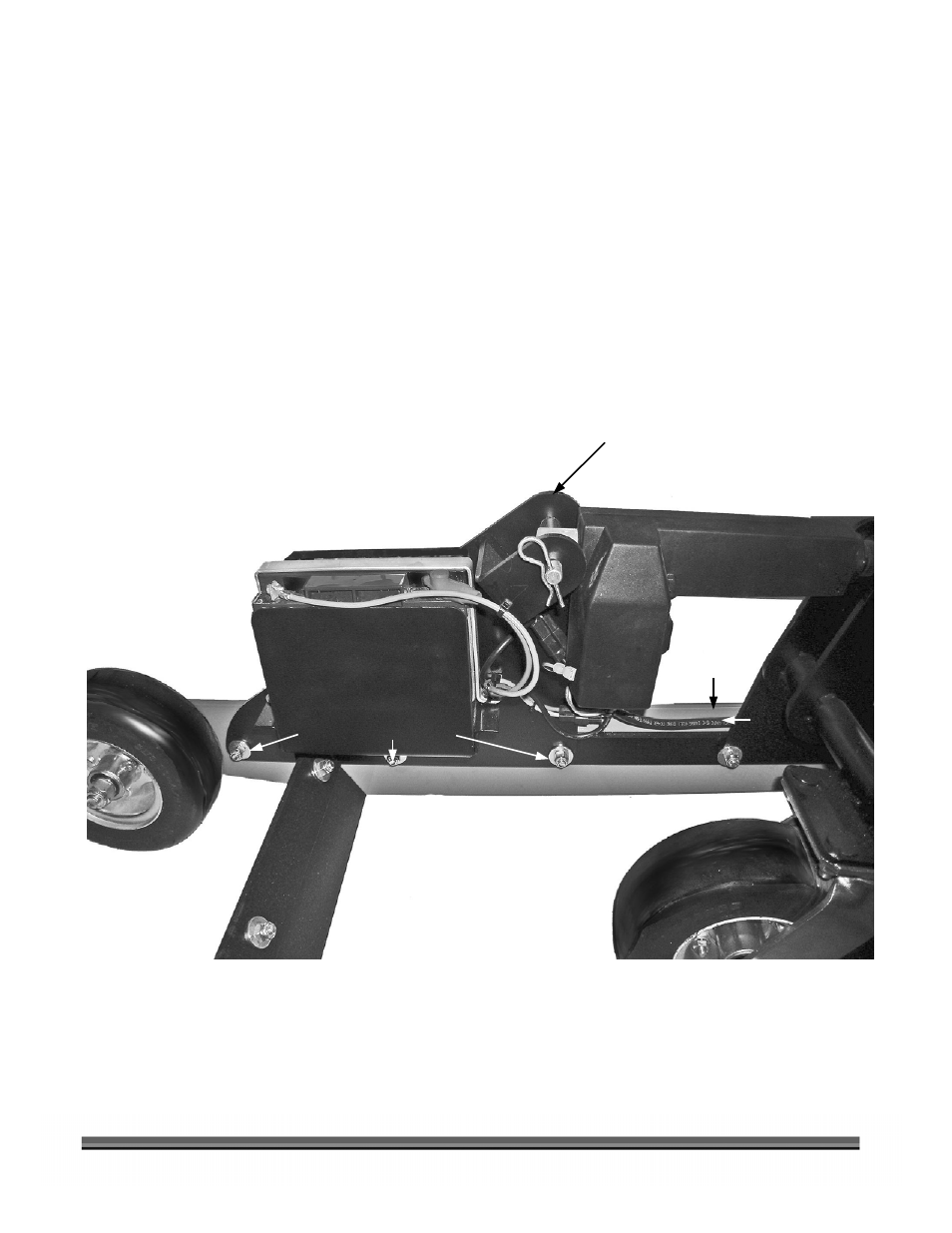

Figure 3
Battery Assembly
3/8" Mounting Hardware
Clevis Base
w/Battery
Assembly
(-) Terminal (+) Terminal
Battery
(-) Terminal (+) Terminal
Note: Actuator shown installed,
you will install this later.
Side Rail
Control Cable
Frame
