Assembly – DR Power Dual Action 10-Ton Electric (Aug 2011 - Present) User Manual

Page 9

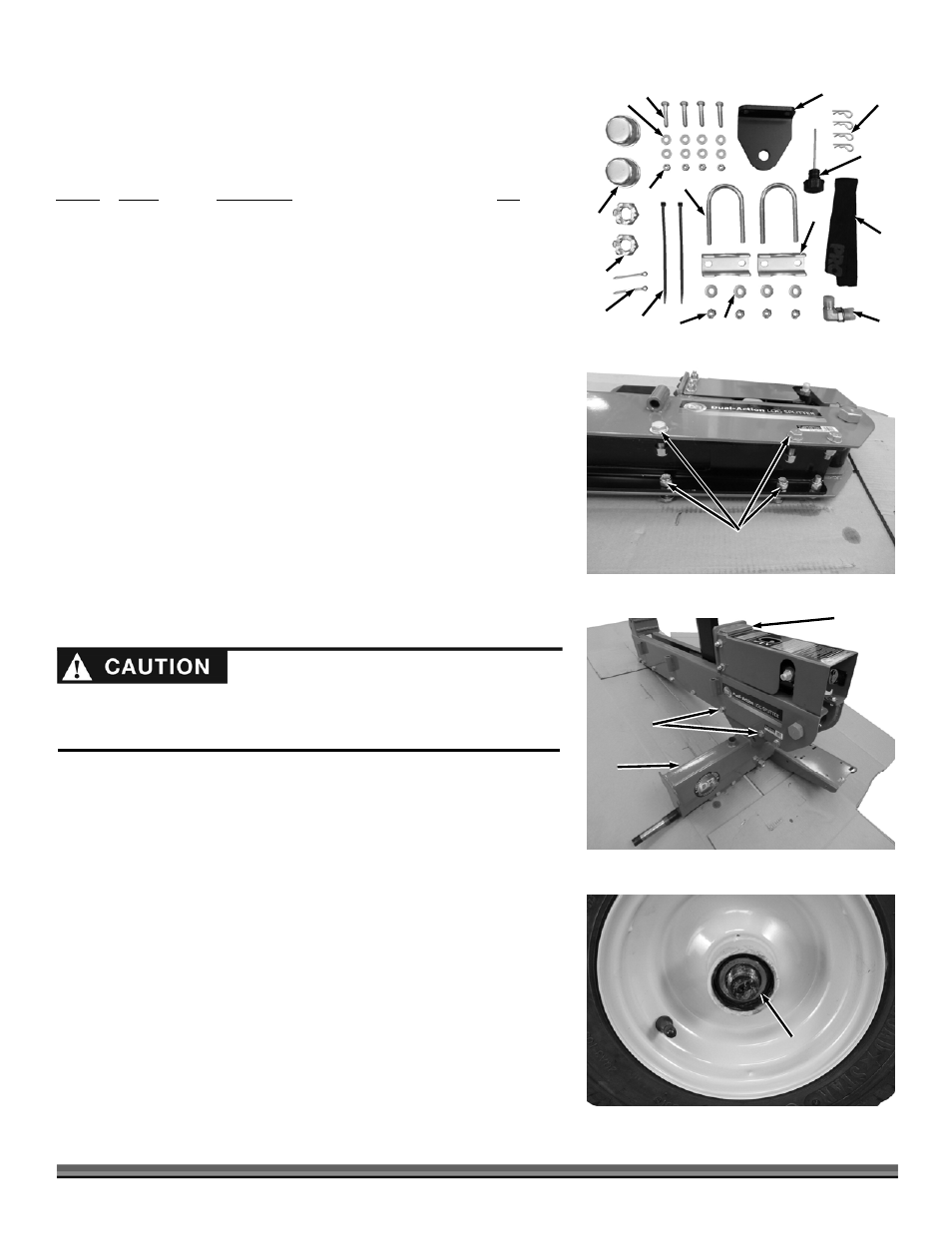

1. Open the Parts Box and lay them out on a clean flat area (Figure 2).
Note: For assembly location, the part numbers in the following list can be

referenced to the Parts List and illustrations in Chapter 6.

Parts Box (

Figure 2):

Item # Part

# Description

Qty

1 ............. 13443 .............. Bolt, HCS, 5/16-18 X 1-1/2, Gr5, ZP .............. 4
2 ............. 11238* ............ Washer, Flat, 1/4" USS .................................. 12
3 ............. 11076 .............. Nut, Nylon Lock, 5/16-18, ZP ........................ 4
4 ............. 29054 .............. Mount, Tow Hitch, Rear ................................. 1
5 ............. 29367 .............. Dipstick ........................................................... 1
6 ............. 27610 .............. Abrasion Resistant Sheathing, 15.5in ............ 1
7 ............. 11214 .............. Cable Tie, 7-1/2 Long ..................................... 2
8 ............. 25616 .............. Hyd Adapter jcm08-obm08-90 ....................... 1
9 ............. 15192 .............. Pin, Hitch Clip, 5/16" - 3/8" ........................... 4
10 ........... 25311 .............. Pin, Cotter, 3/16" X 2.5" ................................. 2
11 ........... 25310 .............. Nut, Slotted, 1-14, ZP ..................................... 2
12 ........... 25318 .............. Cap, Dust ........................................................ 2
13 ........... 11075 .............. Nut, Nylon Lock, 3/8-16, ZP .......................... 4
14 ........... 11241 .............. Washer, Flat, 5/16 USS, ZP ........................... 4
15 ........... 29377 .............. Clamp, 2 inch, Jack ......................................... 2
16 ........... 29378 .............. U-bolt, 3/8-16 X 2 X 4, ZP .............................. 2

* Only 8 are used for this model.

Compare the contents of the Parts Box, Product Pack and Shipping Box with the
“Parts Supplied” list above. If you have any questions please contact us at
www.DRpower.com or call 1-800-DR-OWNER (376-9637) for assistance.

Assembly

1. Position the Beam at the center of the pallet and lay it on its side to remove

the four sets of Bolts, Flat Washers and Locknuts where the Axle assembly
attaches (Figure 3).

2. Set the Beam assembly onto the Axle assembly and align the holes (Figure

4).

3. Insert the four Bolts, Flat Washers (outside of main Beam) and Locknuts

and tighten with two 3/4" Wrenches.

4. Place Jack Stands under the Axle assembly to allow room to install the

Wheels.

5. Place a Wheel onto the Axle with the Valve Stem facing out and the loose

Tapered Bearing on the outside (Figure 5).

Note: Make sure the rollers of the Tapered Bearing are facing in. The Hub and

Bearing were greased at the factory. Do not remove the grease.

Bolts, Washers
and Locknuts

Figure 3

Beam
Assembly

Figure 4

Axle
Assembly

Bolts, Flat
Washers and
Locknuts

Figure 2

Figure 5

Taper
Bearing

We recommend two people when handling assemblies during the following
procedures. The assemblies involved are heavy and could cause injury when
lifting or if dropped.
