2. Using a 1/2" Wrench, adjust the Deck from front to rear as needed by moving the Top and/or the
Bottom Bolt to a different Hole in the Rear Adjustment Bracket (Figure 25) .
3. You can make fine adjustments with the Front Brackets by changing the Front Deck height by 1/4" for
each adjacent hole.
B. Leveling the Deck Side to Side
1. Measure the distance from the ground to the Deck on the left and right sides of the Deck ( Figure 24 on
page 33 ).
2. There is a Front Adjustment Bracket on each side of the Deck. Using a 3/16" Hex Key Wrench, adjust
the Deck on each side as needed by moving the Mounting Bolt to a different Hole in the Front Bracket
(Figure 26). Each Hole in the Front Bracket will change the Deck height on that side by 1/4".
Rear Adjustment Bracket
Mounting Bolt

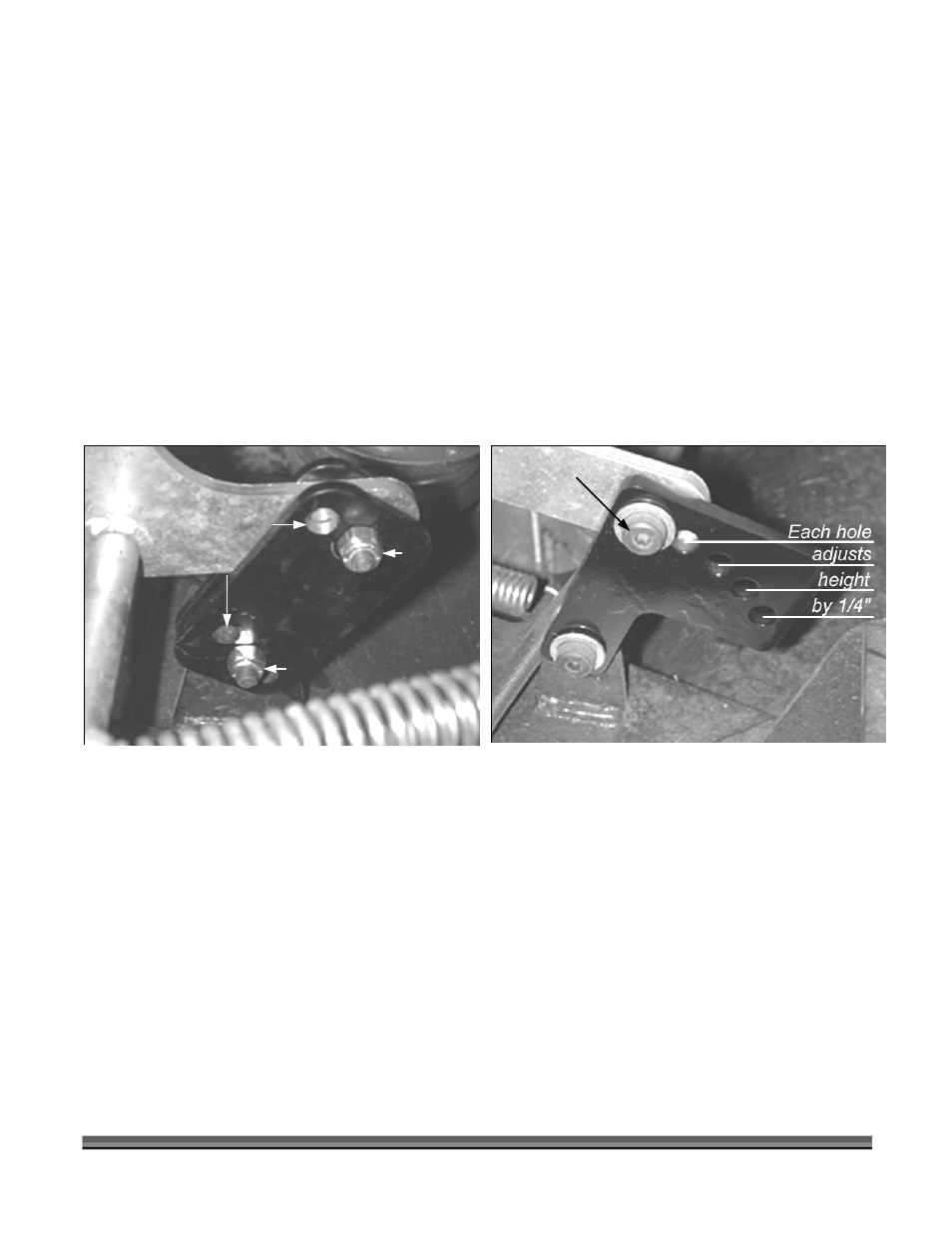

Figure 25 Figure 26
Front Adjustment Bracket
Top Adjustment Hole
Bottom Adjustment Hole
Top Bolt
Bottom Bolt
