ALL-TERRAIN

™

FIELD and BRUSH MOWER Safety & Operating Instructions

To Remove or Change the Deck

WARNING: Always disconnect the

spark plug wire before servicing your
machine.

1. Remove the black belt guard by

unscrewing the black knob, lifting the
cover and pulling up and back to
remove it.

2. Release the belt tension lever

(Figure 22).

3. Remove the belt from the pulley

(Figure 23).

4. Remove the pin and collar (Figure 24),

then pull the power unit away from the
deck.

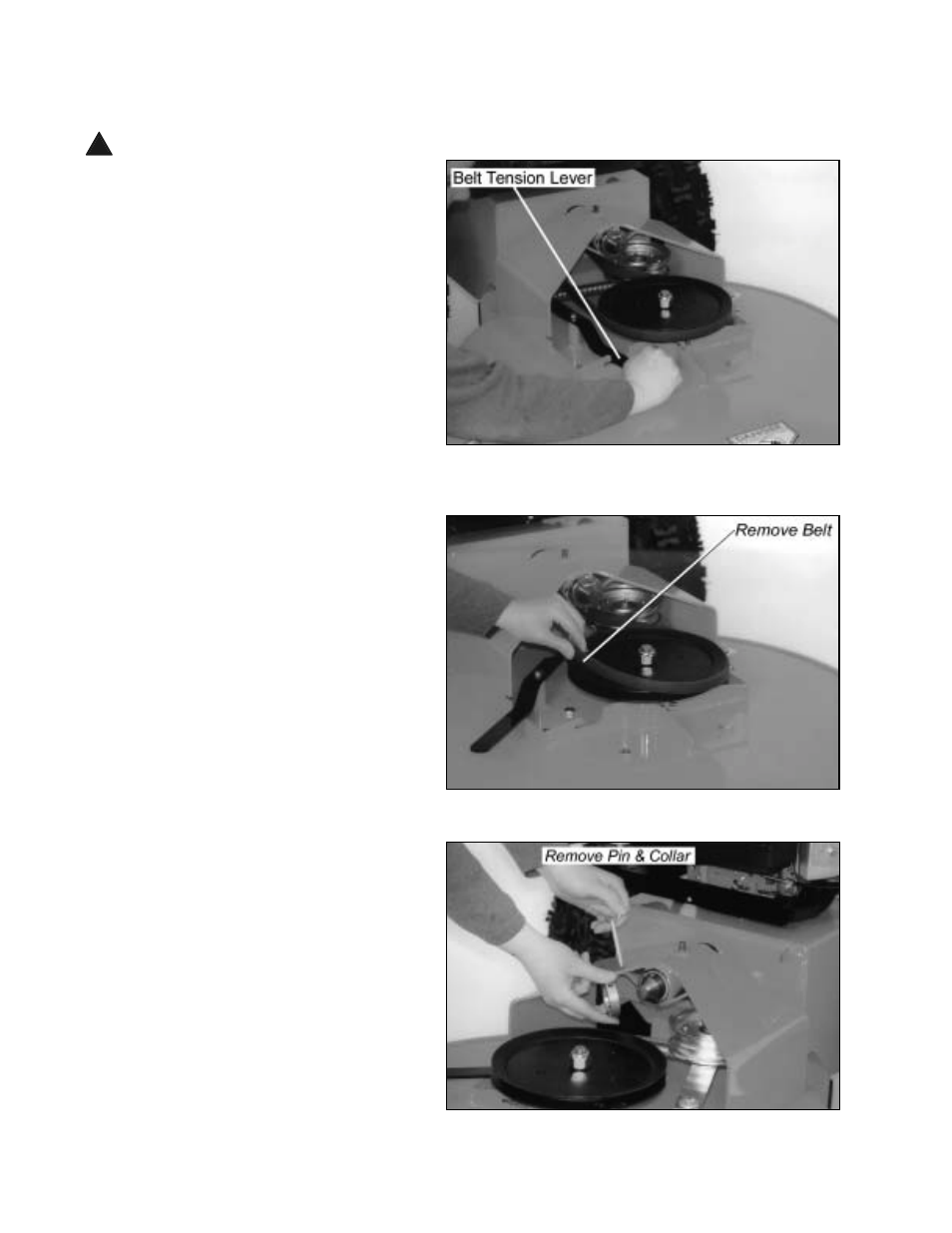

Figure 22

Figure 23

Figure 24
