Chapter 2 Hardware Installation
Chapter 2
Graphics Interfaces

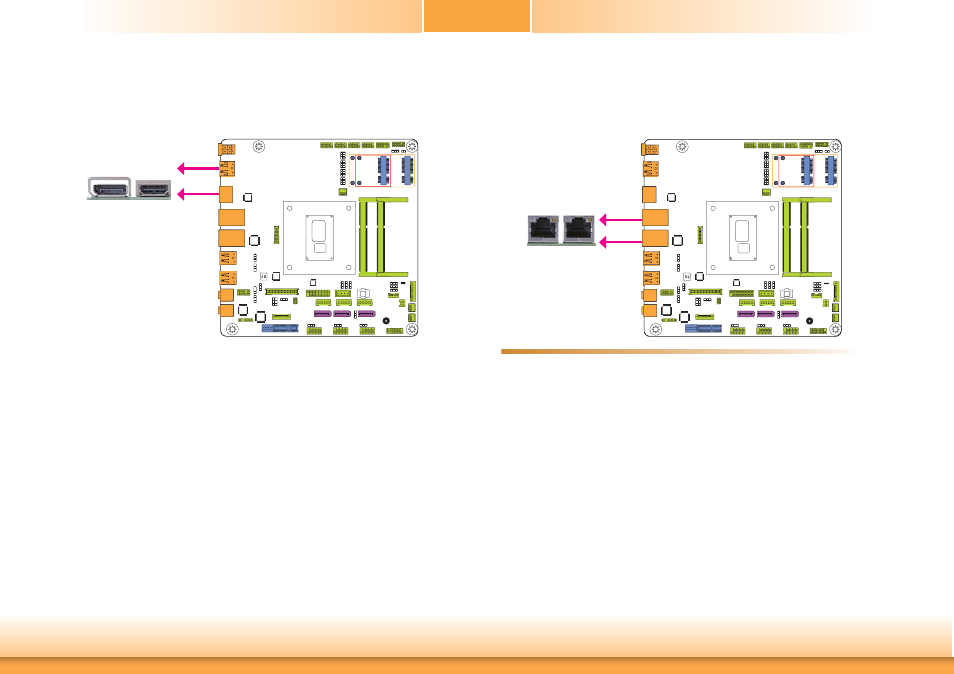

The display ports consist of the following:
• 1 DP port
• 1 HDMI port
HDMI Port
The HDMI port which carries both digital audio and video signals is used to connect a LCD
monitor or digital TV that has the HDMI port.
DP Port
The DP port is a digital display interface used to connect a display device such as a computer
monitor. It is used to transmit audio and video simultaneously. The interface, which is devel-
oped by VESA, delivers higher performance features than any other digital interface.
Driver Installation
Install the graphics driver. Refer to chapter 4 for more information.
RJ45 LAN Ports
Features
• Intel ® I210 PCI Express Gigabit Ethernet controller
• Intel ® I218 with iAMT9.5 Gigabit Ethernet Phy
The LAN ports allow the system board to connect to a local area network by means of a net-
work hub.
BIOS Setting
Configure the onboard LAN in the Chipset menu (“PCH-IO Configuration” submenu) of the
BIOS. Refer to chapter 3 for more information.
Driver Installation
Install the LAN drivers. Refer to chapter 4 for more information.
LAN 2
LAN 1
DP HDMI
DP
HDMI
LAN 1 LAN 2
