Chapter 2 Hardware Installation
Chapter 2

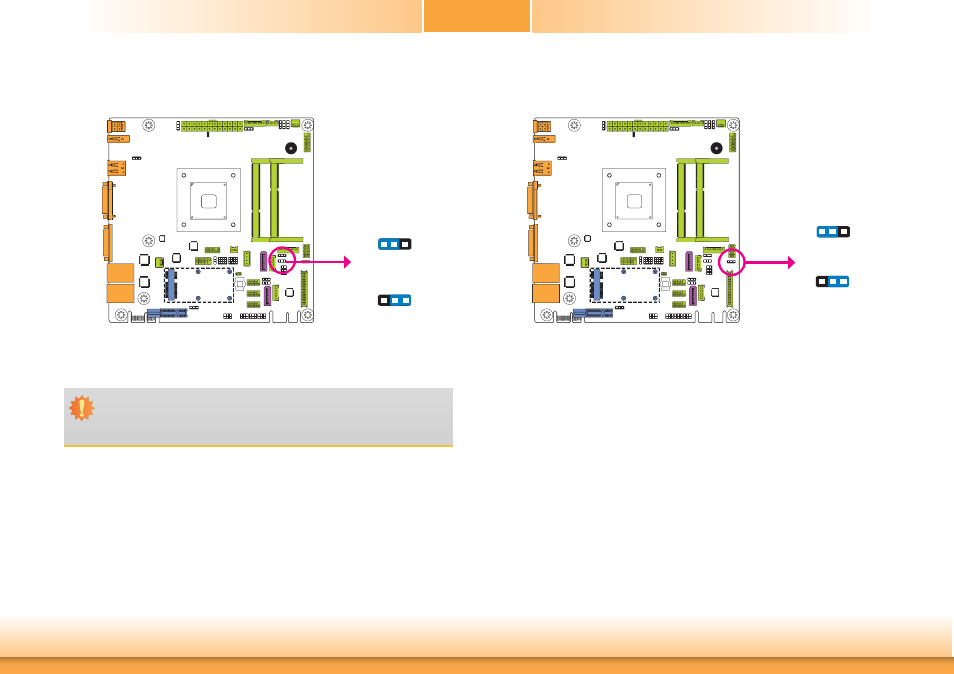

Backlight Power Select
1
3
2
1
3
2
1-2 On: +5V
2-3 On: +3.3V (default)
JP16 is used to select the power level of backlight brightness control: +5V or +3.3V.
Important:
Before powering-on the system, make sure that the power settings of JP16 match the
power specification of backlight control. Selecting the incorrect voltage will seriously
damage the backlight.
JP16
LCD/Inverter Power Select
2-3 On: +5V (default)
1-2 On: +12V
1
3
2
1
3
2
JP21 is used to select the power level of the LCD/inverter power connector.
JP21
