Chapter 2 – DFI BT253 User Manual
Page 21
www.dfi .com
21
Chapter 2 Hardware Installation
Chapter 2

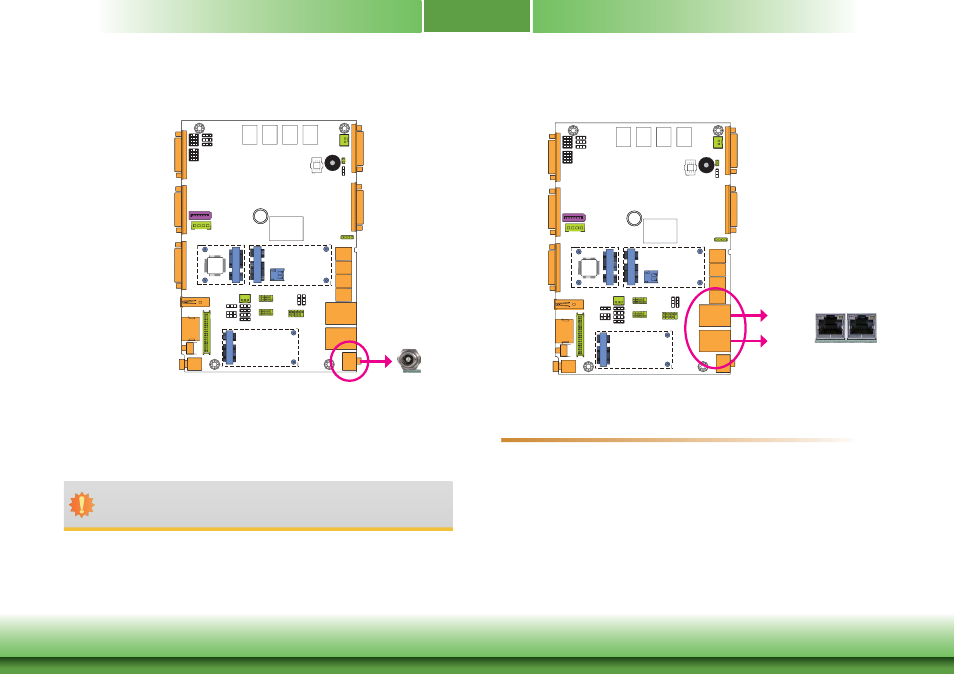

9~36V DC-in
3
This jack provides maximum of 120W power and is considered a low power solution. Connect
a DC power cord to this jack. Use a power adapter within 9~36V DC output voltage. Using a
voltage out of the range 9~36V may fail to boot the system or cause damage to the system
board.
DC-in
RJ45 LAN Ports
LAN 1
LAN 2
Features
• 2
Intel
®
I210 PCI Express Gigabit Ethernet controllers
The LAN ports allow the system board to connect to a local area network by means of a net-
work hub.
Driver Installation
Install the LAN drivers. Refer to chapter 4 for more information.
3
Important:
When installing a 3.5” SATA drive or using a LCD panel supporting 12V DC output
voltage, you need to use a power adapter more than 14V. Selecting the incorrect volt-
age will seriously damage the LCD panel.
