Chapter 2 Hardware Installation

Chapter 2

System Memory

Features

• 2GB/4GB DDR3L ECC memory down (-E45/-E27/-E26/-E25/-E15)

2GB/4GB DDR3L memory down (-J00/-N30/-N07)

• Supports DDR3L 1333MHz (-E45/-E27/-J00/-N30/-N07)

Supports DDR3L 1066MHz (-E26/-E25/-E15)

• Supports single channel memory interface

Important:

Electrostatic discharge (ESD) can damage your board, processor, disk drives, add-in

boards, and other components. Perform installation procedures at an ESD workstation

only. If such a station is not available, you can provide some ESD protection by wear-

ing an antistatic wrist strap and attaching it to a metal part of the system chassis. If

a wrist strap is unavailable, establish and maintain contact with the system chassis

throughout any procedures requiring ESD protection.

Important:

When the Standby Power LED lights red, it indicates that there is power on the

system board. Power-off the PC then unplug the power cord prior to installing any de-

vices. Failure to do so will cause severe damage to the motherboard and components.

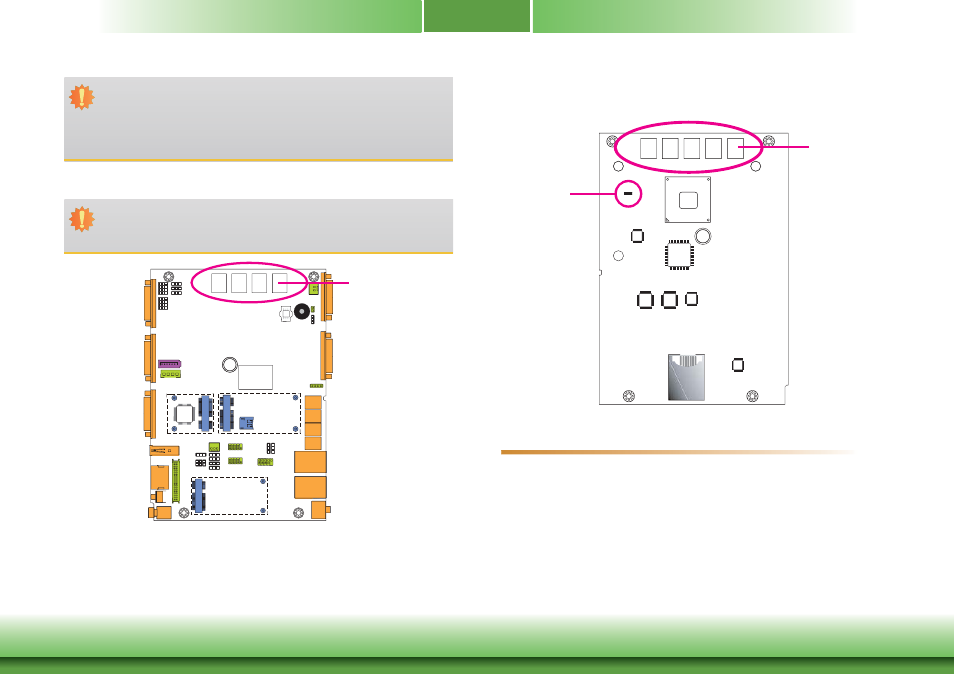

Standby

Power LED

3

DDR3L

DDR3L
