Chapter 3 - Hardware Installation

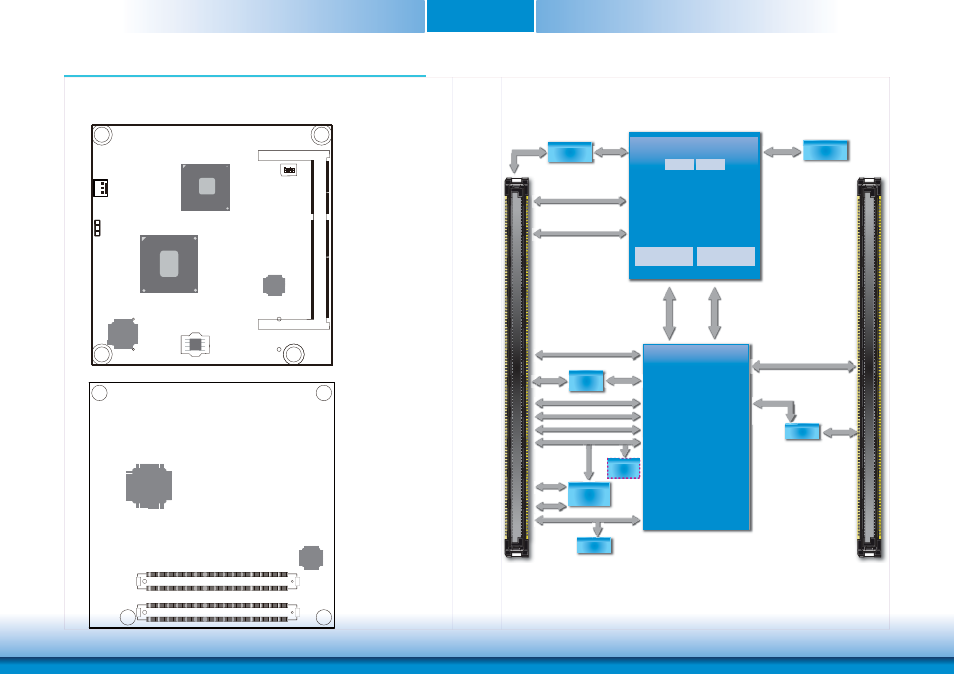

Board Layout
Top View
Bottom View
AMD A55E
Chrontel
CH7511B
Intel
WG82574L
(SW1)
1
ON
4
5
DDR3 SODIMM
AMD
T56N/T40N
1
Power on select (JP1)
CPU Fan
1
SPI Flash BIOS
Block Diagram
COM Express connector
A1 A110
COM Express connector
C1 C110
B1 B110
D1 D110
JMB368
iTE
IT8518E
Intel ®
82574L
TPM
(option)
LVDS
Max 8GB
DDI Port1
SPI Flash
JMB368
AMD ® T40N
Processor
CORE CORE
Graphics
CORE
Memory
Controller
UMI x4 AMD TSI
CH7511B
AMD ® A55E
Express Chipset
EC
ITE8518E
A / B C / D
M 8GB
DDR3
SODIMM
AMD ® T56N
VGA
APU-PCIe Port 0-3
VGA
APU-PCIe Port 0-3
FCH-PCIe Port 0-1 FCH-PCIe Port 0-1
FCH-PCIe
Port 2 GLAN
HDA HDA
SATA 2.0 4x SATA 2.0 4x
USB 2.0 8x USB 2.0 8x
WTD
EC_GPIO
LPC Bus
SPI SPI
PCI
FCH-PCIe Port 3
IDE
