The J-box/signal converter and J-box/modem look very similar. The connection from the J-
box to the server radio is the same in both cases and only the input signal to the J-box will
vary.
Direct Server Installation
Reference Drawings:
System Riser Diagram; QC Outdoor Radio, Gen 2............................... Drawing A-211606
Warning: Cat-5 cable is not recommended in this installation. The distance that
power and signal can travel may vary with the use of Cat-5 cable. If Cat-5 cable is
pulled, use one pair for the ground (pin 6) and one pair for the power (pin 1). Do not
place Cat-5 cable in this application next to Ethernet communication cables or
signal loss may occur.
Install the J-box /signal converter near the control computer. Mount the server radio at an
outdoor location in a direct line-of-sight path with the client radio. Route the signal/power
cable between the J-box and the server radio. The maximum distance between the J-box to
the server radio is 1000 feet (300 m). Refer to the system riser Drawing A-211606, and Figure
8 for more information.

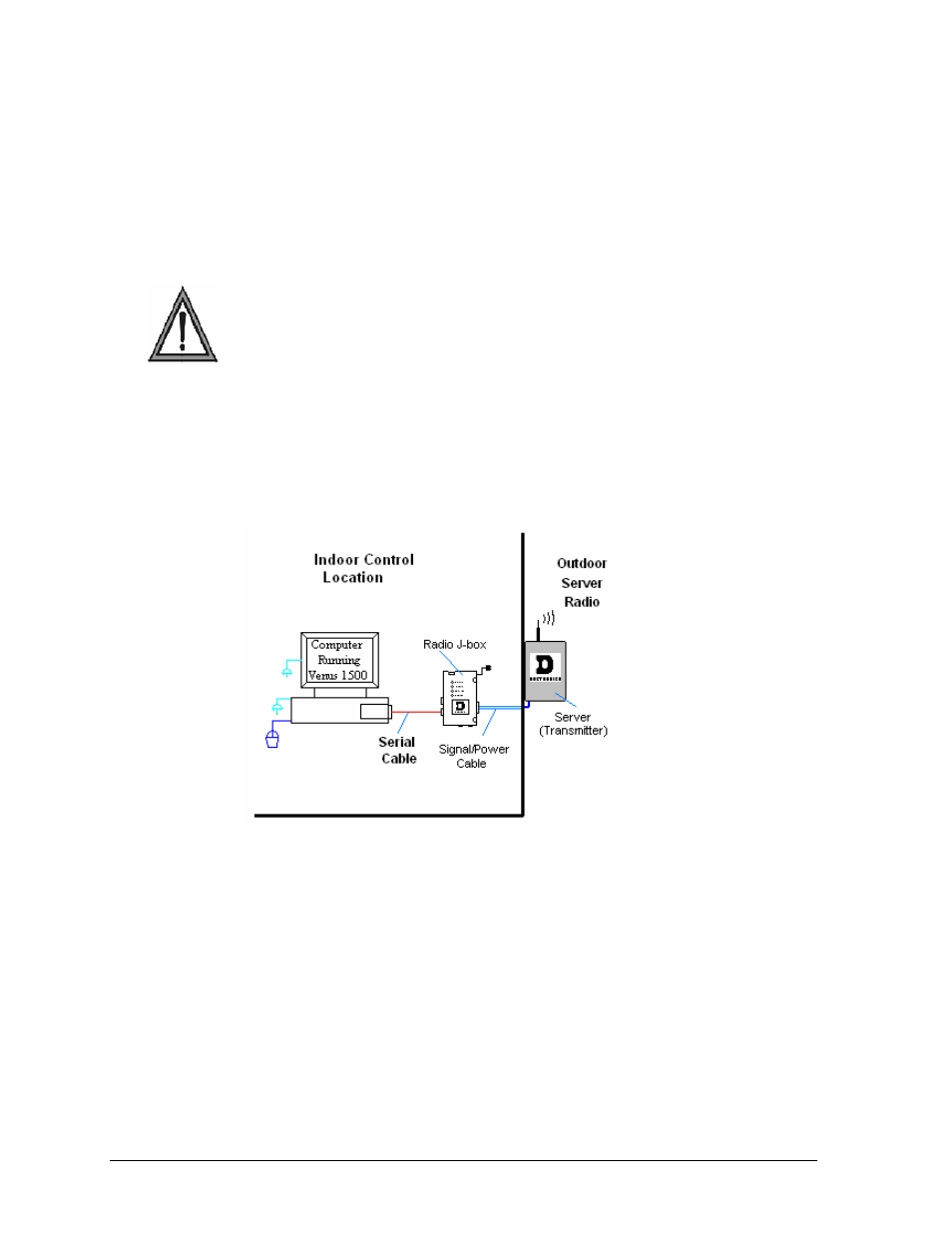

Figure 8: Server Radio Installation
The following directions are provided for connecting from the computer to the server radio:
1.
Plug the serial cable’s 9-pin male connector into the J-box at the jack labeled “DB9
Female V1500 PC Connect”. Plug the 9-pin female connector into the RS-232 COM
port on the computer.
2.
Plug the J-box/signal converter’s power adaptor into a 120 VAC grounded outlet.
3. Plug the jack into the J-box at the port labeled 12V power IN.
4.
Connect the power/signal cables as follows:
• Run the 6-conductor, 18 AWG stranded cable from the J-box to the server radio.
• Connect the wires at the phoenix plug (labeled RS-422 to Radio) on the J-
box/signal converter.
• Connect the wires to the phoenix plug labeled TB2 (RS422 IN) on the server
radio board. The cable is pinned one-to-one.
Installation Guidelines 10
