Fuelight TM FL-3000 and FL-4500
Petroleum Display Installation Quick Guide Page 2 of 4
DD2238842 Rev 04
26 June 2014
PO Box 5128 201 Daktronics Drive, Brookings, SD 57006-5128
tel: 800-325-8766 fax: 605-697-4700
www.daktronics.com
4. Place the drain wire of the line-to-line cable on
the upper-left stud that holds the driver in place,
as shown in
Figure 6.
5. Place the 6-32 nut on the stud and tighten it with
a 5 /
16
” nut driver, as shown in Figure 7.
6. Route the provided line-to-line cable from the
host driver jack J9 to the next client display
driver, connecting to jack J10, as shown in
Figure
8.
7. Run cable through the knockouts located on
the display’s backsheet and be sure to use the
provided cable bushings that snap into place.
8. Repeat until
all displays are
connected.
Note: Do not connect
the last display
driver back to the
host.
Important Notes:
• Route cables at
least 6 inches away
from interfering
sources like ballasts,
florescent light bulbs,
power sources, any
type of motor, etc.
• Pull excess cable into
the display cabinet,
coil cable, zip tie it
together and carefully
place coil inside the
display cabinet.
Additional Information
For additional support information or communications installation information, visit www.daktronics.com/support.

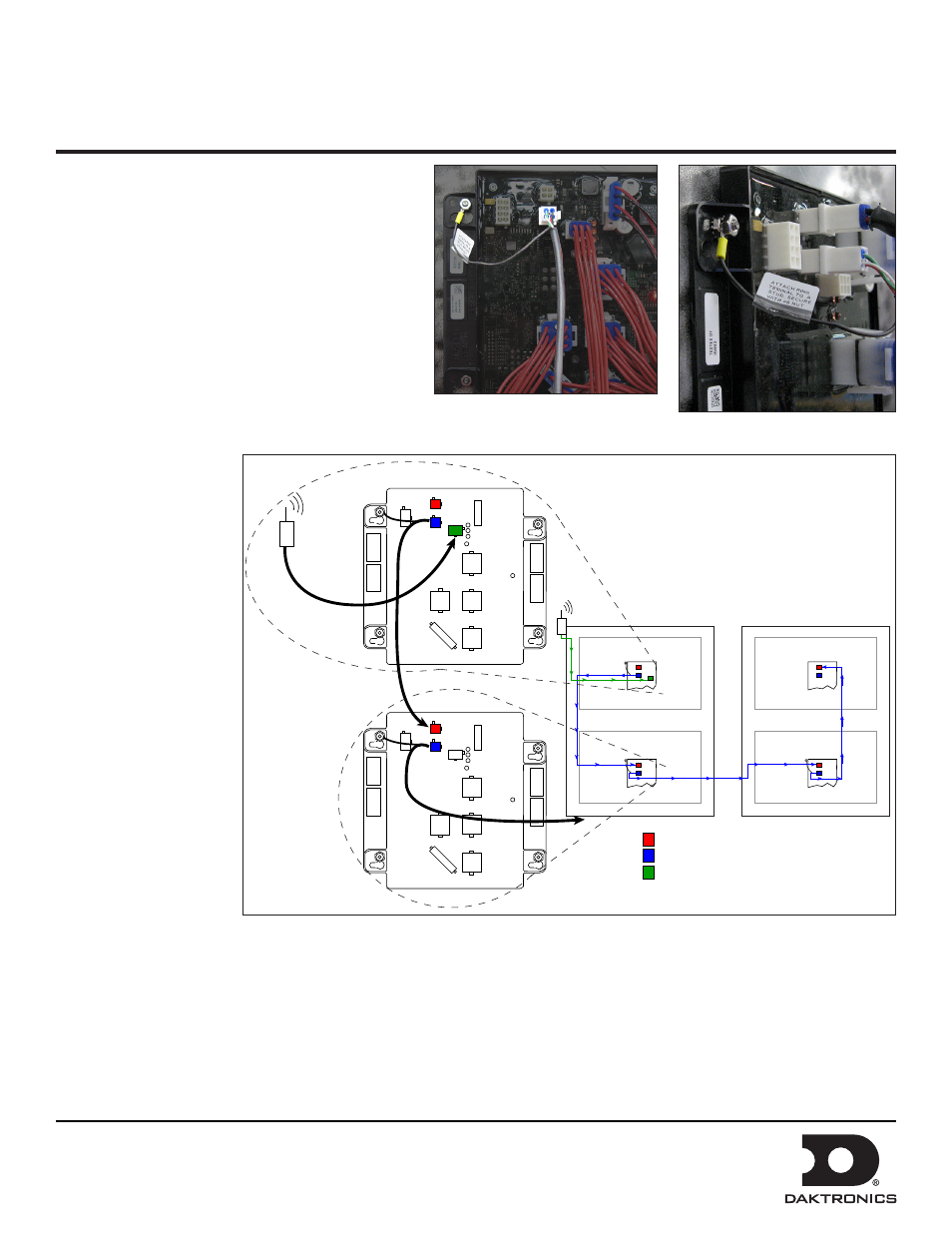

Figure 6: Installed Line-to-Line
Cable with Drain Wire
Figure 7: Installed Drain Wire
Face 1
Price 1
Price 2
Host Driver - Comm Attached
Face 2
Price 1
Price 2
J10 - Line In
J9 - Line Out
J16 - Comm Port
J10
J9
J16
LINE TO LINE
COMM
PORT
J10
J9
Figure 8: Line-to-Line Cable Installation
