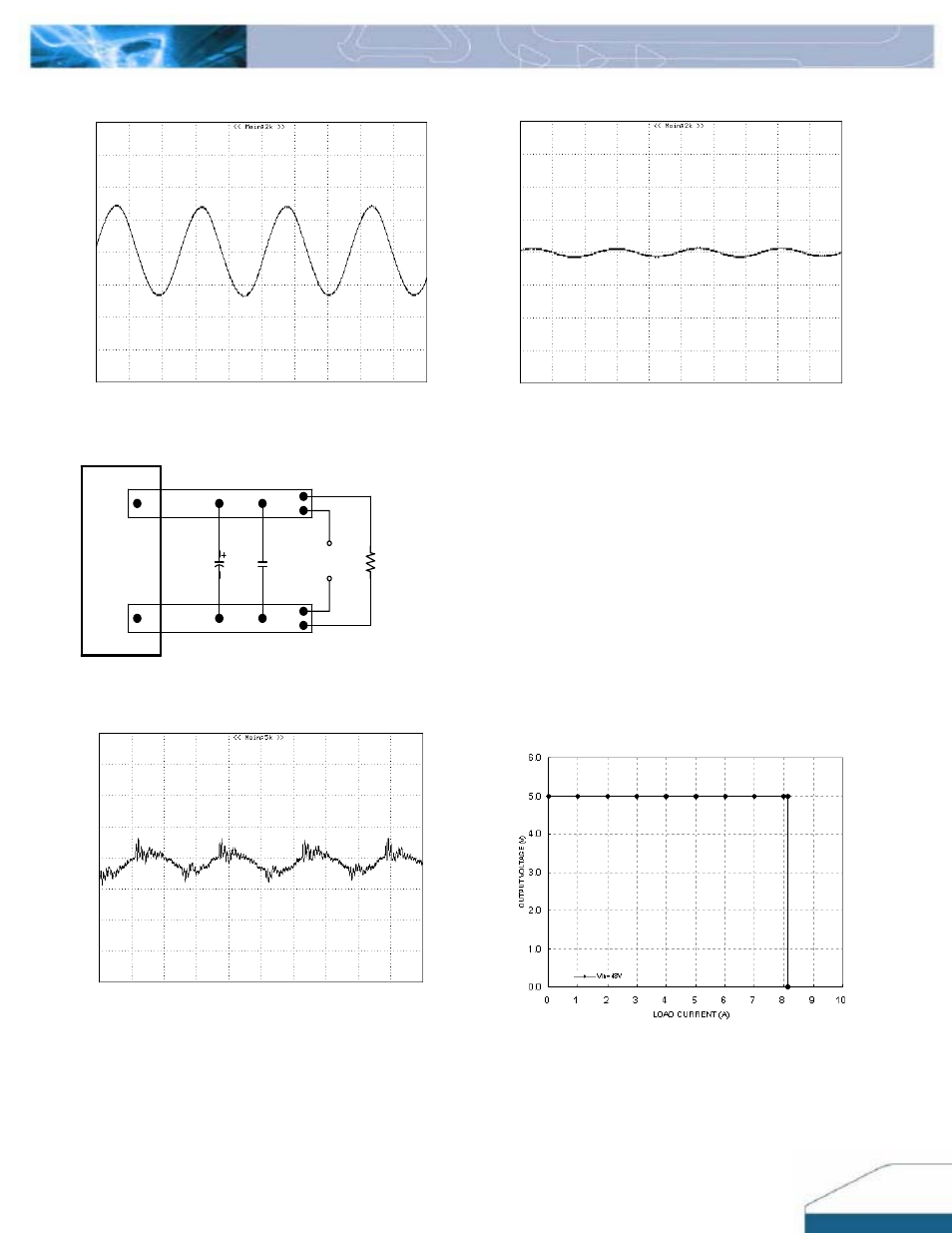

ELECTRICAL CHARACTERISTICS CURVES

Figure 11:

Input Terminal Ripple Current, i

c

, at full rated output

current and nominal input voltage with 12µH source impedance
and 33µF electrolytic capacitor (100mA/div, 1us/div)

Figure

12:

Input reflected ripple current, i

s

, through a 12µH

source inductor at nominal input voltage and rated load current
(20 mA/div, 1us/div)

Strip

Copper

Vo(-)

Vo(+)

10u

1u

SCOPE

RESISTIVE

LOAD

Figure 13:

Output voltage noise and ripple measurement test

setup

Figure 14:

Output voltage ripple at nominal input voltage and

rated load current

(Io=7A)(20 mV/div, 1us/div)

Load capacitance: 1µF ceramic capacitor and 10µF tantalum
capacitor. Bandwidth: 20 MHz. Scope measurements should be
made using a BNC cable (length shorter than 20 inches).
Position the load between 51 mm to 76 mm (2 inches to 3
inches) from the module

Figure

15:

Output voltage vs. load current showing typical

current limit curves and converter shutdown points
