11
Cybex Owner’s Manual

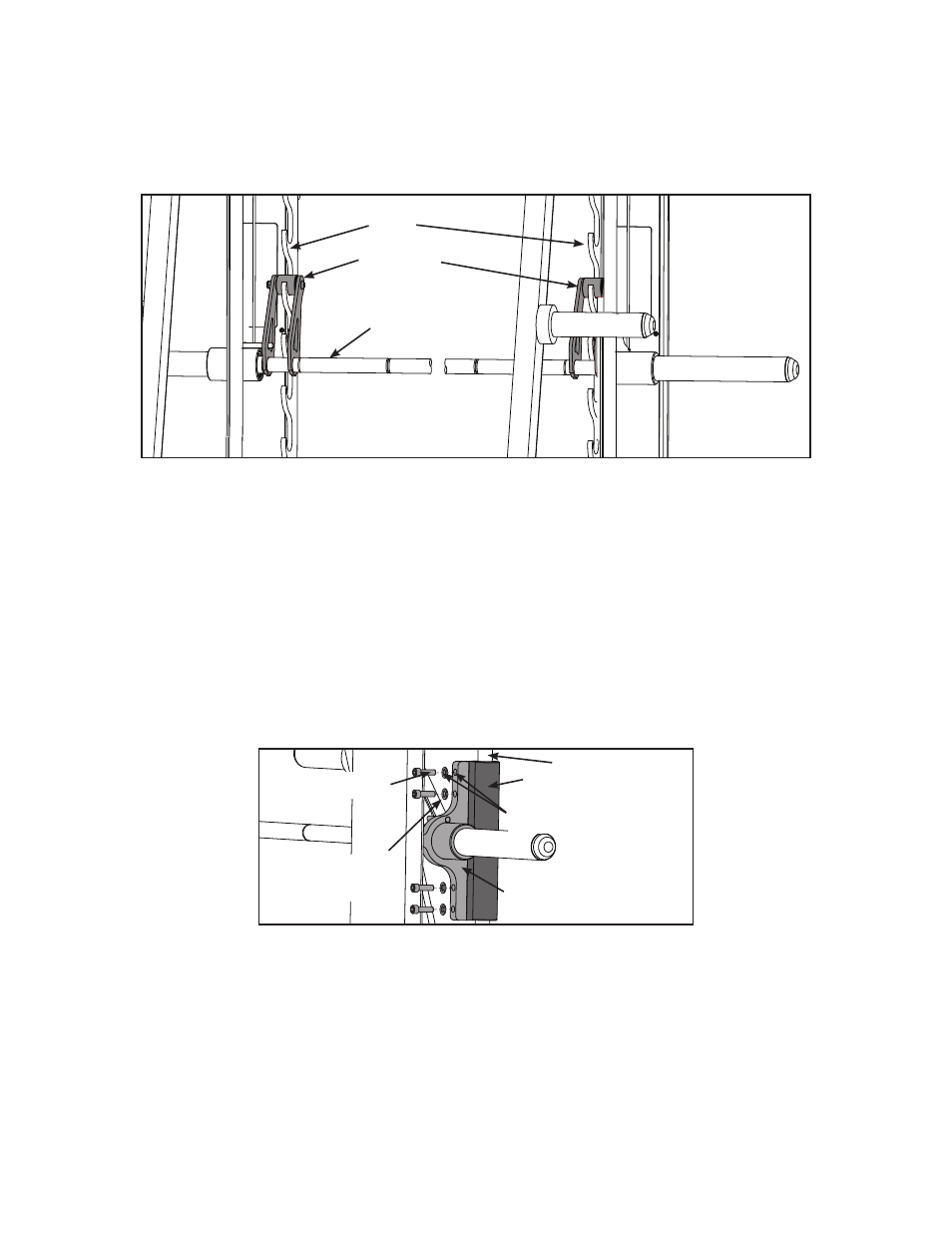

Install weight bar assembly
1. Place weight bar on frame and secure in place by latching catch bar on hooks.
2. Verify each bar catch is hooked properly on the hook.
Hook
Weight Bar
Bar Catch
3. Slide bearing housing up (located at bottom of guide shaft) and align holes with weight bar
bracket.
4. Locate four Socket Head Cap Screws (SHCS), four washers and loctite from shipping
package.
5. Place a small drop of loctite on the four SHCS and in threaded holes of weight bar bracket.
6. Place washer over SHCS.
7. Using a 5/16” Allen wrench tighten the four SHCS securing the weight bar bracket to the
bearing housing.
8. Repeat step 5 for opposite side.
Bearing Housing
Weight Bar Bracket
SHCS (Qty 4)
Loctite
Washers
(Qty 4)
Guide Shaft
Cable installation
1. Place a small amount of loctite into the threaded hole and on the two Hex Head Cap Screws
(HHCS) from shipping package.
2. Attach cable end to weight bar bracket with HHCS using a 7/16” wrench. Cable end must be
attached straight to avoid kink in cable.
