* multimode,
full-duplex
** single-mode,
full-duplex
Specifications
(All other pins are unused.)
Electrical
INPUT DC AC
Voltage: 10 –36 V 24 V ±10%
Power (copper): 4 W 10 VA
Power (fibre): 6 W 13 VA
Frequency: N/A 47
–63 Hz
Environmental
Operating Temp: 0°C to +60°C
Storage Temp: –40°C to +85°C
Humidity: 10 –95%, non-condensing
DIN-rail Mounting TS-35
Shipping Weight 1 lb (0.45 kg)
Regulatory Compliance
CE Mark; EN55022; EN55024
CFR 47, Part 15, Class A
UL508
— Industrial Control Equipment
For use in Class 2 circuits
Functional
Compliance: ANSI/IEEE 802.3
Copper Fibre
Data Rates: 10/100 Mbps 100 Mbps
Signalling: 10BASE-T 100BASE-FX
100BASE-TX
Connectors: RJ-45 (shielded) SC or ST
Segment 100 m 2 km*
Length (max): 15 km**
LED Indicators
Power green
Status green
Ports yellow/green
Duplex green
RJ-45 Connector Pin Assignments
Pin Function
1 TD+
2 TD –
3 RD+
6 RD –

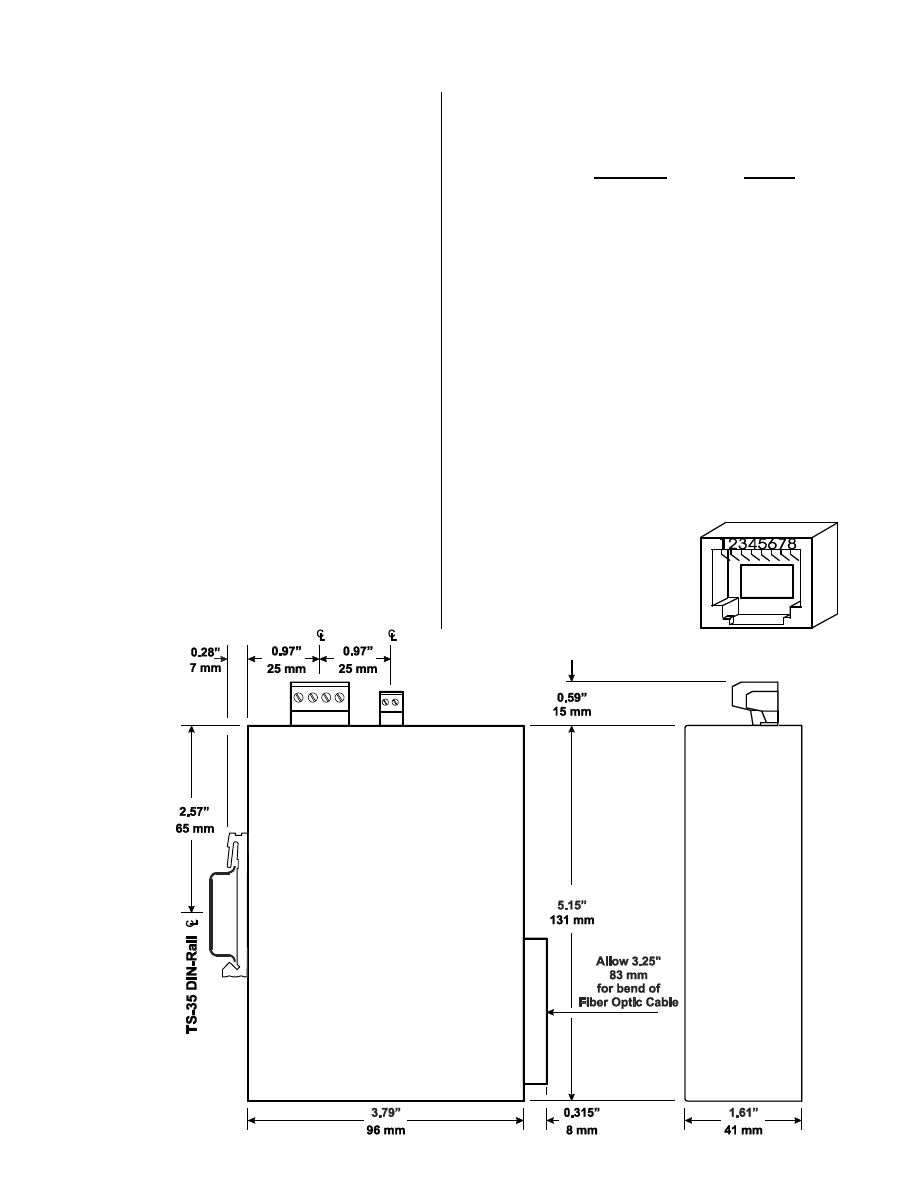

Mechanical
