Desktop Docking Station

SIRIUS Echo Signal Repeater System

Echo Antenna Installation

1 Connect the antenna cable from the Echo An-

tenna to the SIRIUS radio or home dock.

2 Raise the black plastic antenna to an upright

vertical position, so that it is pointing straight

up.

3 Turn on the SIRIUS radio. Ensure that the

‘POWER” LED on the front of the Echo Antenna

is lit up.

This completes the Echo Antenna installation.

SIR-WRR1

TW-5004

REPEATER

Directed Electronics

01-30-2007

SIR-WRR1: TW-5003

TRANSMITTER

Directed Electronics

01-30-2007

6,*1$/

32:(5 $17(11$

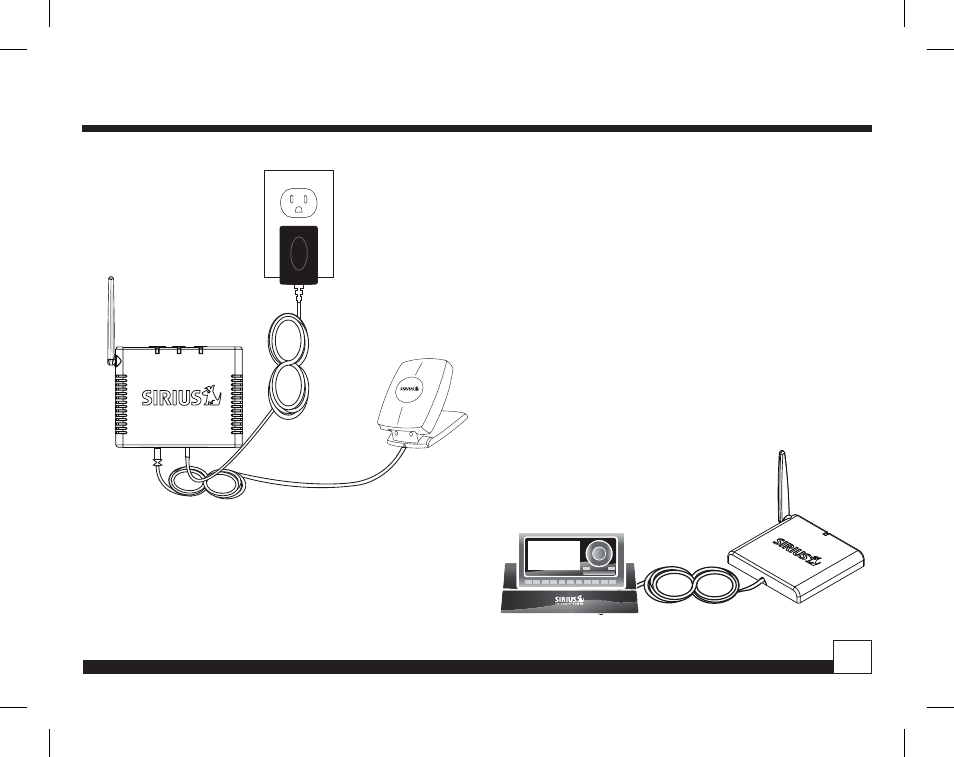

Echo Transmitter connected to SIRIUS home

antenna and AC Adapter

Echo Antenna connected to

SIRIUS Radio
