12
Echo Antenna
The Echo Antenna connects to a SIRIUS radio or the
SIRIUS radio dock and receives the wireless signal
from the Echo Transmitter. It can be placed on a flat
surface or wall mounted vertically using two screws
and the mounting slots on the base of the unit.
The Echo Antenna comes with a 4 feet cable with
which it connects to the SIRIUS radio. It has a green
LED on the front, labeled "POWER". It also has a
black plastic antenna on the side that can swivel up
and down.
The “POWER” LED lights up when the unit is prop-
erly connected to the SIRIUS radio and the SIRIUS
radio itself is turned on. For proper operation of the
Echo Antenna, this LED needs to be lit up. The black
plastic antenna on the side needs to be swiveled up
in an upright vertical position, so that it is pointing
straight up, regardless if the unit is placed on a flat
surface or mounted to a wall.
SIR-WRR1
TW-5004
REPEATER
Directed Electronics
01-30-2007
SIR-WRR1
TW-5004
REPEATER
Directed Electronics
01-30-2007

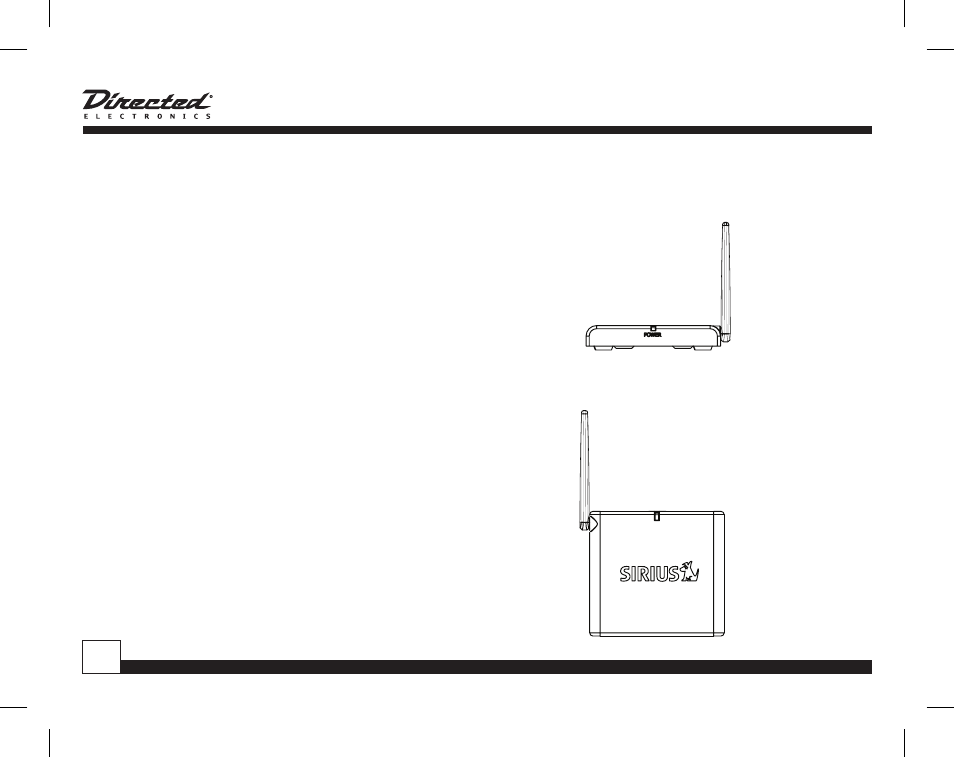

Front View
when placed on flat surface
Front View
when mounted on wall
