SPECIFICATIONS
GENERAL SPECIFICATIONS
OUTPUT SPECIFICATIONS
Input Voltage
36~75V
Voltage Accuracy
Typical ±1.5%
Switching Frequency
Typical 300KHz
Line Regulation
Typical (balance load)
±0.5%
Isolation Voltage
In/Out 1500V
Load & Cross Regulation
Typical (balance load)
±1%
Isolation Capacitance Typical 2000
pF
Ripple & Noise
Typical 50
mV
Isolation Resistance
Minimum 10M
Ohms
Current Limits
Typical 135%
MTBF
Bellcore 1.17M
hours
Over Voltage
Typical
130%
OTP
Typical 130°C
Voltage Trim
+10%,
-10%
Size
(2.28”Ч1.45”Ч0.33”) 57.9x36.8x8.5mm
PART NUMBERING SYSTEM
Q
48
D
B
120
03
N
R
F
A
Type of
Product
Input
Voltage
Number of
Outputs
Product
Series
Output
Voltage
Output
Current
ON/OFF
Logic
Pin Length
Option Code
Q - Quarter
Brick
48V
D – Dual
Output
B – Bipolar
output
120 - 12V
03-2.7A
N- Negative
P- Positive
R- 0.150”
N- 0.145”
K- 0.110”
F- RoHS 6/6
(Lead Free)
A- Standard
Functions
MODEL LIST
MODEL NAME
INPUT
OUTPUT
Efficiency @ Full Load
Q48DB12003NRFA 36V~75V
2.4A
± 12V
2.7A 90%

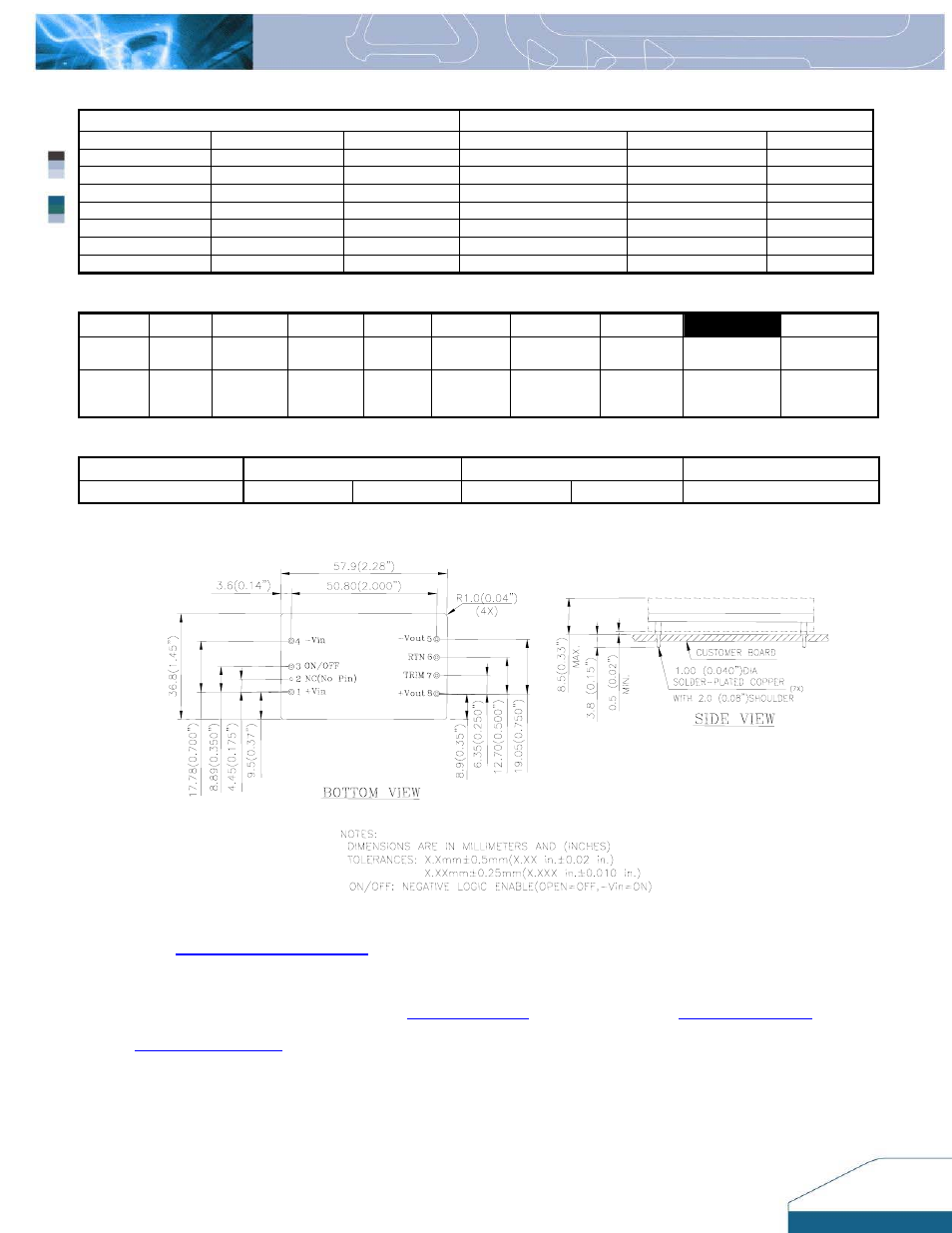

MECHANICAL DRAWING
