Fig. 8.4
A
B
Fig. 8.5
Triple ring burner

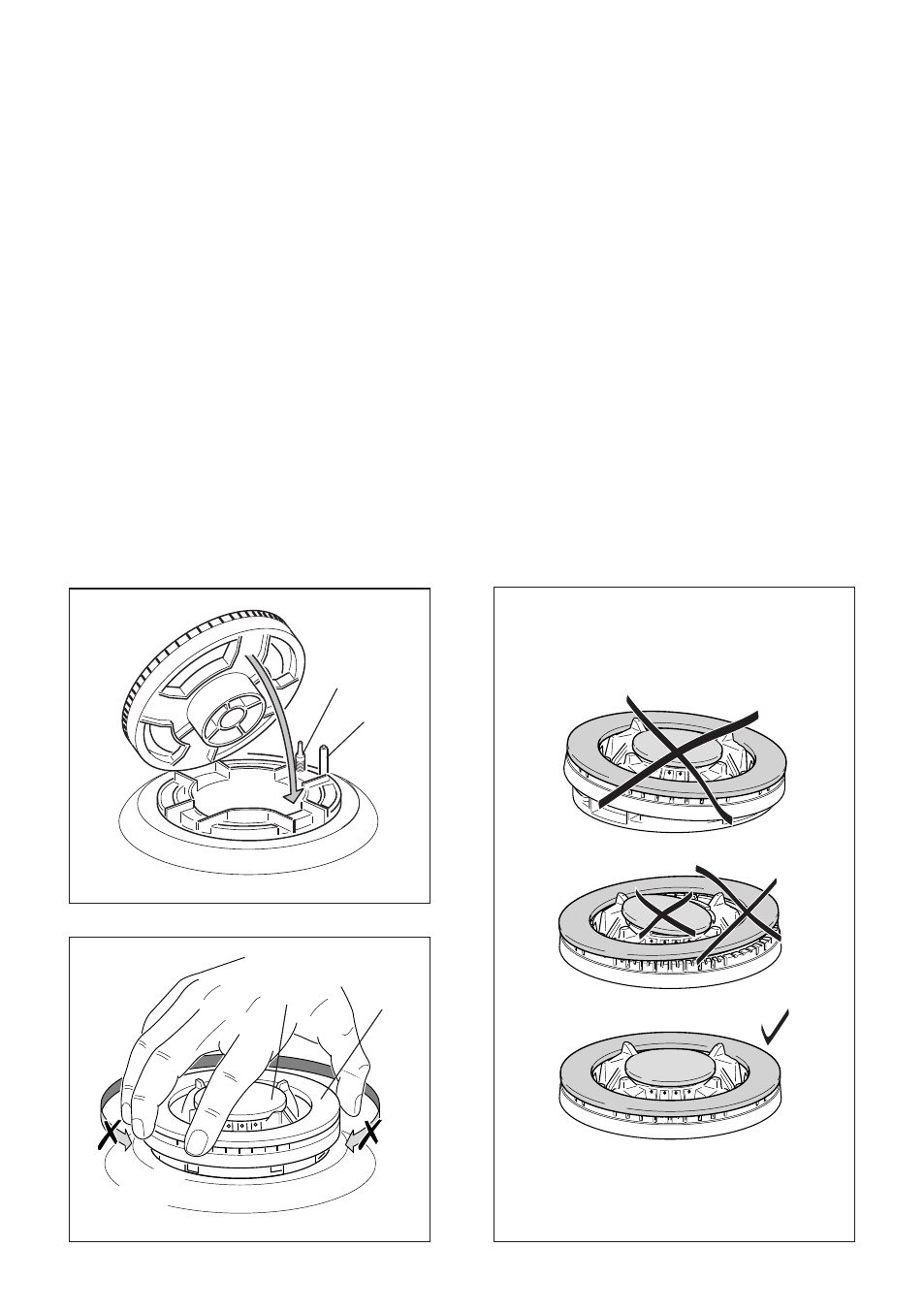

The triple ring burner must be correctly positioned (see fig. 8.5); the burner rib must
be enter in their logement as shown by the arrow see fig. 8.3).
Then position the cap A and the ring B (figs. 8.4 - 8.5).
The burner correctly positioned must not rotate (fig. 8.4).
S
T
Fig. 8.3
