LB-HDMI/DE User’s Manual
Link Bridge TM HDMI Audio De-embedder System
Broadata Technical Support, [email protected] 9
3.0 STAND-ALONE BOX ENCLOSURE
For the LB-HDMI/DE, besides the chassis mount version, it does come
in a white plastic stand-alone box enclosure. The connectors, switches
and functions are all the same but it does come with its own 5VDC
power supply. All other functionality is as described in Sections 1.0 and
2.0 of this manual are indentical. Figure 2 below shows the Stand-alone
box enclosure.

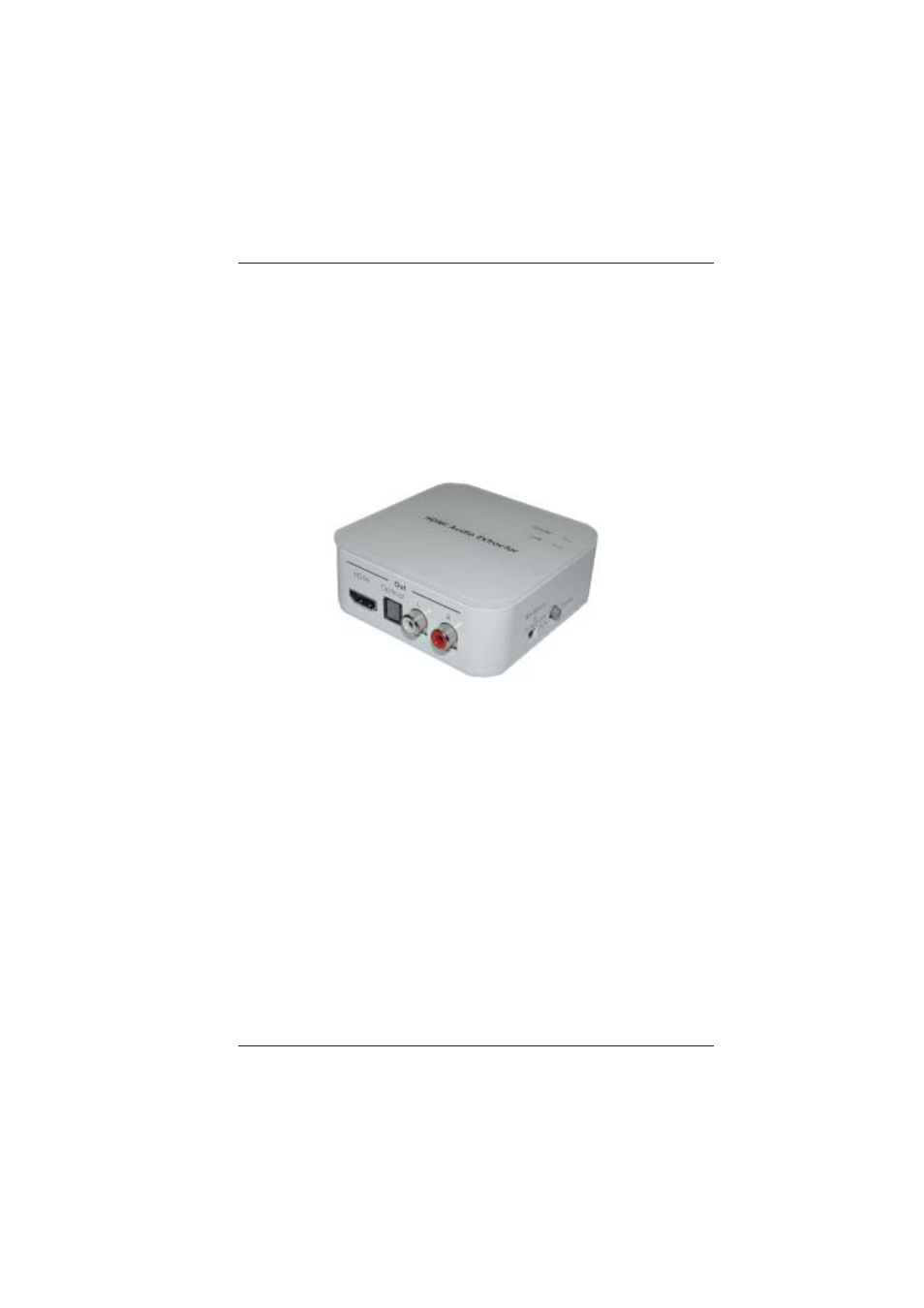

Figure 2-1
LB-HDMI/DE optional stand-alone box enclosure.
