LB-HDMI/DE User’s Manual
Link Bridge
TM HDMI Audio De-embedder System
Broadata Technical Support, (800) 214-0222 8

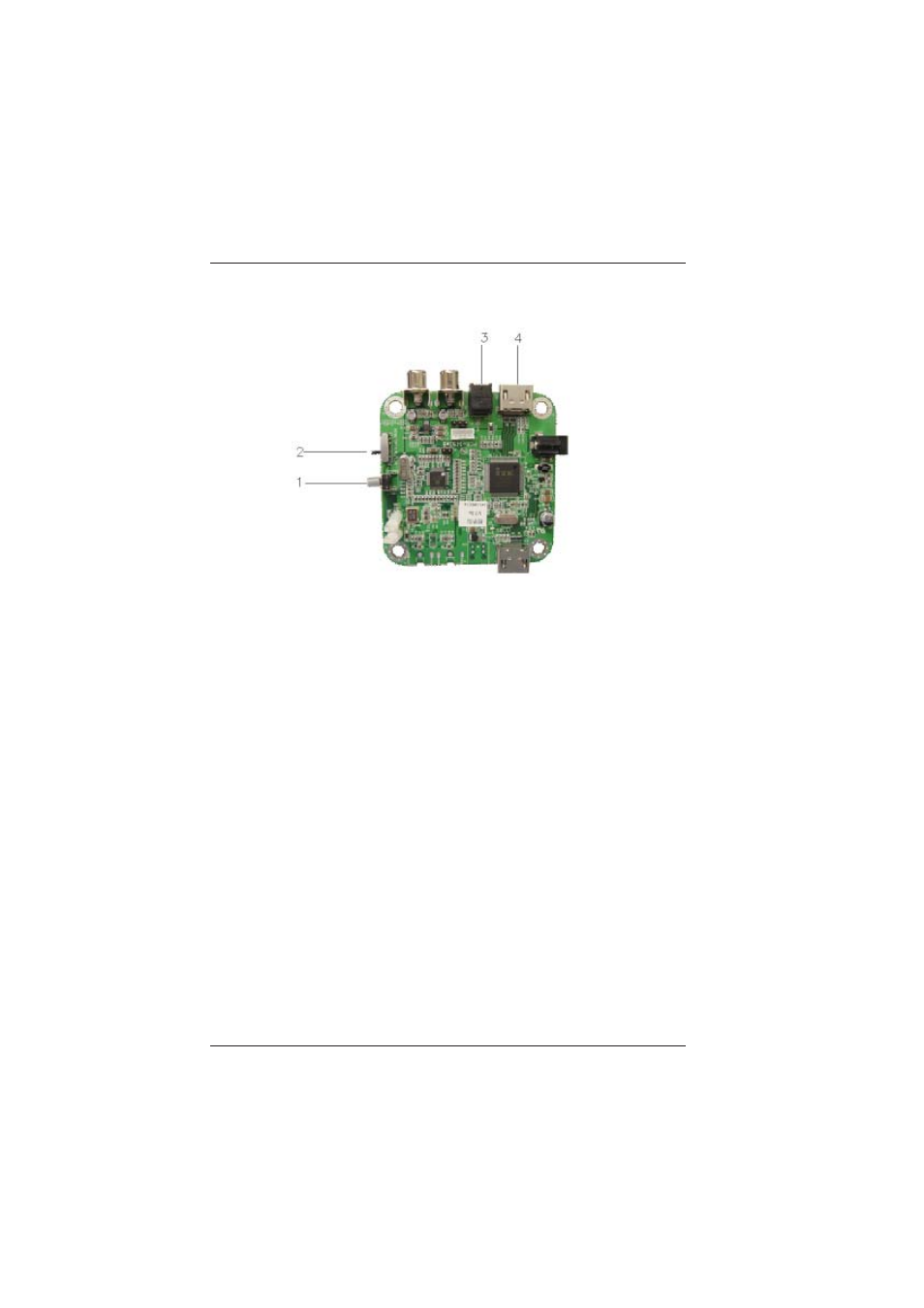

2.2 Circuit Board
1. Power: Switches the unit ON or puts the device into standby
mode.
2. TV/Bitstream/2CH LPCM: This switch allows users to select
the source’s audio EDID.
TV Mode: Switch to TV mode for the HDMI source to output
audio per the EDID of connected TV or AV receiver, supports up
to LPCM 7.1 channels.
Bitstream Mode: Switch to Bitstream mode for the HDMI source
to output Bitstream audio per the built-in EDID, supports up to
compressed audio 5.1 channels.
2CH LPCM Mode: Switch to 2CH LPCM mode for the HDMI
source to output LPCM 2 channels audio per the built-in EDID.
3. Optical Out: Connect to audio equipment such as an amplifier
or Hi-Fi system with an optical cable for digital audio output.
Supports bit-stream up to audio 5.1CH and LPCM 2CH.
4. HDMI Out: Connect to the display with an HDMI cable for video
and audio signal output. No HDMI output connection is required
to send audio through the analog and optical outputs.
