BCI LBS-08x08 User’s Manual
Link Bridge TM Universal 8x8 Optical/DVI/HDMI Matrix Switch
Broadata Technical Support, [email protected] 7
5 LOCK: Press this button to lock all the function buttons on
panel. To unlock, press and hold lock button for 4 seconds.
6 UNDO: Press this button to return back/exit the current
selection.
7 RECALL: Press this button to recall from the saving settings of
1~10.
8 ENTER: Press this button every time to confirm the setting or
the selection.

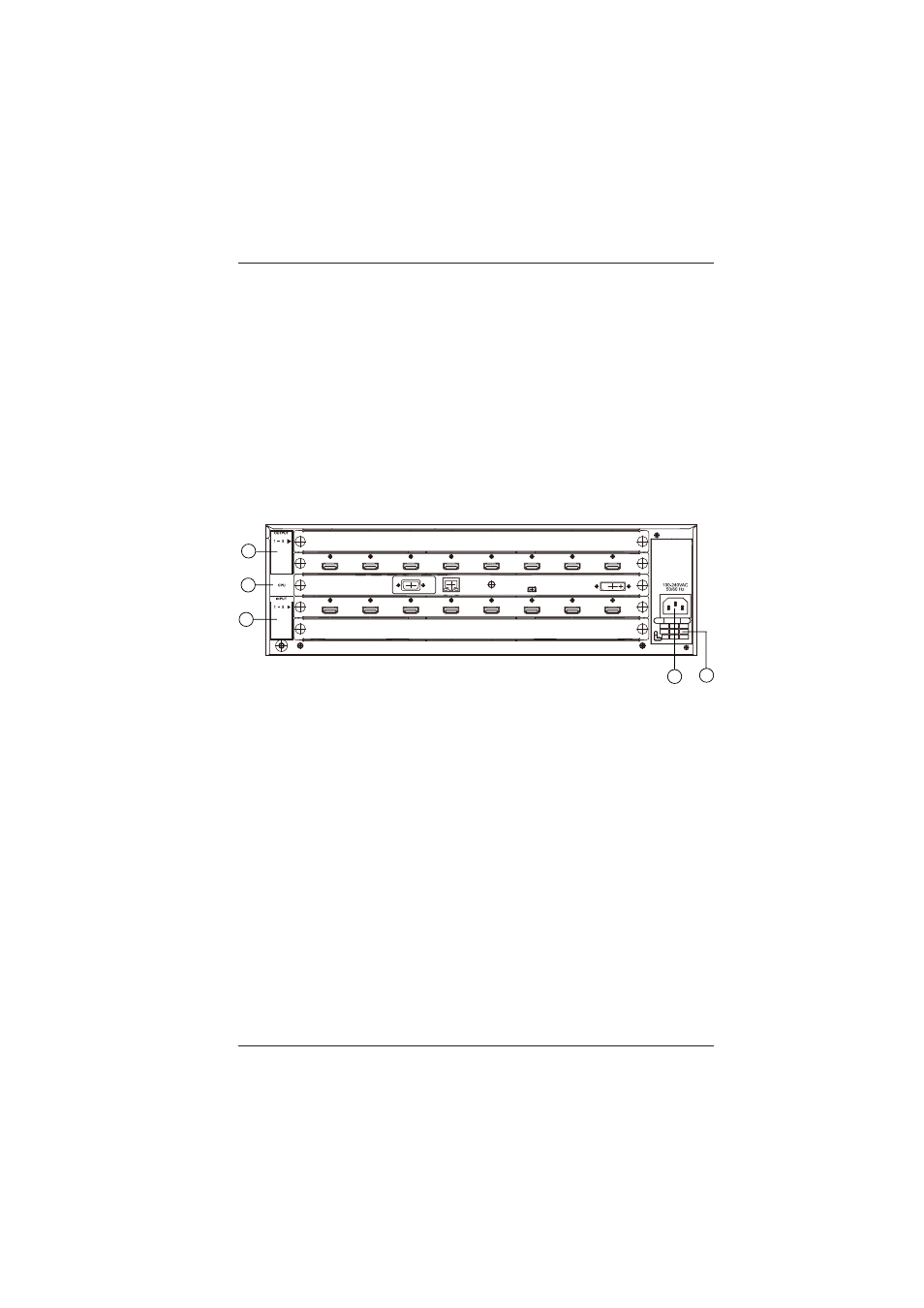

2.2 Rear Panel
1 OUTPUT 1~8: Connect HD/3D display TV/monitor with HDMI
cables up to 8 displays.
2 CPU
a. USB: This port is reserved for firmware update
only.
b. IR IN: Reserved.
c. ETHERNET: Connect to an active network line for LAN
and Telnet/Web GUI control.
d. RS-232: Connect with D-Sub 9-pin cable from the
PC/Control device for RS-232 control over the LBS-0808.
3 INPUT 1~8: Connect source equipment such as Blu-ray/PS3
players up to 16 devices with HDMI/optical cable.
4 POWER & POWER Supply: The device will automatically be
placed on stand-by mode when the power supply is connected
to AC power.
ETHERNET IR IN USB RS232 OUTPUT 0
1
2
3
4 5
