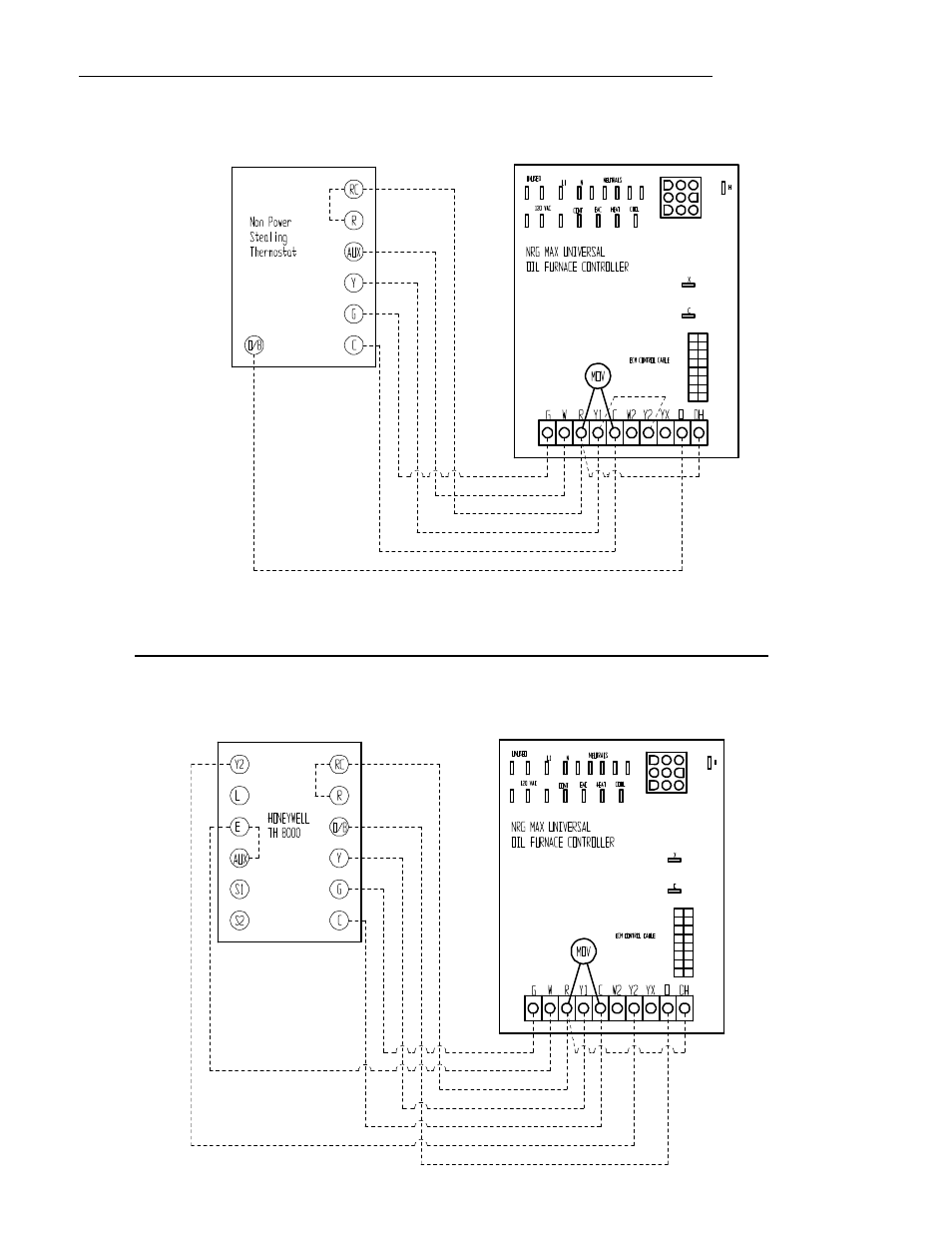

Heat Pump (1) Stage Heat (1) Stage Cool ECM Motor - Furnace Auxiliary Heat
O” Terminal on NRG Max terminal is to be energized on cooling. If thermostat “O/B”
terminal energizes for heating do not connect to NRG Max “O” terminal.
Humidistat breaks on high humidity. Jumper “R”-“DH” if not used.
Heat Pump (2) Stage Heat (2) Stage Cool ECM Motor - Furnace Auxiliary Heat
O” Terminal on NRG Max terminal is to be energized on cooling. If thermostat “O/B”
terminal energizes for heating do not connect to NRG Max “O” terminal
Humidistat breaks on high humidity. Jumper “R”-“DH” if not used.
