13
ASSEMBLY INSTRUCTIONS

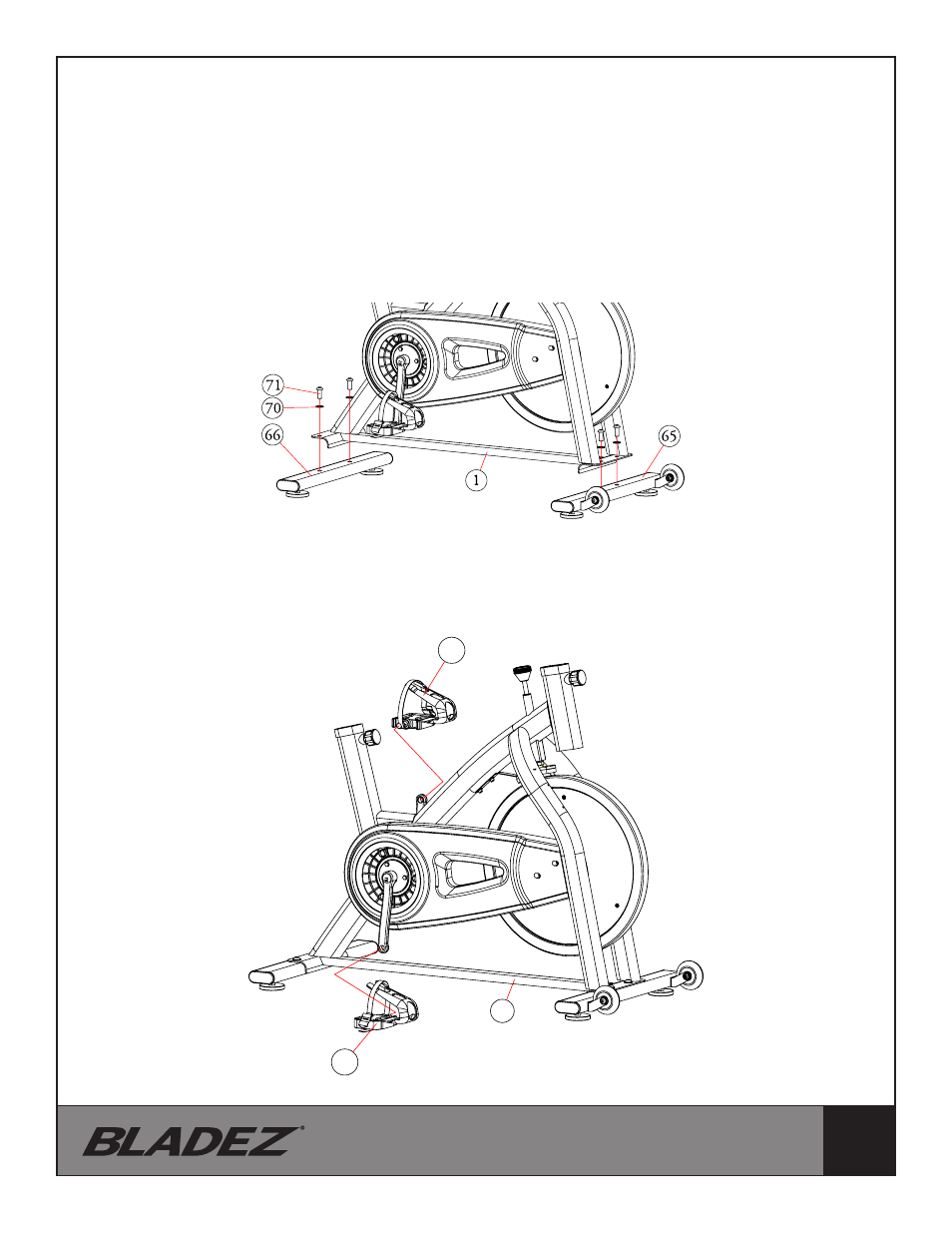

STEP 1: Assemble Front & Rear Stabilizer Bars
Attach Front Stabilizer (65) to main frame (1) and secure it with 2 Hex Bolts (71) and
washers (70). Attach Back Stabilizer (66) to main frame (1) and secure with 2 Hex
Bolts (71) and washers (70).
STEP 2: Install Left/Right Pedals
Thread the Left Pedal (50) onto the left crank arm and tighten clockwise. Thread the
Right Pedal (51) onto the right crank arm and tighten clockwise.
51
1
50
