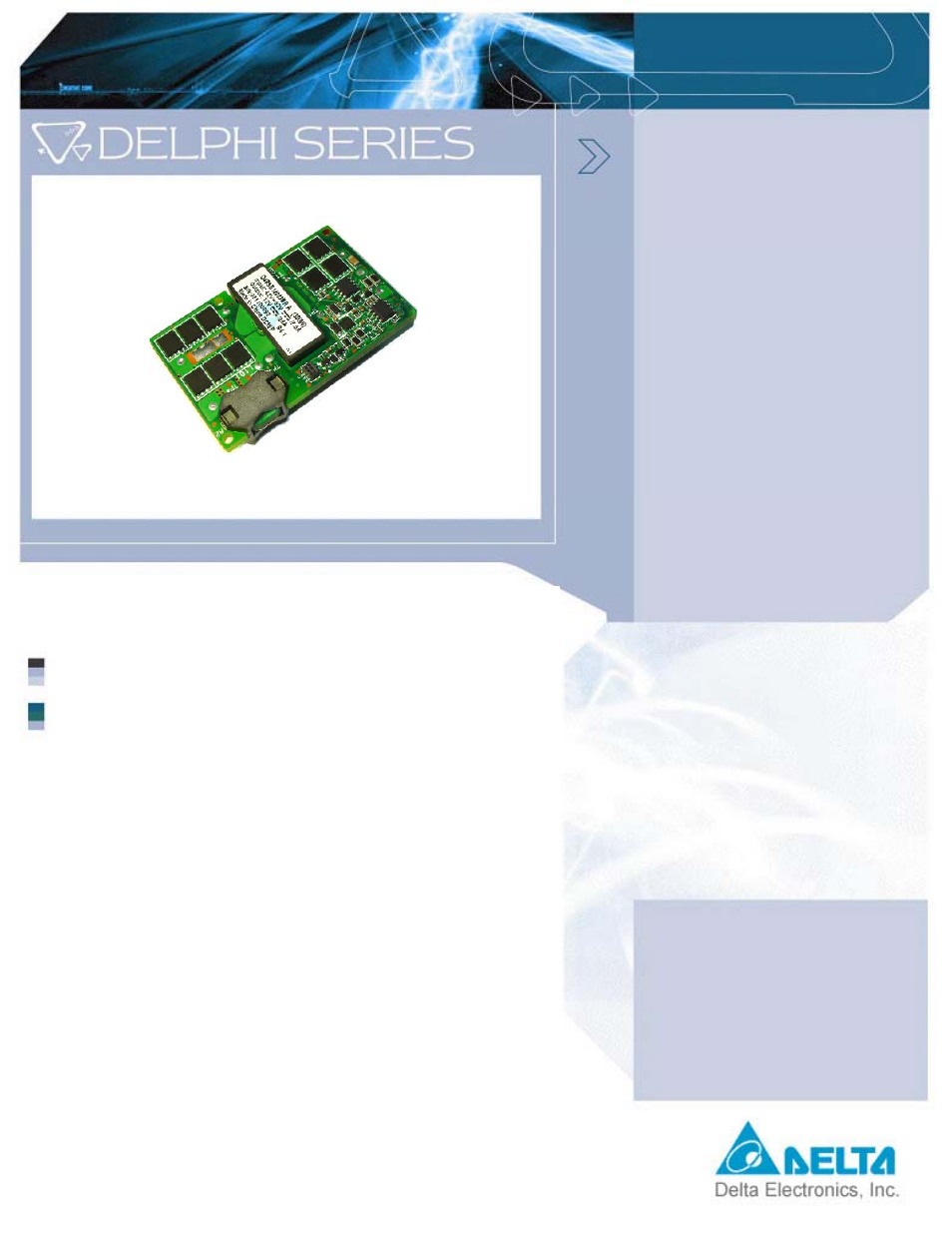

Delphi Series Q48SB, 300W Bus Converter
DC/DC Power Modules: 48V in, 12V/25A out
The Delphi Series Q48SB, 48V input, single output, quarter brick,
300W bus converters are the latest offering from a world leader in
power systems technology and manufacturing -- Delta Electronics,
Inc. This product family supports intermediate bus architectures and
powers multiple downstream non-isolated point-of-load (POL)
converters. The Delphi Series Q48SB operates from a nominal 48V
input and provides up to 300W of power or 28A of output current in
an industry standard quarter brick footprint. The Q48SB product
currently supports two input ranges: the Q48SB120 features an input
voltage range of 42V to 53V and provides an unregulated output of
12V at 20A or 25A. The Q48SB108 features a wider input voltage
range of 36V to 60V and provides an unregulated output of 10.8V at
up to 28A. Typical efficiency for the 12V/25A module is 96%. With
optimized component placement, creative design topology, and
numerous patented technologies, the Q48SB bus converter delivers
outstanding electrical and thermal performance. An optional heatsink
is available for harsh thermal requirements.
FEATURES
High efficiency: 96% @ 12V/20A, 25A
95.5% @ 10.8V/28A
Standard footprint: 57.9x 36.8x 12.7mm
(2.28”x1.45”x0.50”)
Industry standard pin out
Fully protected: UVLO, OTP, OCP, OVP
2250V isolation
Basic insulation
No minimum load required
ISO 9001, TL 9000, ISO 14001, QS 9000,
OHSAS 18001 certified manufacturing
facility
UL/cUL 60950 (US & Canada), and TUV
(EN60950) certified
CE mark meets 73/23/EEC and 93/68/EEC
directives
1
APPLICATIONS
Datacom / Networking
Wireless Networks
Optical Network Equipment
Server and Data Storage
Industrial/Testing Equipment
