5.4 Adjusting the edge guide
The height-adjustable edge guide ensures a precise positioning of the
trousers part in front of the sewing head. The height of the edge guide
can be adjusted depending on the thickness of the material to be
processed.
The draw roll 3 guarantees a precise material feed under the sewing
foot.

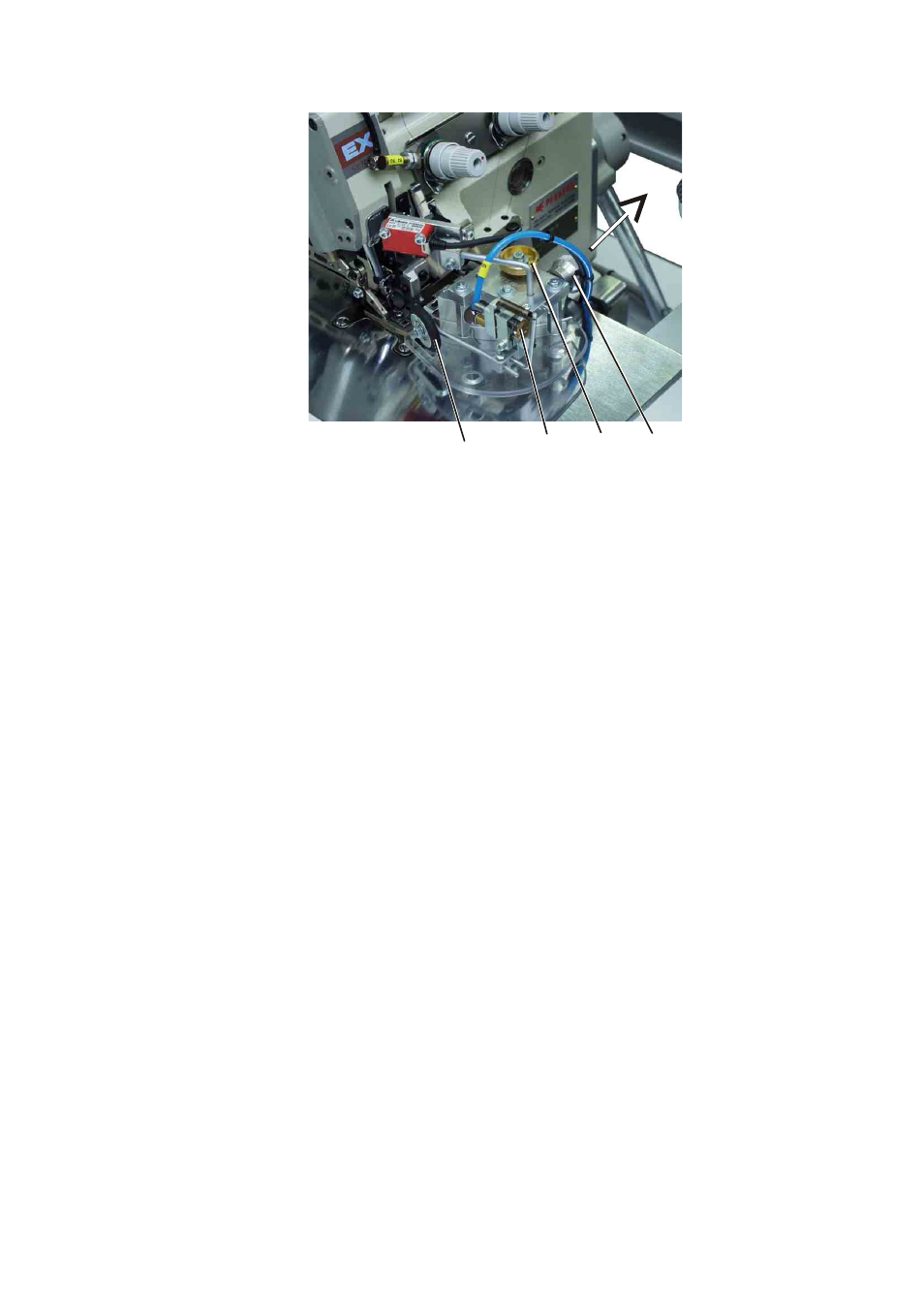

Adjusting the height of the edge guide
–
Draw the dial 1 in the direction of arrow.
– Set the dial 1 to one of the four lock-in positions.
Position 1 = minimum height
Position 4 = maximum height
Fine adjustment of the height of the edge guide
–
Turn the dial 2 correspondingly.
Setting the contact pressure of the roller 4
–
Turn the dial 3 in clockwise direction
the contact pressure of the roller is increased
– Turn the dial 3 counter-clockwise
the contact pressure of the roller is reduced
